24
7 - CLADDING ASSEMBLY

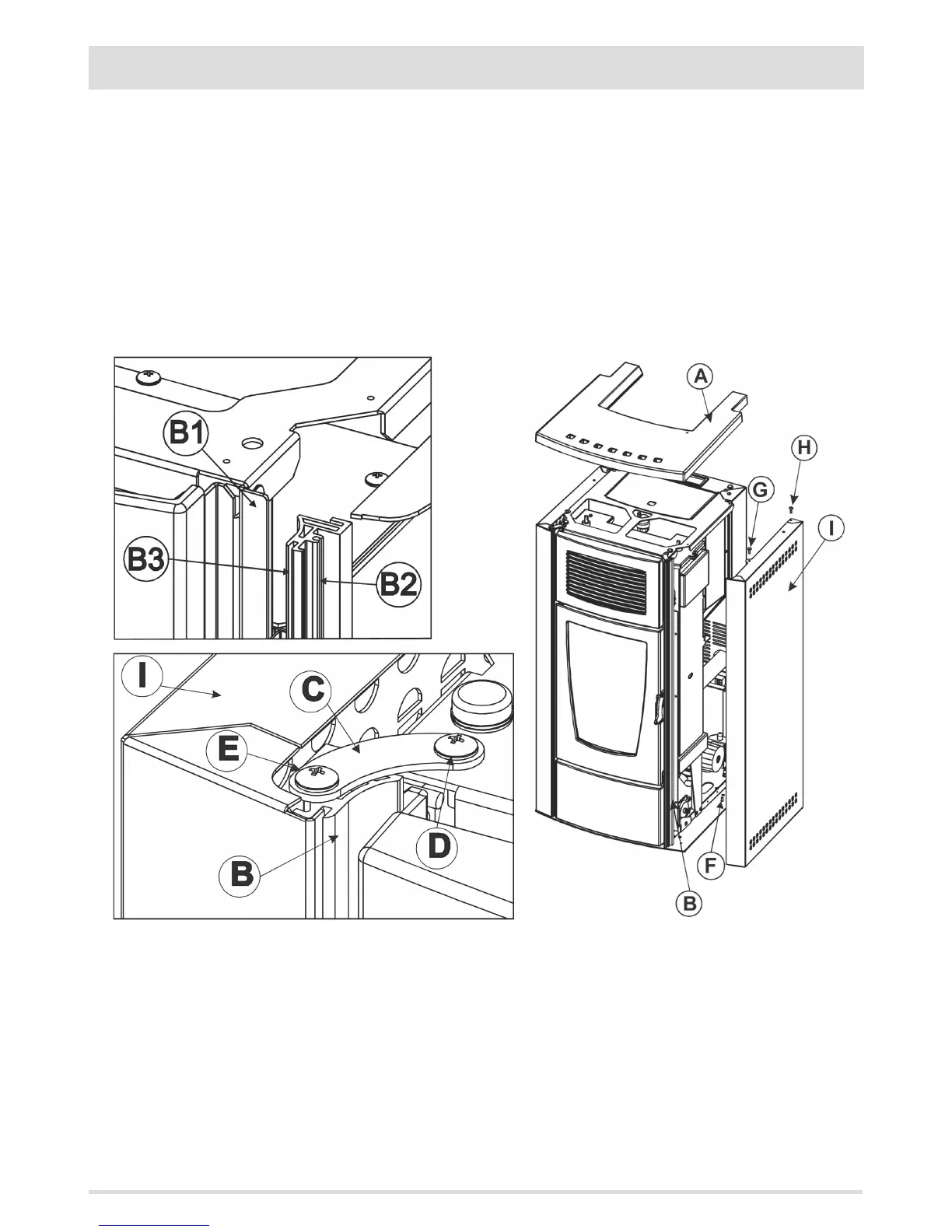

ASSEMBLING THE PROFILES TO INSERT THE STEEL SIDES (GARDENIA)
Remove, on the upper part, the cast iron top (A).
Take the two proles (B) to be assembled on the front part of the stove (one to the right and one to the left). Make sure that the prole
(B) at the bottom enters the hole preset on the base for securing purposes, and along the side enters the blade (B1) preset in the stove
along its entire height. Once this operation is performed, take the piece (C) with the two screws (D e E) and secure the prole on the top
part of the stove. The screw (D) must be secured on the upper sheet metal of the stove, while the screw (E) must be secured on the area
preset on the prole (B2).
Take the side (I) (to reposition the slide make sure that it enters the part under the plug (F)) and secure it to the upper sheet metal of the
stove with the two screws (G e H) supplied.
In the front part it must be inserted in the housing (B3) of the prole (B). Repeat the same operation for both sides.
Reposition the cast iron top.
INSERTING THE SIDES
