7 - CLADDING ASSEMBLY

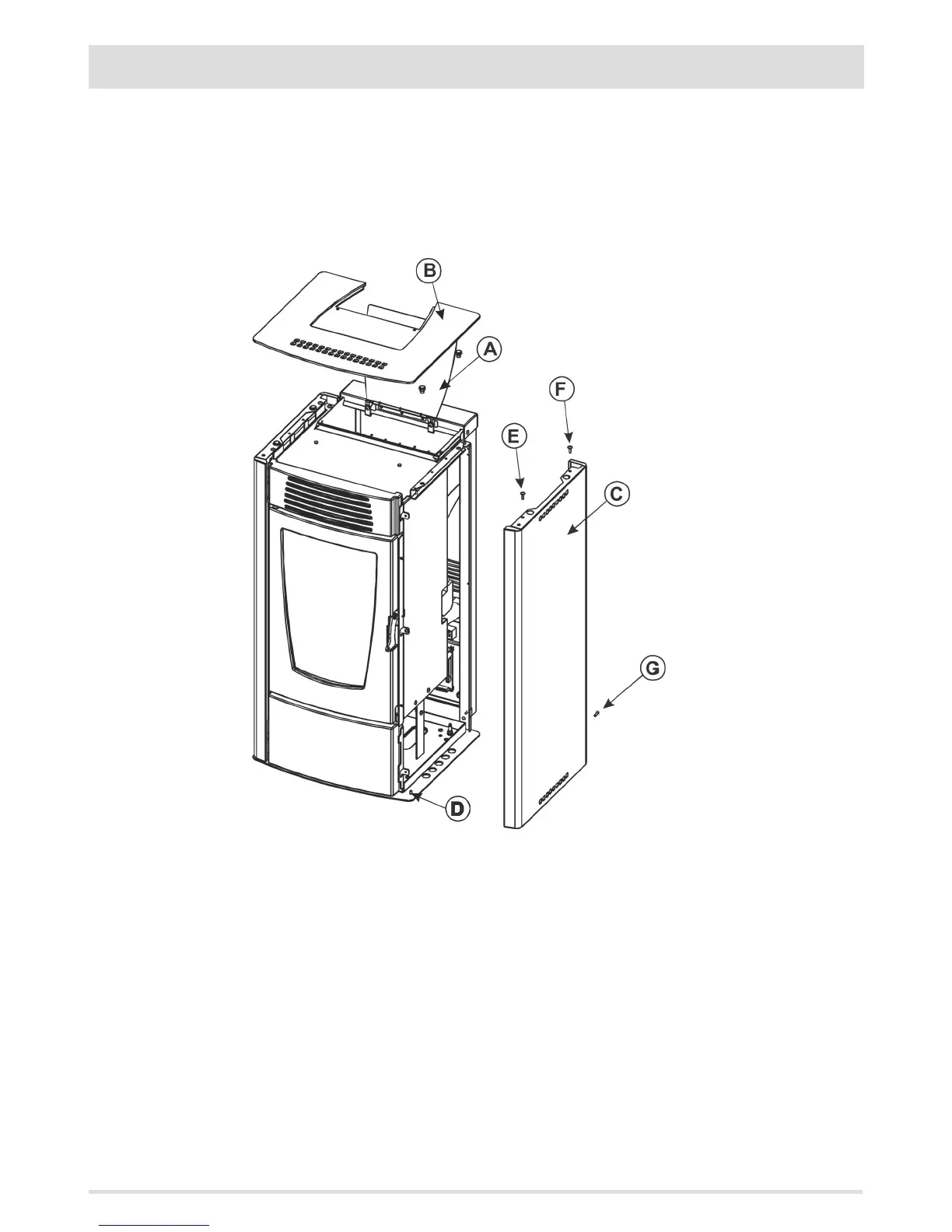

ASSEMBLING THE STEEL SIDES (DALIA)
Take the side “C” (to reposition the slide make sure that it enters the part under the plug “D”) and secure it to the upper sheet metal of
the stove with the two screws “E and F” supplied.
On the rear part, the side is to be secured to the structure using the screw “G ”.
Repeat the same operation for both sides. Then lift the cover “A” and position the steel top “B”.
DALIA STOVE SIDES
