RED FOCUS - Chapter 2: RED Focus Basic Operation; RED Focus Features and Controls; Display Functionality

C OPYRIGHT © 2 019 R ED.C OM , LLC 95 5-0 05 0, REV-L | 10
RED FOCUS OPERATION GUIDE
CHAPTER 2:
RED FOCUS BASIC OPERATION
This section describes the physical control, indicator, and display of the RED
®
Focus.
RED FOCUS FEATURES

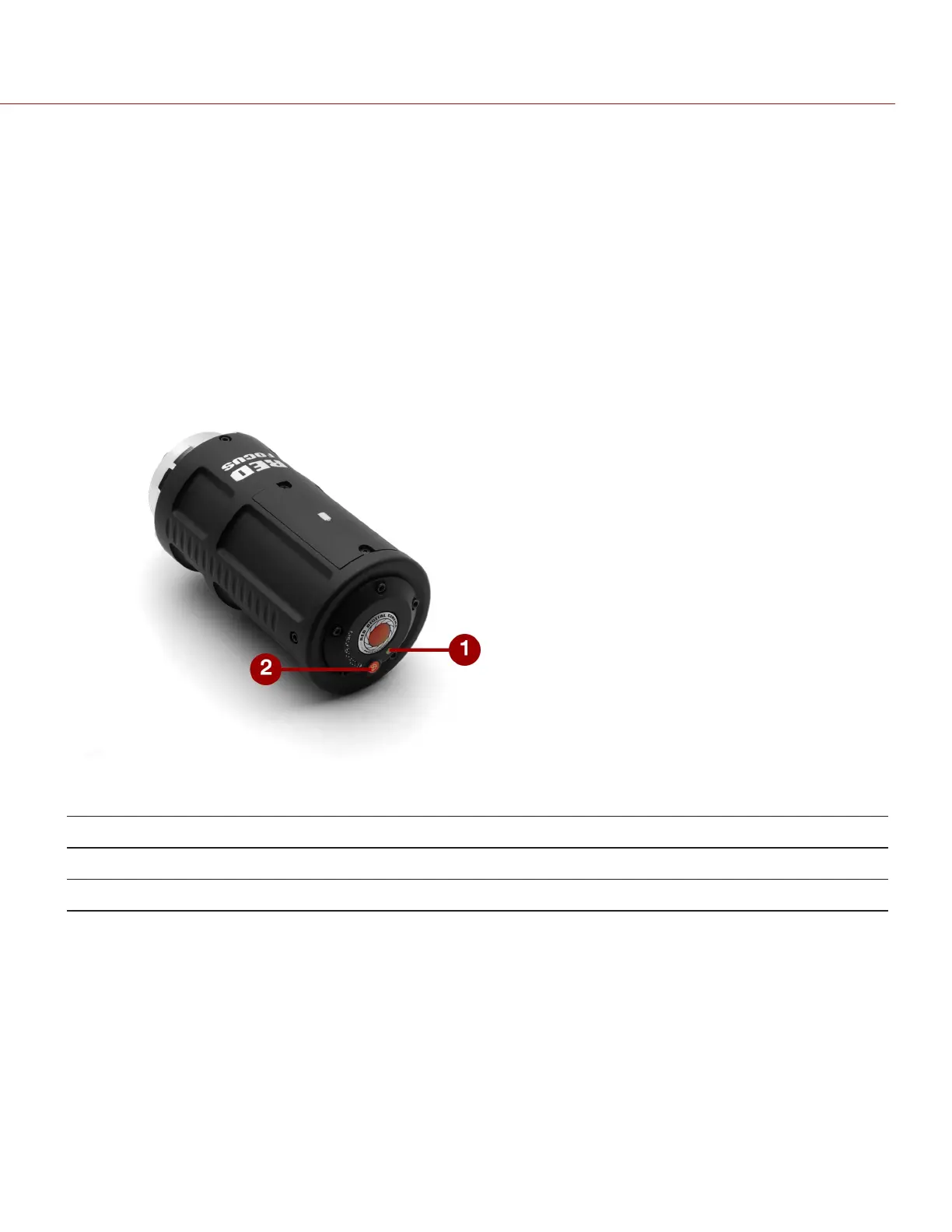

Figure: REDFocus Features
# FEATURE DESCRIPTION
1 LED Indicator When enabled, the LED illuminates green when turned on
2 Power Button Press to turn RED Focus on
DISPLAY
The RED Focus projects a Siemens
®
star image onto the camera sensor for adjusting back focus.
