Monitoring.
RED-LCD and RED-EVF monitors are factory preset digital displays. There are no saturation,
peaking or contrast adjustments as found on analog monitors to correct color reproduction.
Monitor outputs on the RED ONE camera are set up for REC 709 gamma and color space.
Image intensity can be adjusted to compensate for ambient lighting conditions. For the RED-
LCD, use the Up / Down keys on top of the display. For the RED-EVF use the rotary encoder.
To assist with exposure, all monitor outputs can display either a dual Zebra pattern or a False
Color exposure meter overlaid on the video. In addition the RED-EVF and RED-LCD outputs
can display a RGB histogram, exposure “stop lights” and RAW sensor data exposure meter.
RED-LCD Controls.
The top of the RED-LCD provides two round and two triangular keys. On the left is User Key 5
whose function can be defined the USER KEY preferences menu. The two triangular keys in
the center are used to increase or decrease backlight intensity. The key on the right switches
the display between Video plus Frame Guides and Menus, to Video plus Frame Guides only.

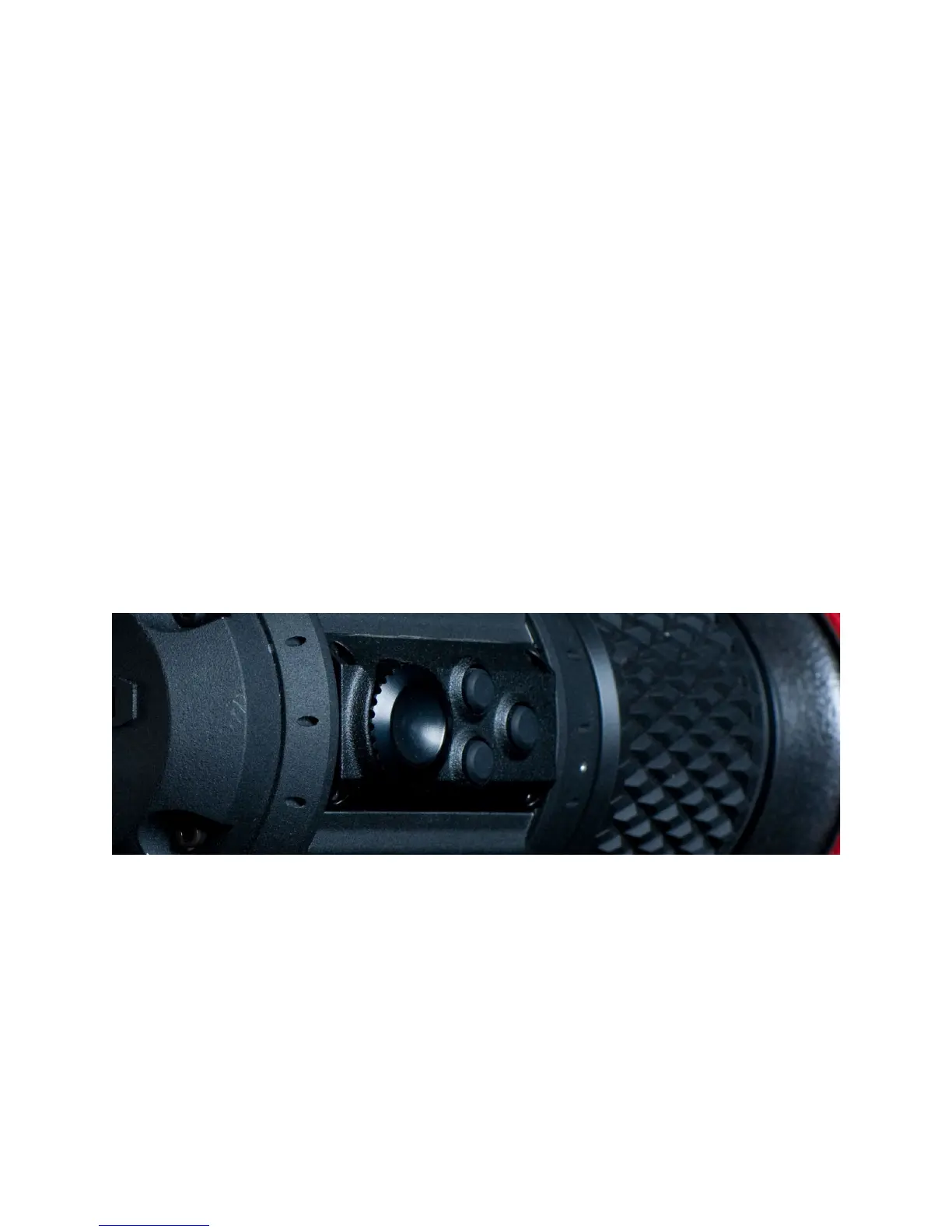

RED-EVF Controls
The RED-EVF comprises the following components: high-resolution color display, focus ring,
rotary encoder / switch, two user definable and one fixed function button.
The color display provides a 1280 pixel x 848-pixel resolution progressive scan color image
equivalent to viewing a 17” reference color monitor from a distance of approximately 4 ft.
The focus ring on the viewfinder may be adjusted for optimal subject focus for your eye. The
available diopter range is +1.5 to -2.0.
