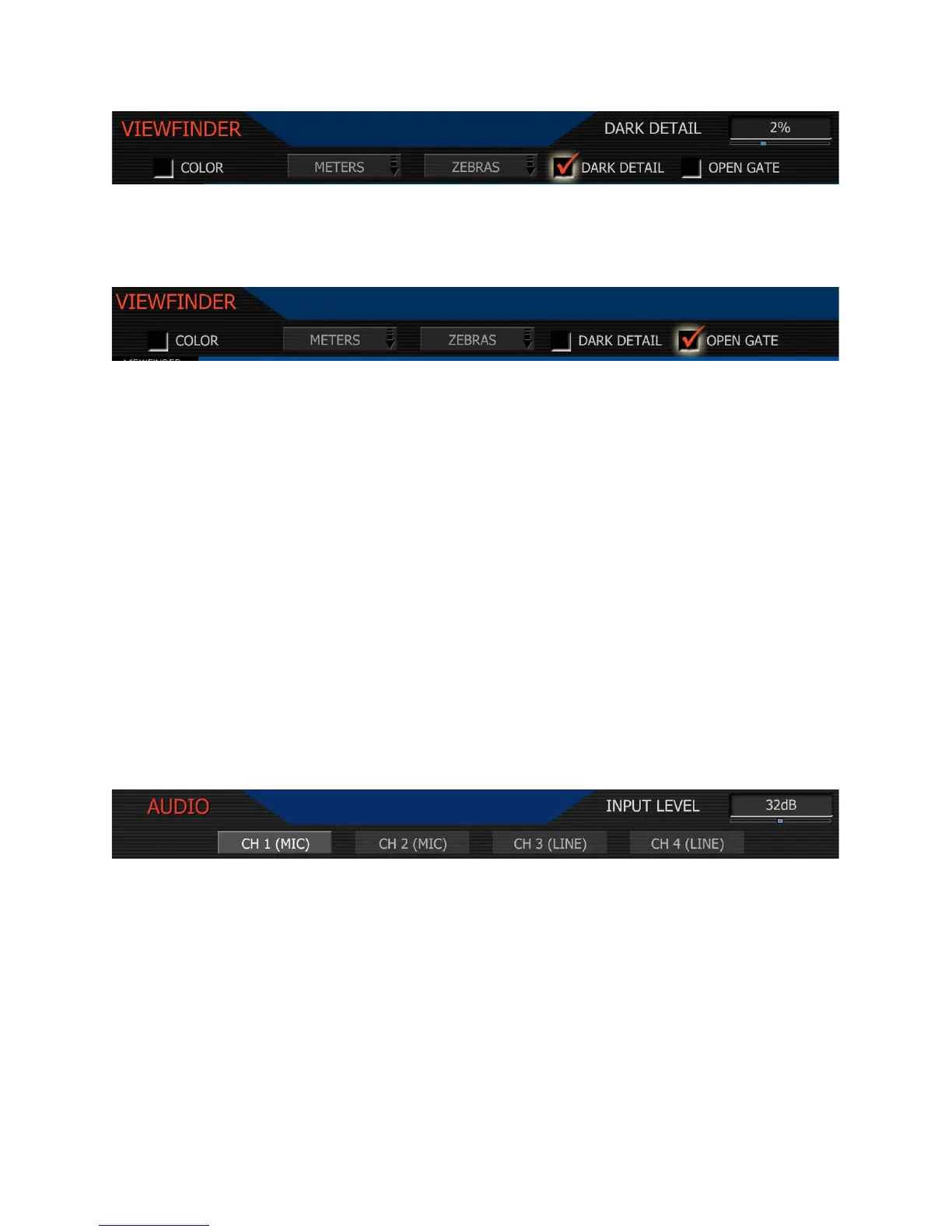

Dark Detail: allows the RED-EVF to view addition information (detail) in dark areas of a scene,
or in dimly illuminated nighttime scenes. Default setting is ON, and 1%
Open Gate: lets the camera preview images at 48Hz (50Hz) update rate when operating in
23.98 or 24.00 fps (25 fps) Project Frame Rates. In record, all monitor path images will be
viewed at 48Hz, but recorded at 23.98 or 24.00 fps (viewed at 50Hz, recorded at 25 fps)
Note: Use Open Gate with caution. Due to the doubling of sensor frame rate relative to
capture rate the following operational restrictions should be noted.
- Open Gate is not available in Varispeed or Ramp modes.
- Open Gate is not available for 50.00 or 59.94 Project Frame Rates.
- Video Genlock may not be available when operating in Open Gate.
- 360-degree shutter is not available when operating in Open Gate.
Note: When deselecting Open Gate mode, it is normal to observe up to a 3 second dis-
ruption in the RED-EVF display.
Audio:
This sub menu allows microphone input levels to be adjusted via a high quality pre-amplifier.
Audio is sampled at 24bits, which provides high audio fidelity and wide dynamic range. Each
microphone input is provided with a pre-amplifier that maybe adjusted for optimal level to
match different microphone sensitivities and sound pressures.
Input Level. Microphone: Range +10dB to +54dB Default value is +32dB
Line: 0dB or + 10dB Default value is 0dB
Note: Input level range on cameras shipped prior to Sept 15 2008 is +20dB to +54dB. Line
input levels may not be adjusted on these cameras, unless the audio board is upgraded.
