4-INSTALLATION AND ASSEMBLY
ASSEMBLING THE SIDE CLADDING

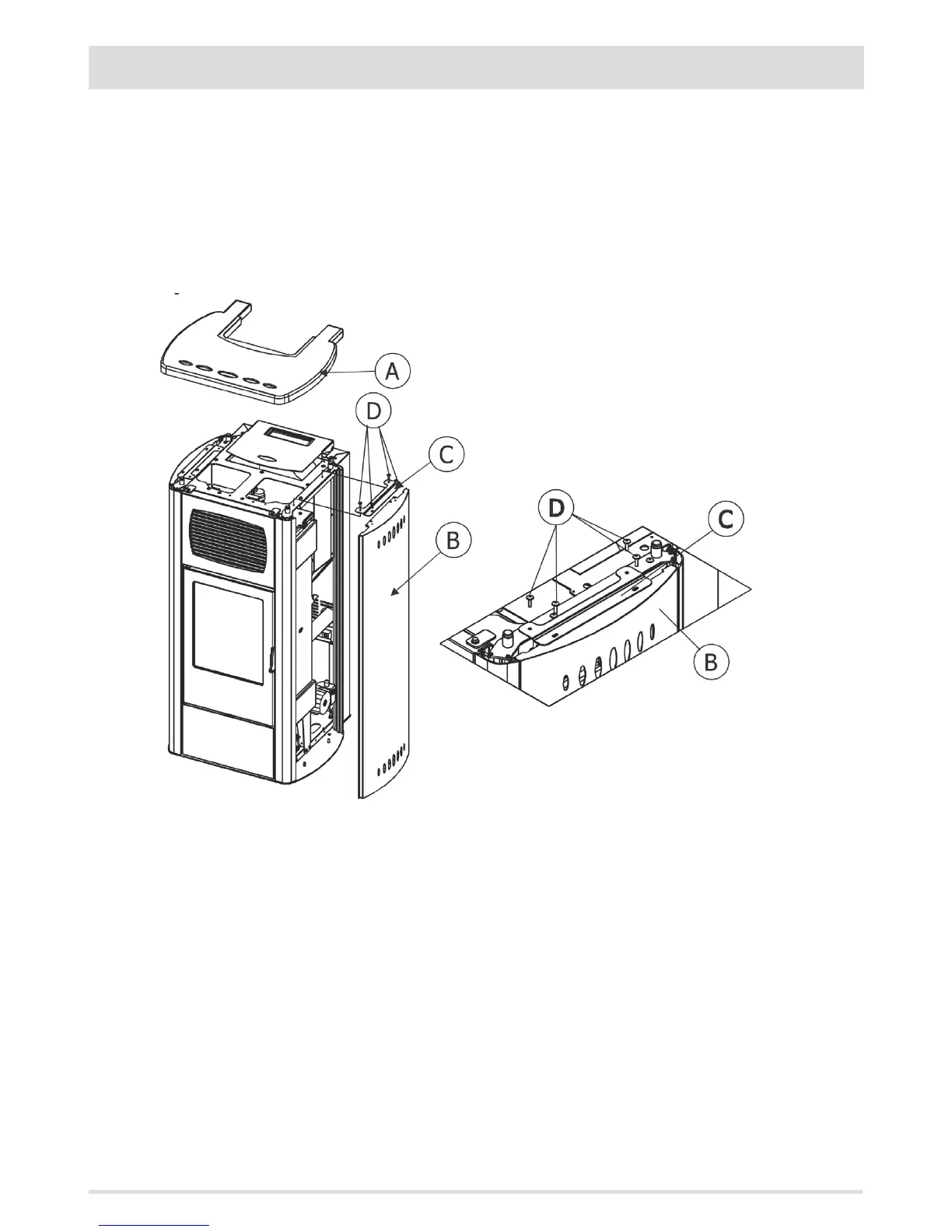

ASSEMBLY OF PROFILES FOR INSERTION OF STEEL SIDES (PRIMULA)
Remove, on the upper part, the cast iron top (A). Take the side (B) (make sure it goes into the part under the plugs (F) and secure it to the
upper sheet metal of the stove with the bracket (C) and four screws (D). Two screws secure the bracket (C) on the stove and two secure
the bracket (C) to the side (B).
Repeat the same operation for both sides. Reposition the cast iron top.
SIDES INSERTION
