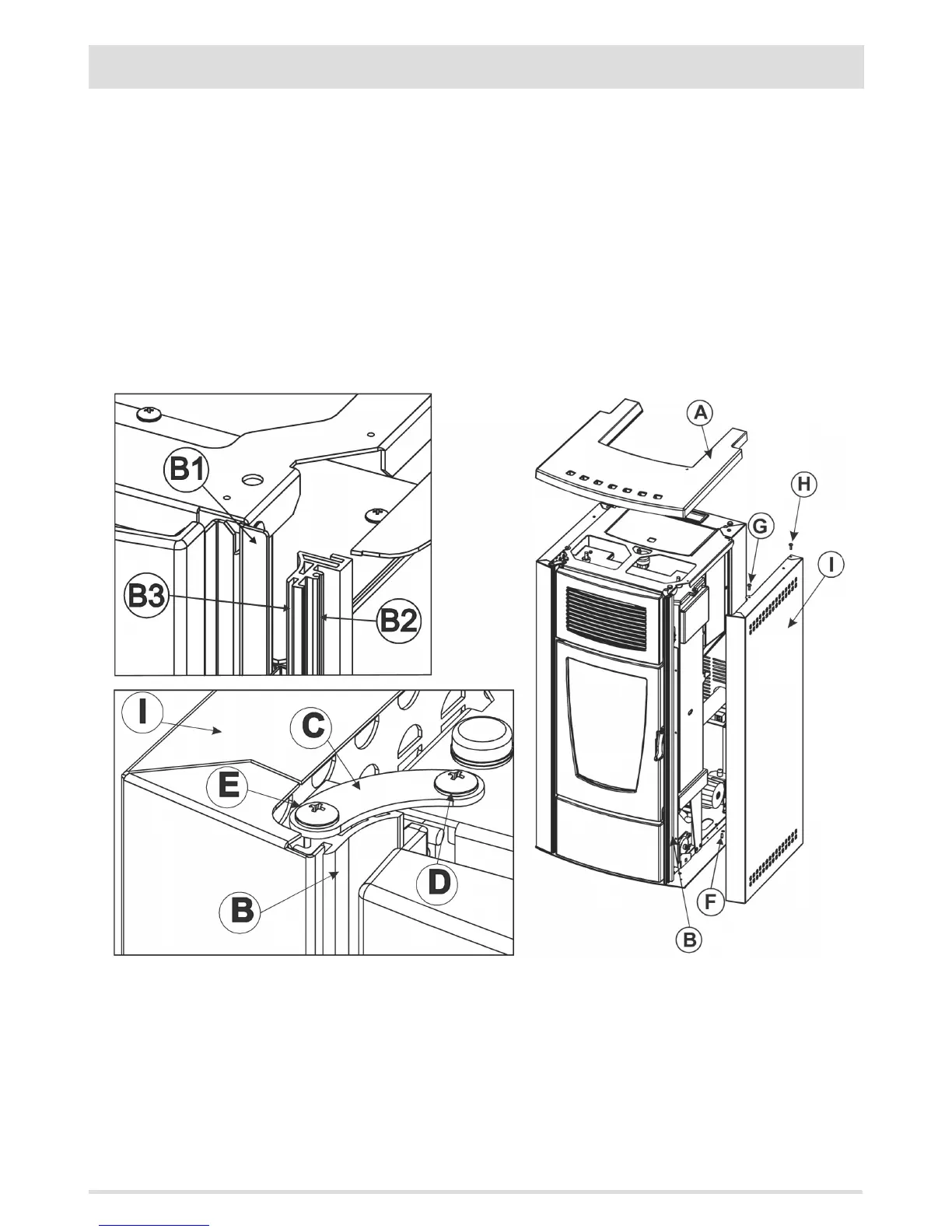

ASSEMBLY OF PROFILES FOR INSERTION OF STEEL SIDES (GARDENIA)
Remove, on the upper part, the cast iron top (A).
Take the two proles (B) to be assembled on the front part of the stove (one to the right and one to the left). Make sure that the prole
(B) at the bottom enters the hole predisposed for xing on the base, and that along the side it enters the blade (B1) predisposed in the
stove along its entire height. Once this operation is performed, take the piece (C) with the two screws (D and E) and secure the prole
on the top part of the stove. The screw (D) must be secured on the upper sheet metal of the stove, while the screw (E) must be secured in
correspondence of the guide predisposed on the prole (B2).
Take the side (I) (to reposition the side make sure that it enters the part under the plug (F) and secure it to the upper sheet metal of the
stove with the two screws (G and H) provided.
In the front part it must be inserted in the housing (B3) of the prole (B). Repeat the same operation for both sides.
Reposition the cast iron top.
SIDES INSERTION
