RED River Series - Unit Components and Construction; Unit Components; Unit Construction Material

25
Note: The diameter of the tube installed must be identical to the stove smoke exhaust.
Unit Components
13. Lid of the stove built-in to the upper part of the unit (RIVER LINE only).
14. Front door.
15. Nickel steel handles.
16. Combustion regulator.
17. Ash drawer. (In the NEW LINE model, it is located inside the unit).
18. Firewood holder (available in some units of both lines).
Unit Construction Material
 The combustion chamber and front door of all our Free Standing Fires are made of top-quality carbon steel plate with a
thickness of 5mm-4mm;
 The levers and handles are in nickel steel;
Operating Technical Specifications
River Line
New Line
Classic Line
Minimum distance from combustible
materials
100 cm
100 cm
100 cm
Heated volume (approx)
200 m
3
200 m
3
308m
3
Rated heat output
8,5kW
10kW
10,5kW
Efficiency
74%
71%
76%
CO emissions (13%O
2
)
0,81%
0,8%
0,77%
Temperature fume (ºC)
296
382
325
CO2 emissions (%)
9,53
10,4
11,5

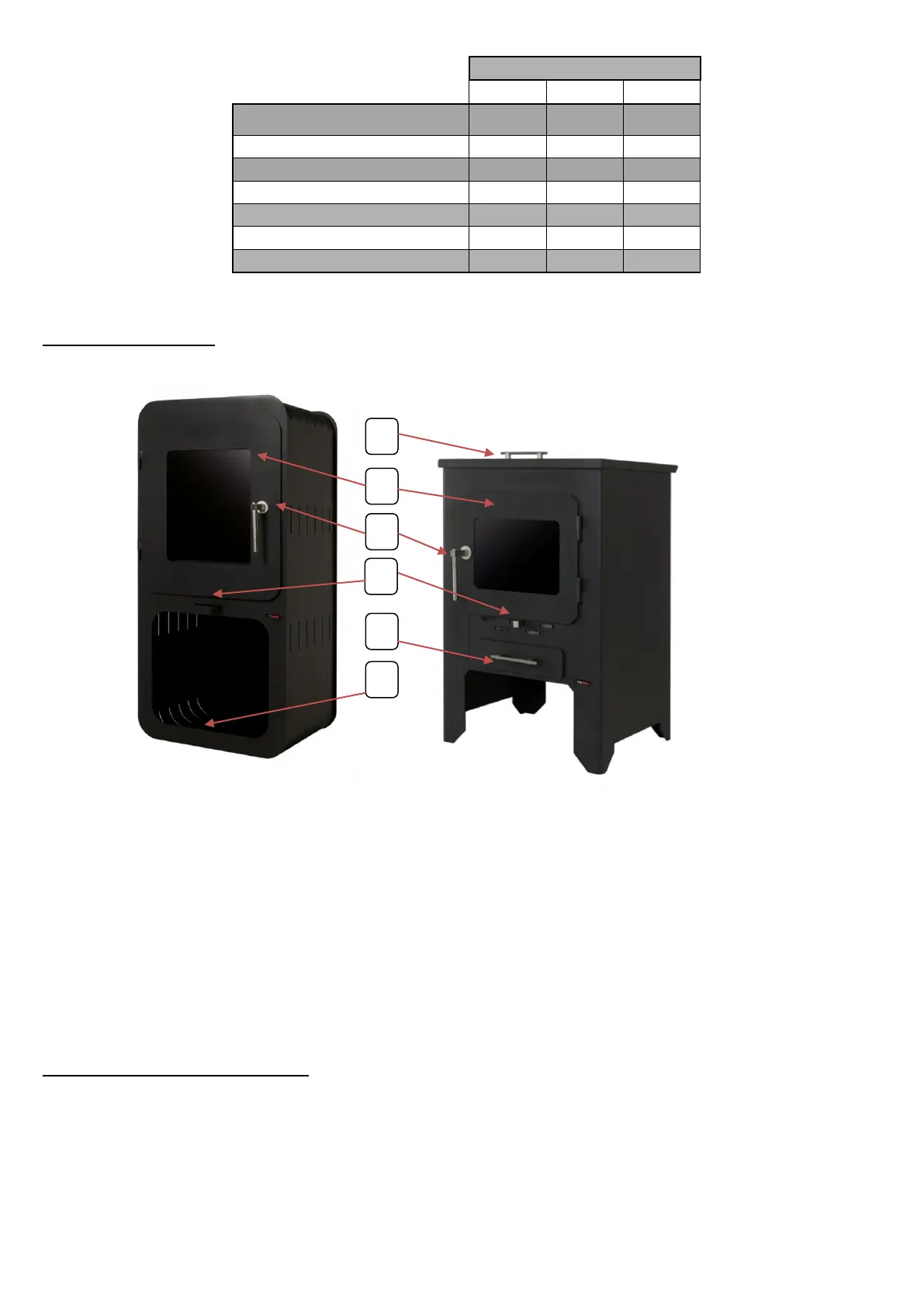

Figure 1: NEW LINE Free Standing Fire
Figure 2: RIVER LINE Free Standing Fire
