Redarc BMS1230S2-NA User Manual

11
2 INSTALLATION GUIDE
2.1 System Layout
2.2 Mounting Instructions
This section describes how to mount the three major components of The Manager30: the
Main Unit, the Display and the Battery Sensor.
Vehicle
Battery
(Not Supplied)
House Battery
(Not Supplied)
BMS1230S3
Solar Panels
(Not Supplied)
Display
To Loads
(Not Supplied)
Battery
Sensor
240VAC
Mains Power
DC - DC
Power Source

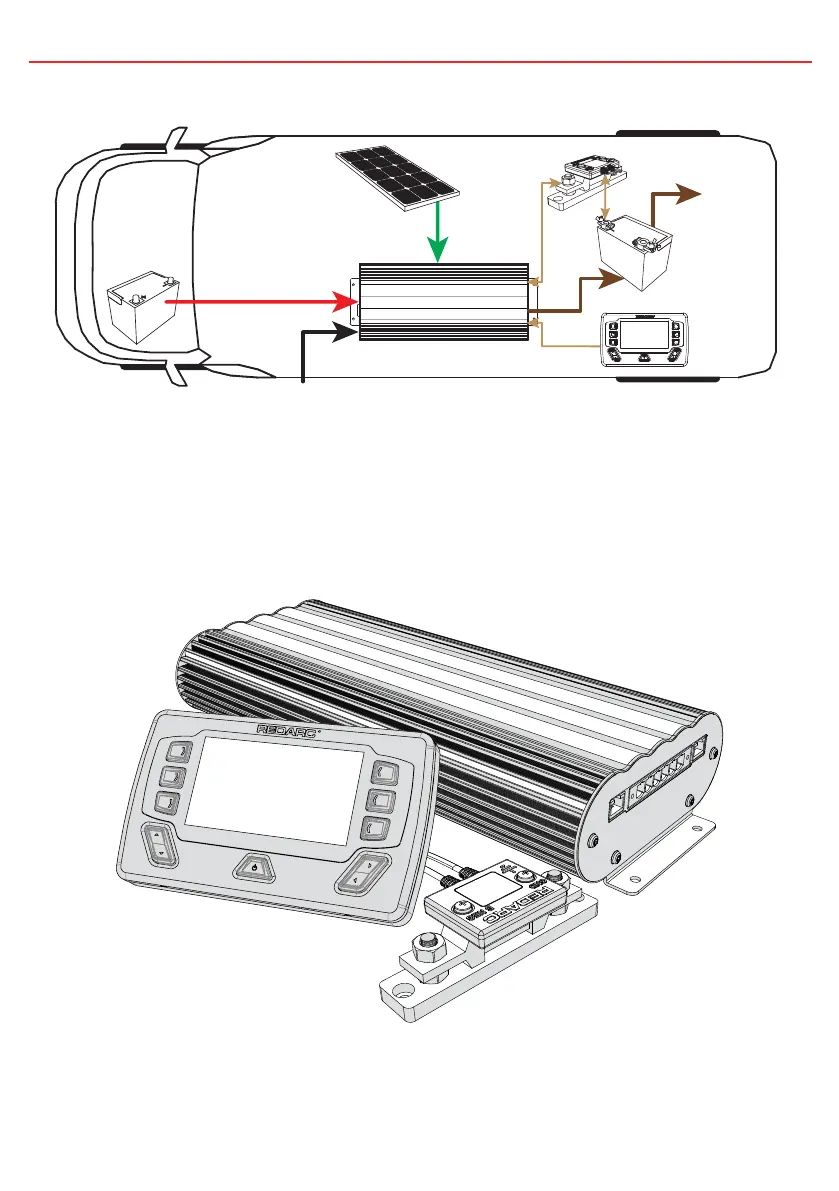

Figure 2.1.1 - System Layout
Figure 2.2.1 - The Manager30 System
