Redarc DPS1225 User Manual

4

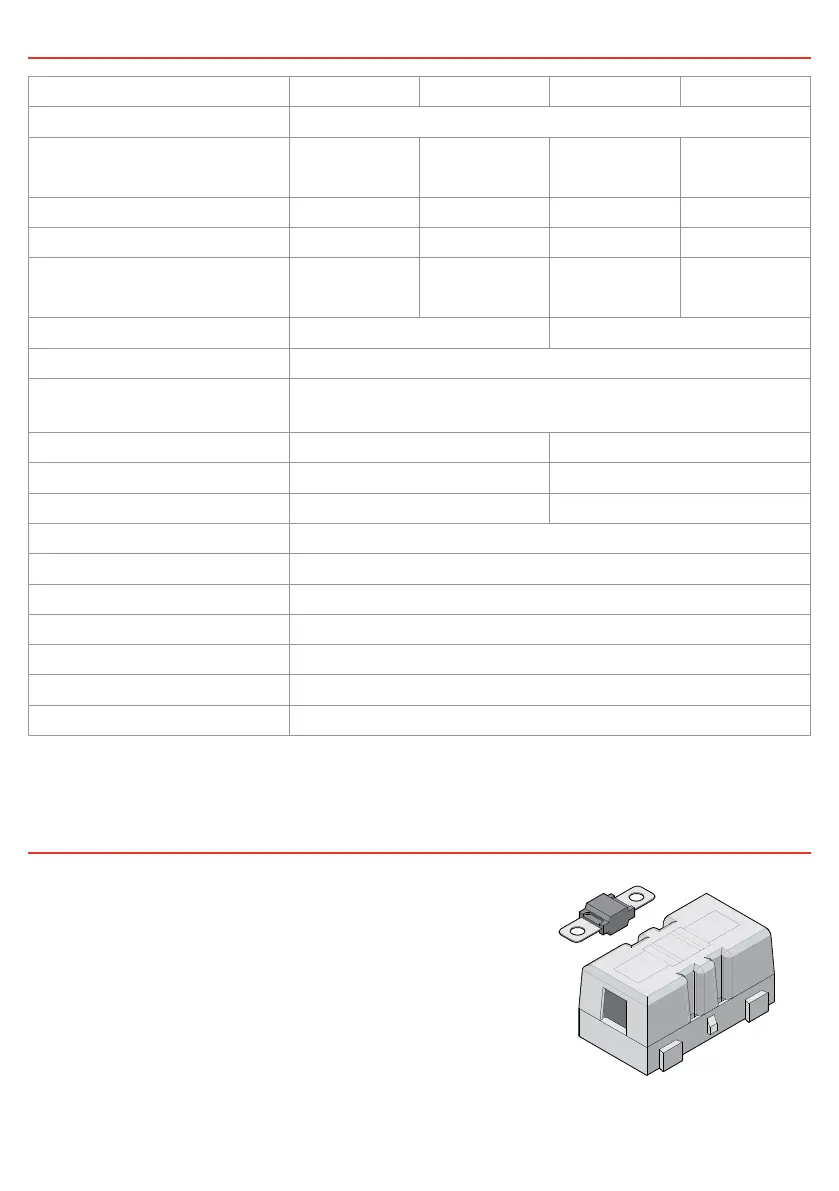

2 SPECIFICATIONS
Part Number DPS1225 DPS1240 DPS2410
DPS2420
Input Voltage Range 9 to 32V
Recommended Input Fuse
*1
40A
(REDARC FK40
recommended)
60A
(REDARC FK60
recommended)
40A
(REDARC FK40
recommended)
60A
(REDARC FK60
recommended)
Nominal Output Current Rating 25A 40A 10A
20A
Surge Current Rating 50A 80A 20A
40A
Recommended Output Fuse
*1
40A
(REDARC FK40
recommended)
60A
(REDARC FK60
recommended)
40A
(REDARC FK40
recommended)
40A
(REDARC FK40
recommended)
No Load Current
<100mA <200mA
Standby Current <5mA
Output Voltage
(selected with Orange wire)
No Connection 12.0V 24.0V
Earth 13.7V 27.4V
Positive supply 14.5V 29.0V
Line & Load Regulation ±1%
Conversion Efficiency >94%
Operating Temperature –50°C to +50°C (–58°F to +122°F)
Weight 680g (24 oz)
Dimensions 150 × 120 × 37mm (5.9×4.7×1.5")
Standards CE, C-Tick, AS/NZS CISPR1 1:2004
Warranty 2 Years
*1. Please refer to FUSING below.
Voltage tolerance of ±0.12 V.
3 FUSING
REDARC recommend using MIDI style bolt down fuses as they
ensure a low resistance connection. The REDARC FK40 and FK60
fuse kits are recommended.
Blade type fuses are not recommended as they can result in a high
resistance connection which causes excess heat and may damage
the fuse holder and/or the wiring. Self-resetting circuit breakers
are not recommended as they may trip prematurely and continue
to cycle until failure, due to the heat generated by the current
flowing through the wires.
