Redarc The Manager30 User Manual

15
2 INSTALLATION GUIDE
Wall Mount
1
2
Use the template provided (section4 on
page37) to mark the position and drill and
cut the mounting holes into the wall.
Attach the Back Plate to the wall using 4
suitably sized countersunk screws.
3 4
Feed the Remote Monitor cable through the
hole and connect it to the Remote Monitor.
Clip the Inner Assembly into the Back Plate.
5 6
Clip the Front Face to the Inner Assembly.

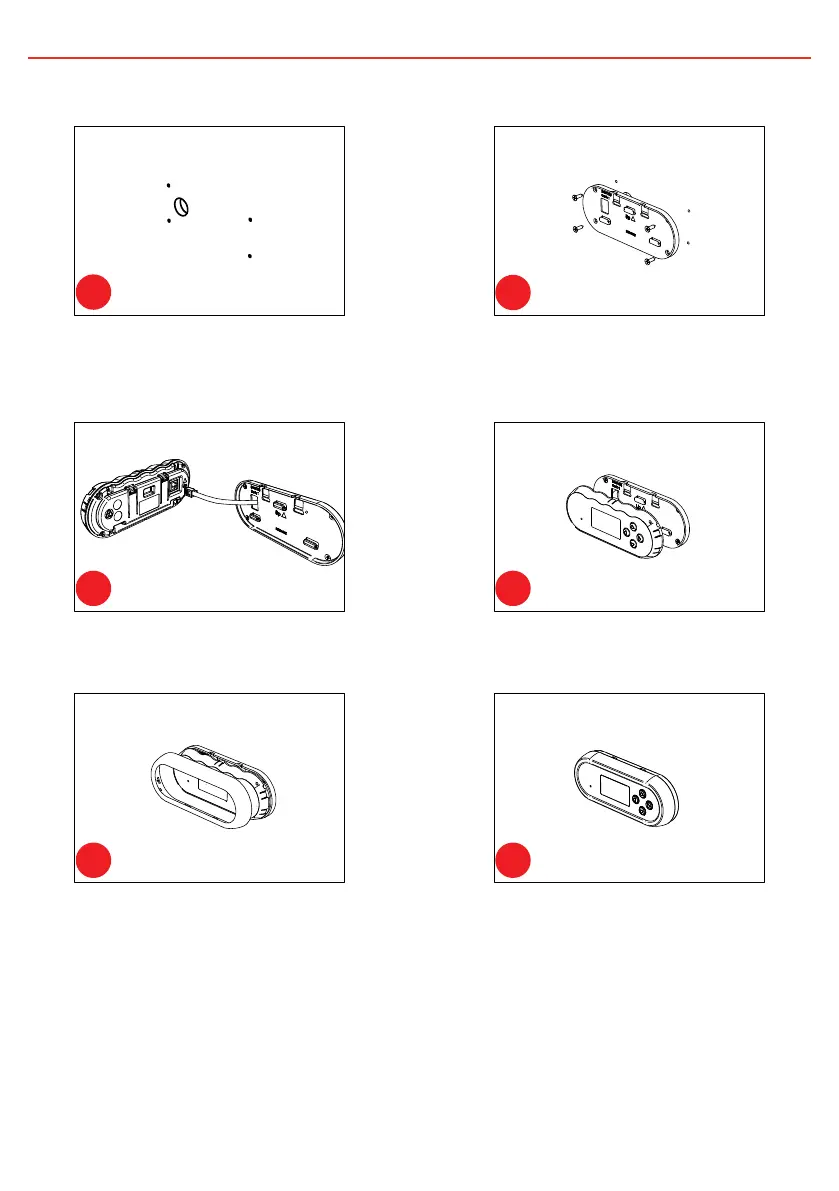

FIGURE 2.2.2.2: How to wall mount the Remote Monitor.
