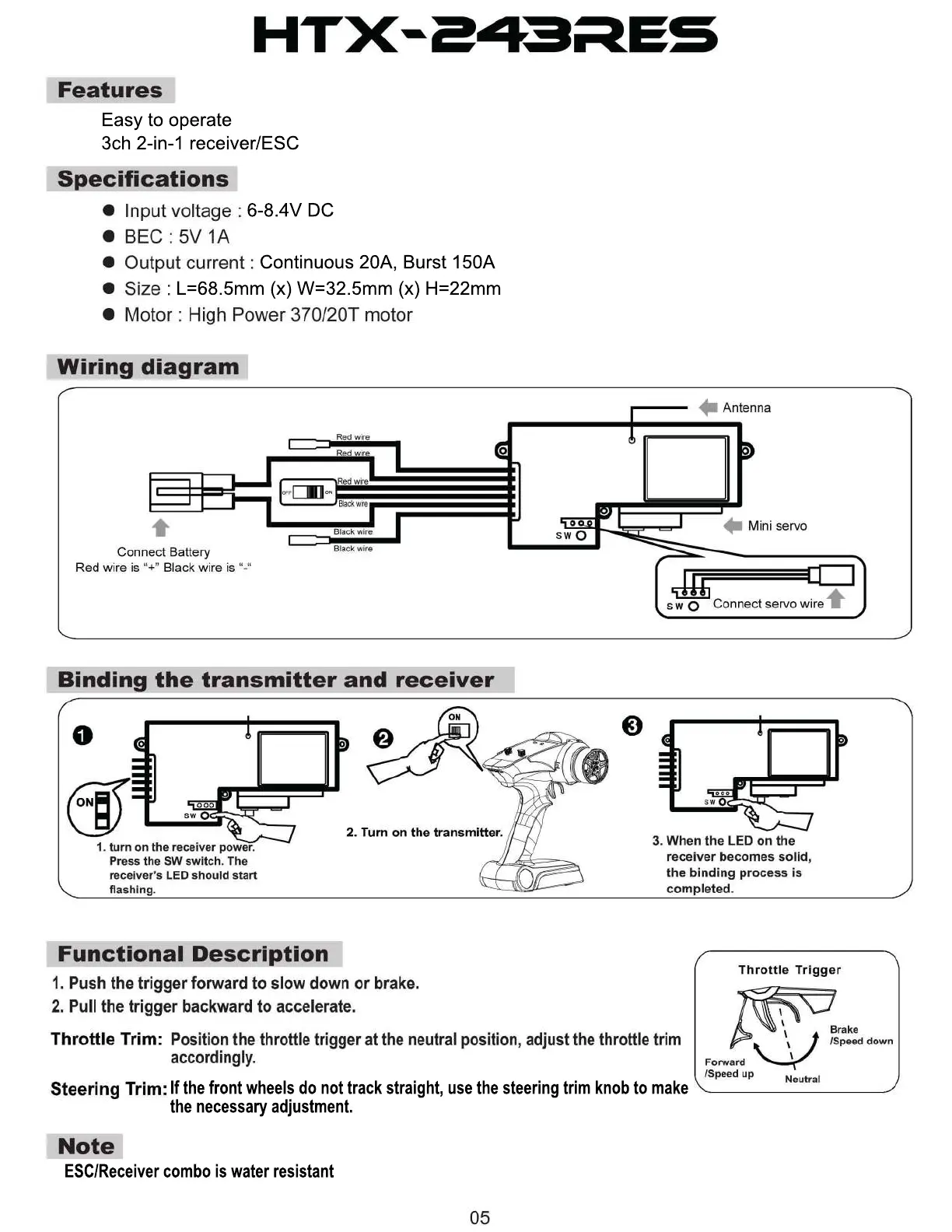

REDCAT Volcano 18 - HTX-243 RES Receiver;ESC; Receiver;ESC Features and Specifications; Wiring Diagram; Binding Transmitter and Receiver

Default Icon
25 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
L=68.5mm (x) W=32.5mm (x) H=22mm
If the front wheels do not track straight, use the steering trim knob to make
the necessary adjustment.
ESC/Receiver combo is water resistant
Continuous 20A, Burst 150A
Easy to operate
3ch 2-in-1 receiver/ESC
6-8.4V DC
