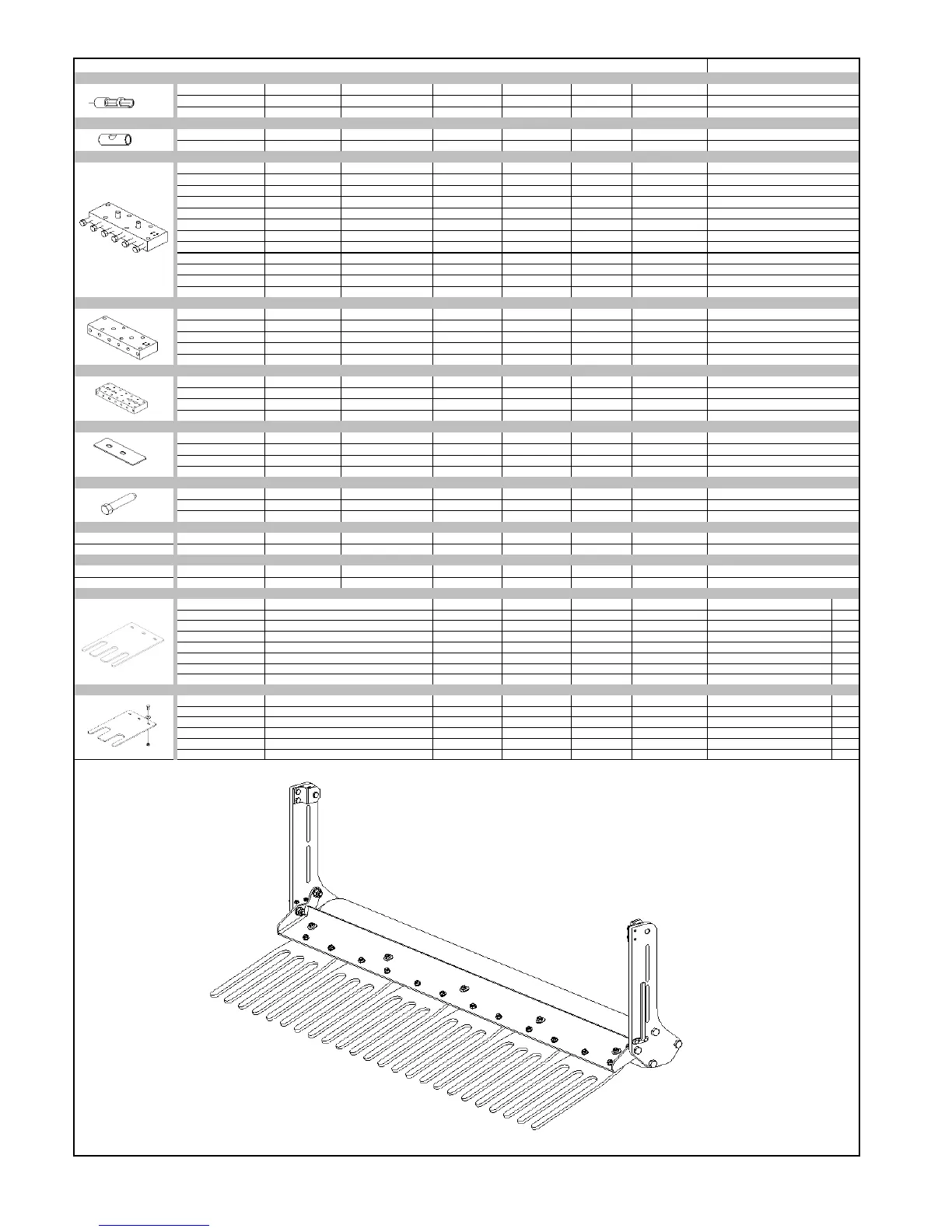

Redexim 7117 - Page 47

Adapter
Tine Size (mm) Tine Size (inch) Part #
J 5 3/16 314.205.043
K 8 5/16 314.208.043
Adapter
Tine Size (mm) Tine Size (inch) Part #
L 18 3/4 2451800
Multi-tine block complete WO tines
Tine Size (mm) Tine Size (inch) Part # Tines:
8mm (5 tines) 5/16 211.700.016 Combination of: T-O-U-Y-Z A1-A3-A4-A5
8mm (6 tines) 5/16 9990206 Combination of: M-U A1-A2-A3-A4-A5
8mm (8 tines) 5/16 9990208 Combination of: N-U A1-A2-A3-A4-A5
8mm (8 tines) 5/16 9990211 Combination of: N-U-W A1-A2-A3-A4-A5
8mm (8 tines) 5/16 314.430.209 Combination of: P-U A1-A2-A3-A4-A5
Tines:
A1 8 x 150 5/16 x 6 311.108.150 Solid tine
A2 8 x 175 5/16 x 7 9990056 Solid tine
A3 10 x 6 x 80 3/8 x 1/4 x 3 311.210.080 Hollow tine
A4 10 x 6 x 125 3/8 x 1/4 x 5 311.210.127 Hollow tine
A5 12 x 90 1/2 x 3 1/2 9990020 Cross tine
Multi-tine block empty
Tine Size (mm) Tine Size (inch) Part #
M 8mm (6 tines) 5/16 9990201
N 8mm (8 tines) 5/16 314.430.240
O 8mm (5 tines) 5/16 480.301.430
P 8mm (8 tines) 5/16 211.215.002
Multi-tine block mini needles empty
Tine Size (mm) Tine Size (inch) Part #
Q 5 (21 tines) 3/16 480.251.740
R 5 (12 tines) 3/16 314.425.140
S 5 (24 tines) 3/16 314.425.240
Backup plate
Size (mm) Part #
T 143x50x3 464.031.432
Tine lock bolt
Size (mm) Part #
U 10x40 812.100.401
10x35 4001675
Bolt
Size (mm) Part #
Y M10 x 80 802.100.800
Nut
Size (mm) Part #
Z SI nut M10 830.100.100
Turf hold down fingers
Part # Qua
311.506.161 10
Turf hold down kit
Part # Qua
211.711.004 1
50
Redexim Verti-drain Code 1620 Page 12
Turf hold down finger MTH
Turf hold down finger
Part name
Turf hold down finger 24mm
Turf hold down finger 24mm end
Turf hold down finger 18mm
Turf hold down finger 12mm
Turf hold down finger 12mm end
Qua
30
30
7117
Qua
7117
Qua
10 (50 tines)
7117
7117
7117
Qua
10
7117
Qua
Qua
10
7117
Qua
7117
Qua
20
7117
Qua
20
7117
7117
THD kit complete 24mm
THD kit complete 18mm
THD kit complete 12mm
THD kit complete MTH
THD kit complete
Part name
