2.0 FIRST SETUP, LIFTING MACHINE FROM PALLET.
The machine stands vertically up on the pallet. To remove the pallet and get the machine

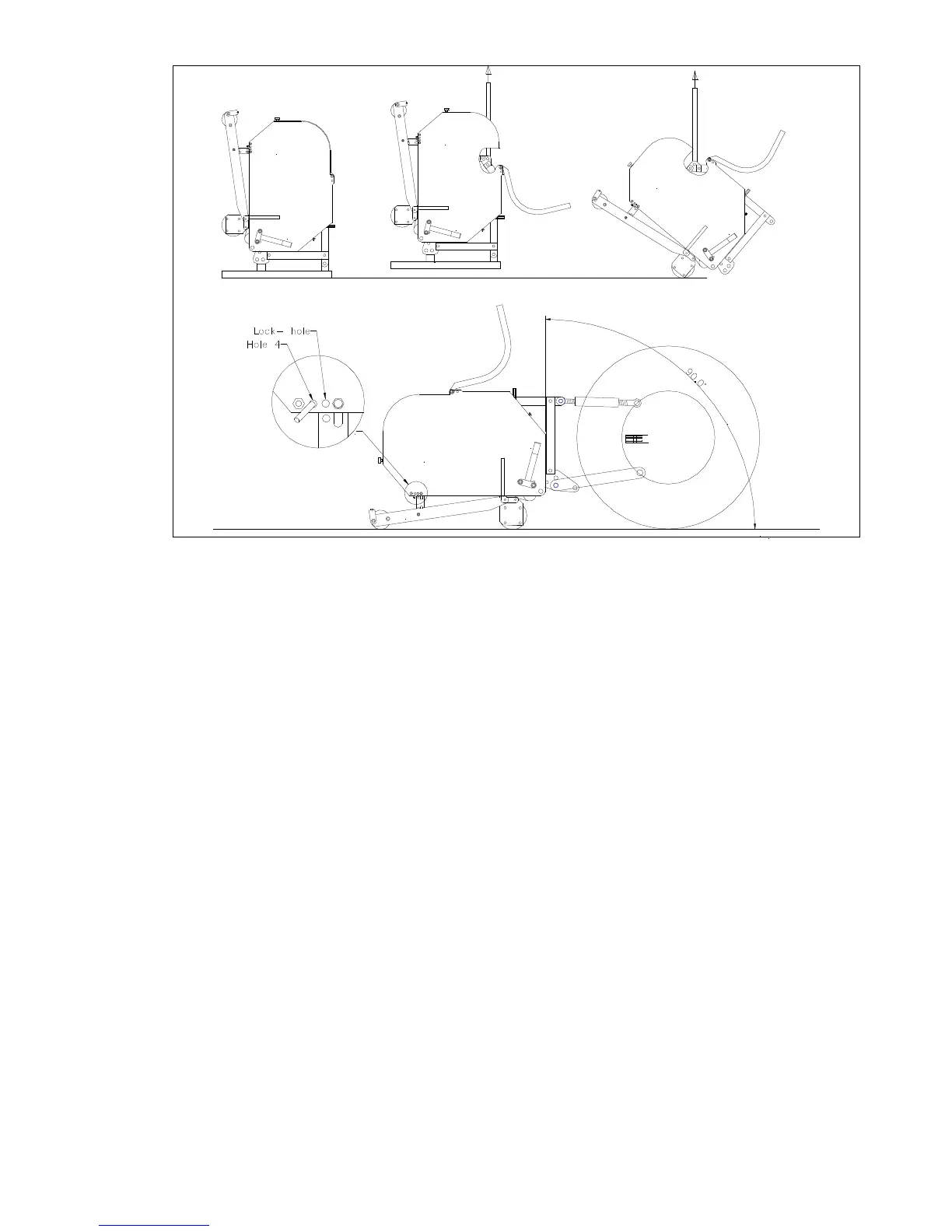

horizontal on the ground, handle as follows (see fig.1 ):
1. Open the rear cover
2. Connect a cable to lift point
* ensure the cable/crane/lift truck can lift minimum 1000 Kg.(2200 lbs).
3. Raise machine with pallet 50 mm (2")from the ground.
4. Remove pallet by sliding it over the bottom 3-point pins
* Do not crawl under the machine
5.Lower the machine gentle till 3-point connecting plates contact the ground.
6. Drop the machine further, enabling it to rotate on its front roller.
7. Gently lower the machine till it stands on the front and rear roller.
8. Connect the machine to a tractor.
* Use correct tractor see specifications.
9. Lift the machine from the ground.
10. Remove the rear roller lock pins. Put pins in hole 4.
11. Lower the machine on the ground and adjust the angle of 90 degrees with top link
@ this angle is very important, see further.
12. Adjust tractor lower link stabilizers to limit sideways movement to about 100 mm (4”).
13. Fix tine angle adjustment lever to machine (separately packed ).
14. Mount the tines. Use some grease on the shank.
15. PTO length, see 3.1
