RedMax BCZ2460S - Optional Blade Usage

US-17
BCZ2460S/TS
U
S
•When sharpening, removing, or reattaching the blade, be
sure to wear thick, sturdy gloves and use only proper tools
and equipment to prevent injury.
■ CHOOSE THE BLADE
Choose a suitable recommended cutting attachment according to
the object to be cut. (OPT5)
• When replacing blade always be sure to use products which
have been certified by RedMax.
(1) 9” 22-tooth : SST229
(2) 9” 24-tooth : SST249
(3) 8” 8-tooth : SGB088
(4) 9” 8-tooth : SGB089
(5) 8” 4-tooth : SGB048
(6) 9” 4-tooth : SGB049
(7) Nylon line head
(A) Under growth
(B) Heavy weeds
(C) Light weeds
(D) Grass
WARNING
■ SET UP THE BLADE
1. Detach the line head assembly. (OPT6)
2. Put on the blade, making the marked
side face the shaft side, put the holder
and the cover on, and fasten the blade
with the nut. (OPT6)
TIGHTENING TORQUE :
130 – 174 in-lbs
(14.7 – 19.6 N.m.)
(1) Cover (2) Holder (B)
(3) Nut : (STANDARD)
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit
balances with head just touching on the
ground. (OPT7)
OPT7
(1)
(3)
(2)
OPT6

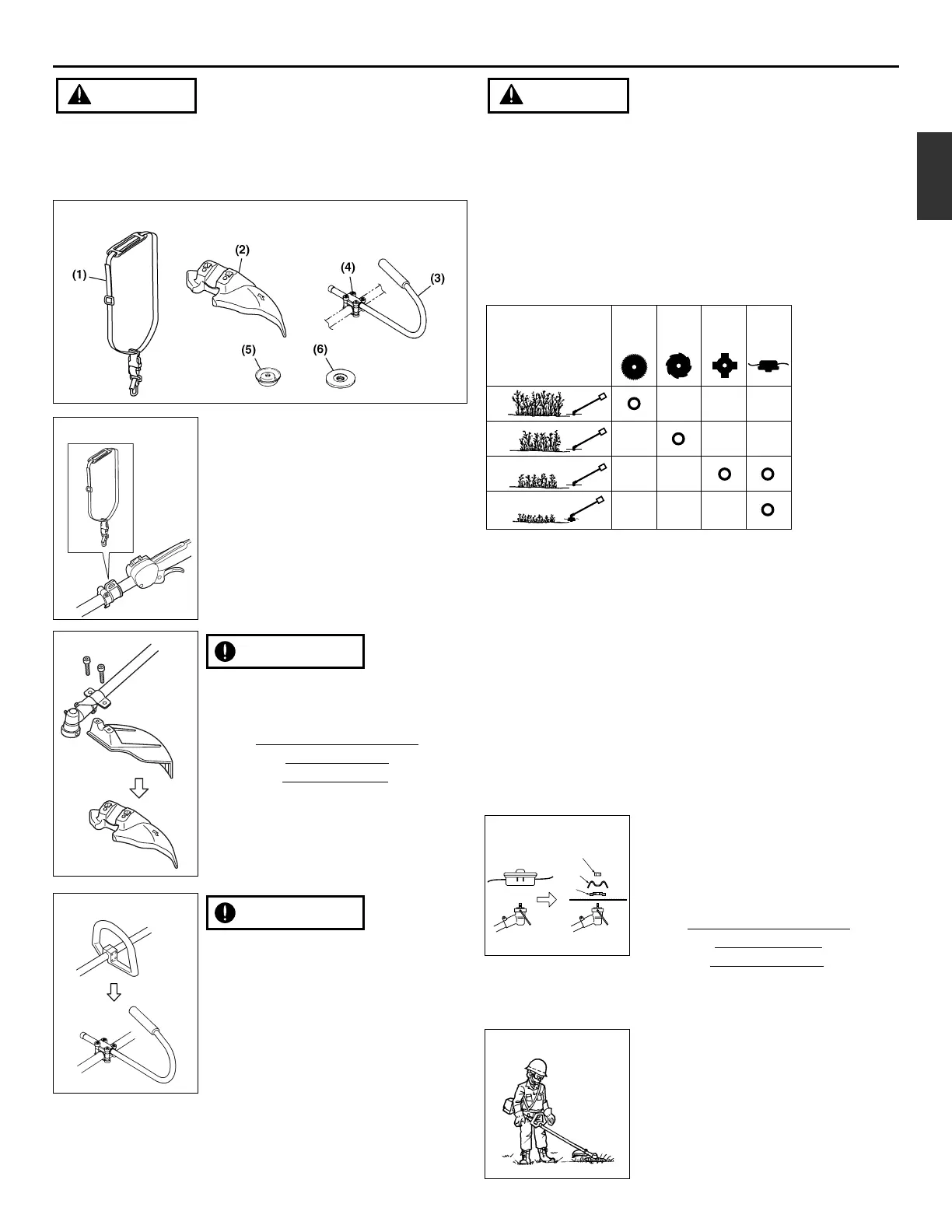

12. Optional blade usage
OPT2
OPT1
Blade Kit : 966 42 40-01
OPT4
OPT3
(1) Shoulder strap
(2) Guard
(3) J-handle
(4) Bracket ASSY
(5) Cover
(6) Holder (B)
Change to the debris guard which is
suitable for the metal blade.
TIGHTENING TORQUE :
26 – 43.5 in-lbs
(2.94 – 4.9 N.m.)
Change the loop handle to the J-handle
for safe operation.
IMPORTANT
IMPORTANT
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(A)
(B)
(C)
(D)
OPT5
• For security reason, in case of mounting the blade on this
product and use it, purchase the blade kit (966 42 40-01)
and change guard, handle from the original ones, and use
shoulder strap. (OPT1 – OPT4)
WARNING
