US-3
BCZ2460S/TS
U
S

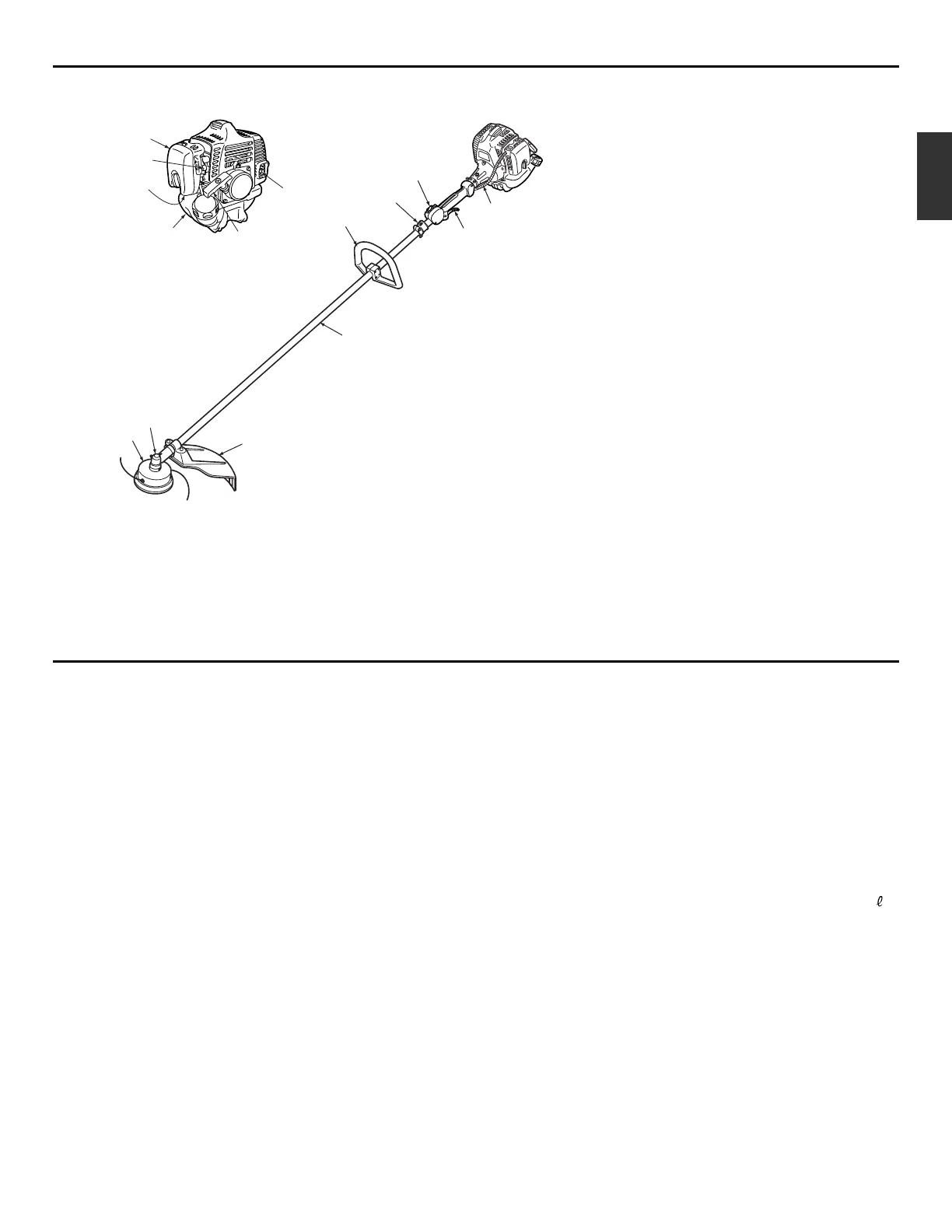

1. Parts location
BCZ2460S/BCZ2460TS
Overall size(LxWxH) ············································································· 71.3 (1810) x 9.0 (228) x 11.5 (292) in (mm)
Dry weight ········································································· 10.8 lbs (4.89 kg) (11.6 lbs (5.27 kg) Including tap head)
Engine Type·················································································································· Air-cooled 2-stroke gasoline
Model················································································································································· GZ23N
Displacement ················································································································· 1.5 cu-in (23.6 cm
3
)
Max. output ························································································· 1.15Hp (0.858kW)at 8000/min
-1
(rpm)
Idle speed····················································································································3000 ± 200/min
-1
(rpm)
Fuel ·················································································································· Mixture (Gasoline 50 : Oil 1)
(when using RedMax genuine oil)
Carburetor ··············································································································· Walbro Diaphragm type
Spark plug ································································································································NGK CMR7H
Fuel tank capacity···························································································································21.3 fl.oz (0.63 )
Transmission········································································································ Centrifugal clutch, Rigid driveshaft
Reduction ratio
BCZ2460S············································································································································ 1.462
BCZ2460TS ············································································································································· 2.1
Cutting head rotating direction·············································································· Counter-clockwise(Operator view)
Durability period··············································································································································300 hrs.
Standard Accessories
4 in. 2-line Head ···································································································································· 1 pc.
Goggle··················································································································································· 1 pc.
Tool Kit ·················································································································································· 1 pc.
Specifications are subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1. Loop handle
2. Suspention point
3. Stop switch
4. Throttle cable
5. Throttle trigger
6. Shaft tube
7. Cutting attachment guard
8. Cutting line head
9. Gear case
10. Spark arrester
11. Starter knob
12. Fuel tank
13. Primer
14. Choke lever
15. Air cleaner cover
2. Specifications
