RedMax BCZ400SW - Optional Blade Usage

US-17
BCZ400SW
U
S
•When sharpening, removing, or reattaching the blade, be
sure to wear thick, sturdy gloves and use only proper tools
and equipment to prevent injury.
■ CHOOSE THE BLADE
Choose a suitable recommended cutting attachment according to
the object to be cut. (OPT2)
• When replacing blade always be sure to use products which
have been certified by RedMax.
(1) 10” : 6298-11313
(2) 10” : 6298-15344
(3) 10” : 6298-14344
(4) Nylon line head
(A) Under growth
(B) Heavy weeds
(C) Light weeds
(D) Grass
WARNING
■ SET UP THE BLADE
1. Detach the line head assembly. (OPT3)
2. Put on the blade, making the marked
side face the shaft side, put the holder
and the cover on, and fasten the blade
with the nut. (OPT3)
TIGHTENING TORQUE :
130 – 174 in-lbs
(14.7 – 19.6 N.m.)
(1) Cover: 521 65 59-01 (Option)
(2)
Holder (B): 521 65 58-01 (STANDARD)
(3) Nut: 521 80 40-01 (STANDARD)
■ BALANCE UNIT
1. Put on strap and attach unit to strap.
2. Slide clamp up or down until unit
balances with head just touching on the
ground. (OPT4)
OPT4
(1)
(3)
(2)
OPT3

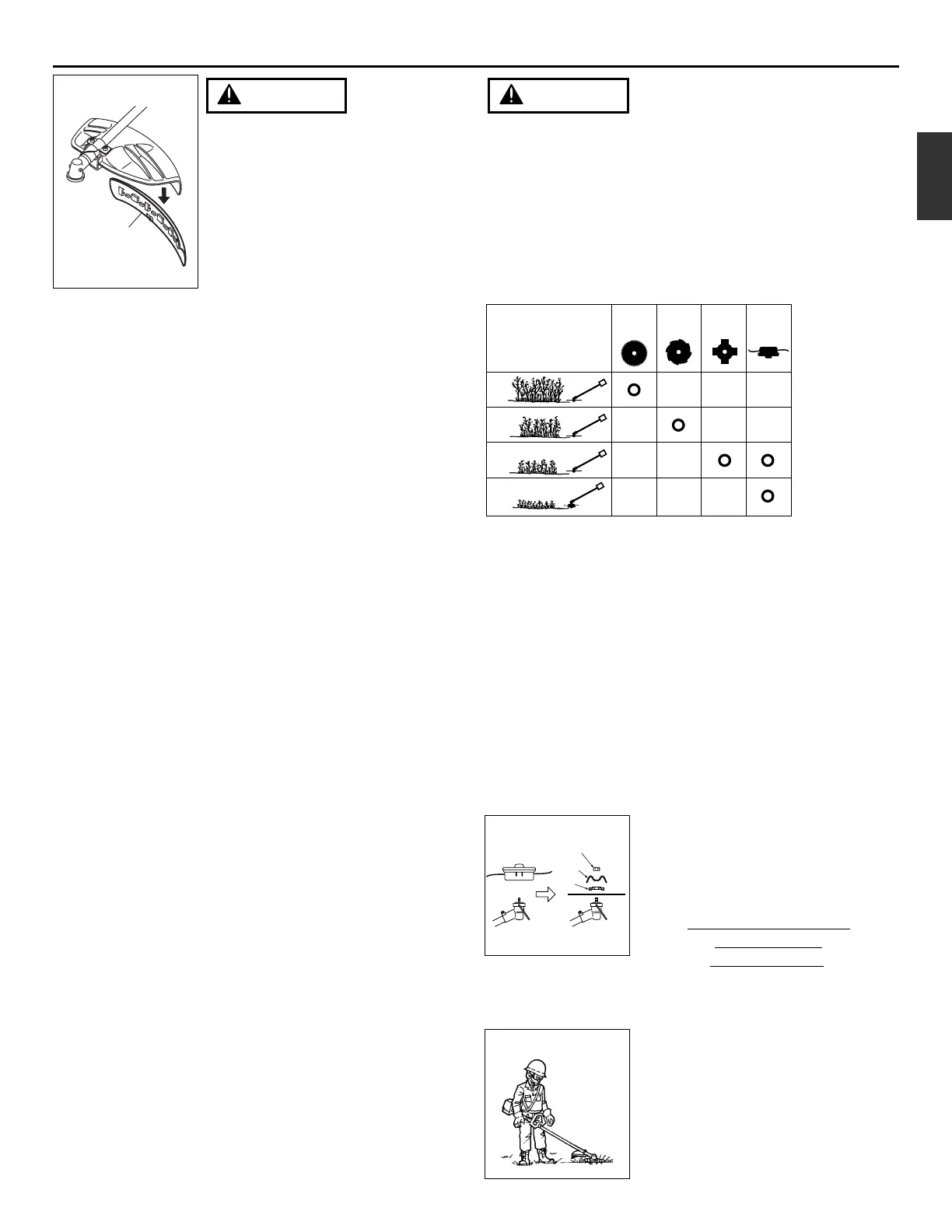

12. Optional blade usage
(1)
OPT1
(1) (2) (3) (4)
(A)
(B)
(C)
(D)
OPT2
• Remove the guard skirt, in case of
mounting the blade on this product
and use it. (OPT1)
(1) Guard skirt
WARNING
