RedMax CHT220 - Page 30

4
28
Centrifugal clutch

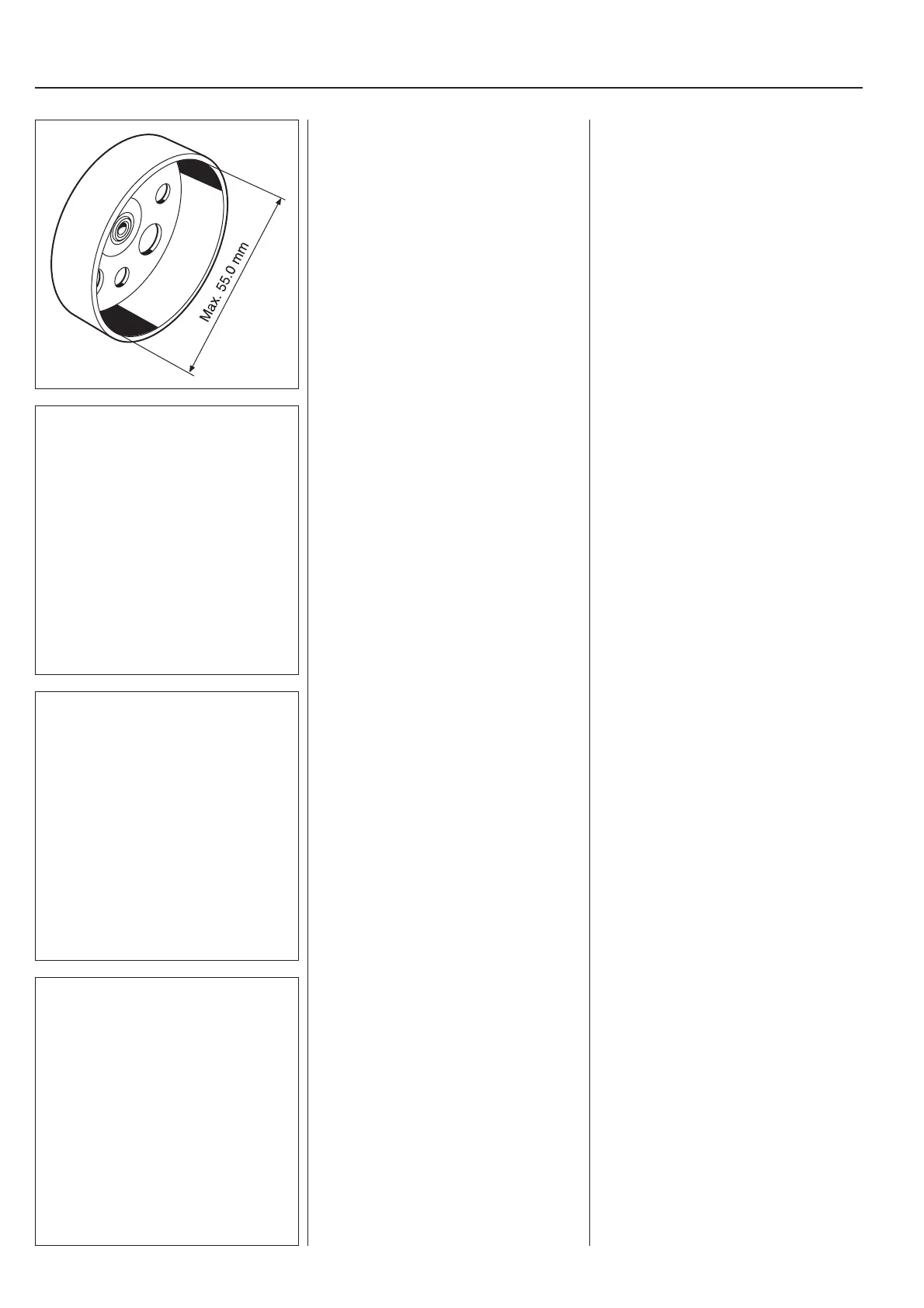

Check the inside diameter of the clutch
drum. If it exceeds 55,0 mm it should be
replaced.
Check the clutch drum for wear.
The diameter must not exceed 55,0 mm. If
this is the case replace the clutch drum.
Assemble the different components in the
reverse order as set out for dismantling.
Heat the gear housing before the ball
bearings are fi tted.
Assemble the different components in the
reverse order as set out for dismantling.
Heat the gear housing before the ball
bearings are fi tted.
