Fuel system
Throttle handle

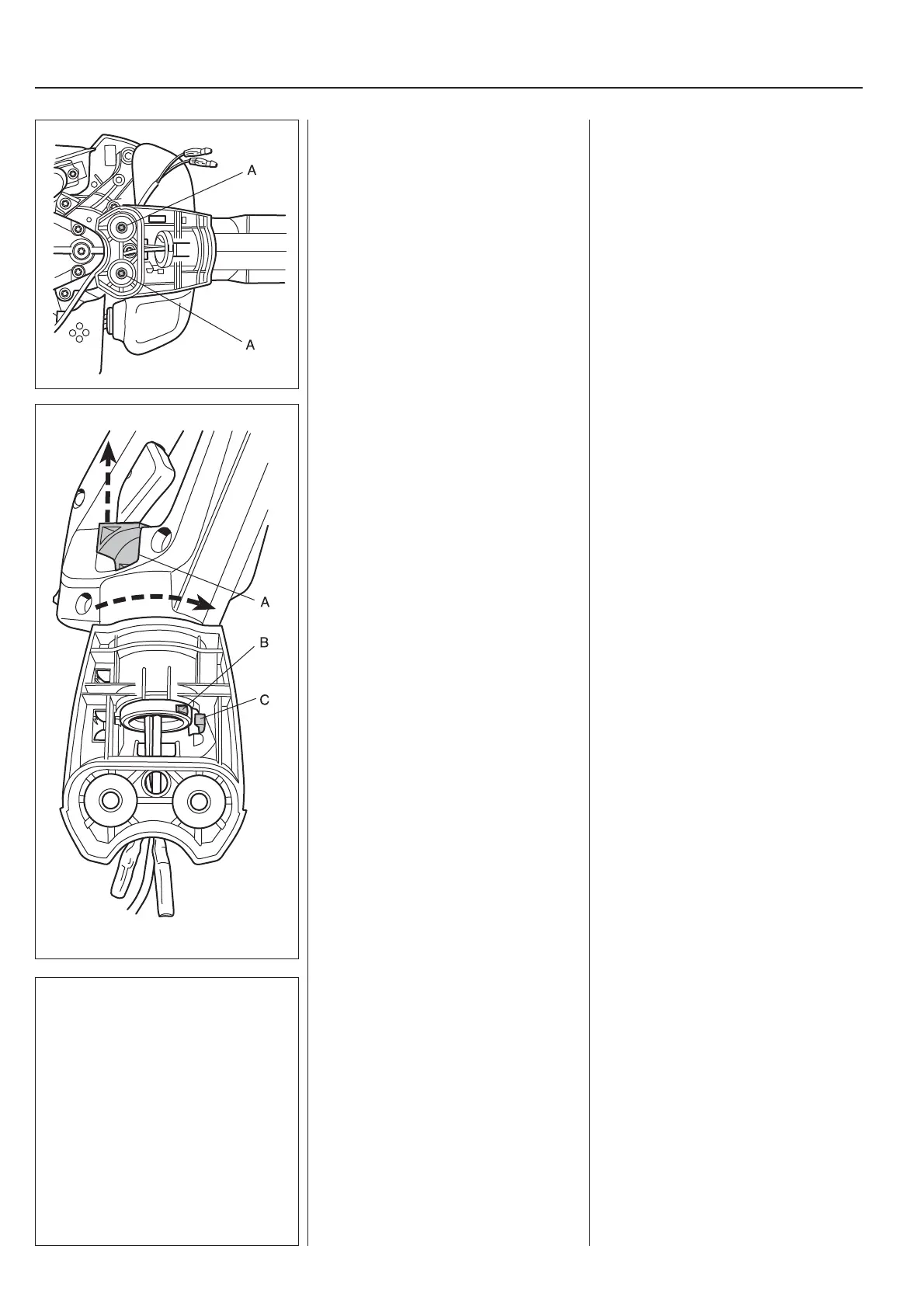

Remove the cover over the throttle cable
guide by the carburettor.
Dismantle the throttle cable.
Separate the short-circuit cables and
remove the screws (A).
Gashandtag
1. Remove the cover over the throttle
cable guide by the carburettor.
2. Dismantle the throttle cable from the
carburettor.
3. Separate the short-circuit cables.
4. Remove the screws (A).
Pull off the handle.
Turn the handle until the lug (B) reaches
the catch (C). The press the catch to let
the lug to pass. Turn the handle a further
1/4 turn.
Remove the handle together with the
throttle cable and the short-circuit cables
from the engine frame.
Pull the catch (A) backwards and turn
the handle anticlockwise until the lug (B)
reaches the catch (C). Then press out
the catch (C) with a small screwdriver
for instance so that the lug (B) can pass
when the handle is turned a further 1/4
anticlockwise turn.
