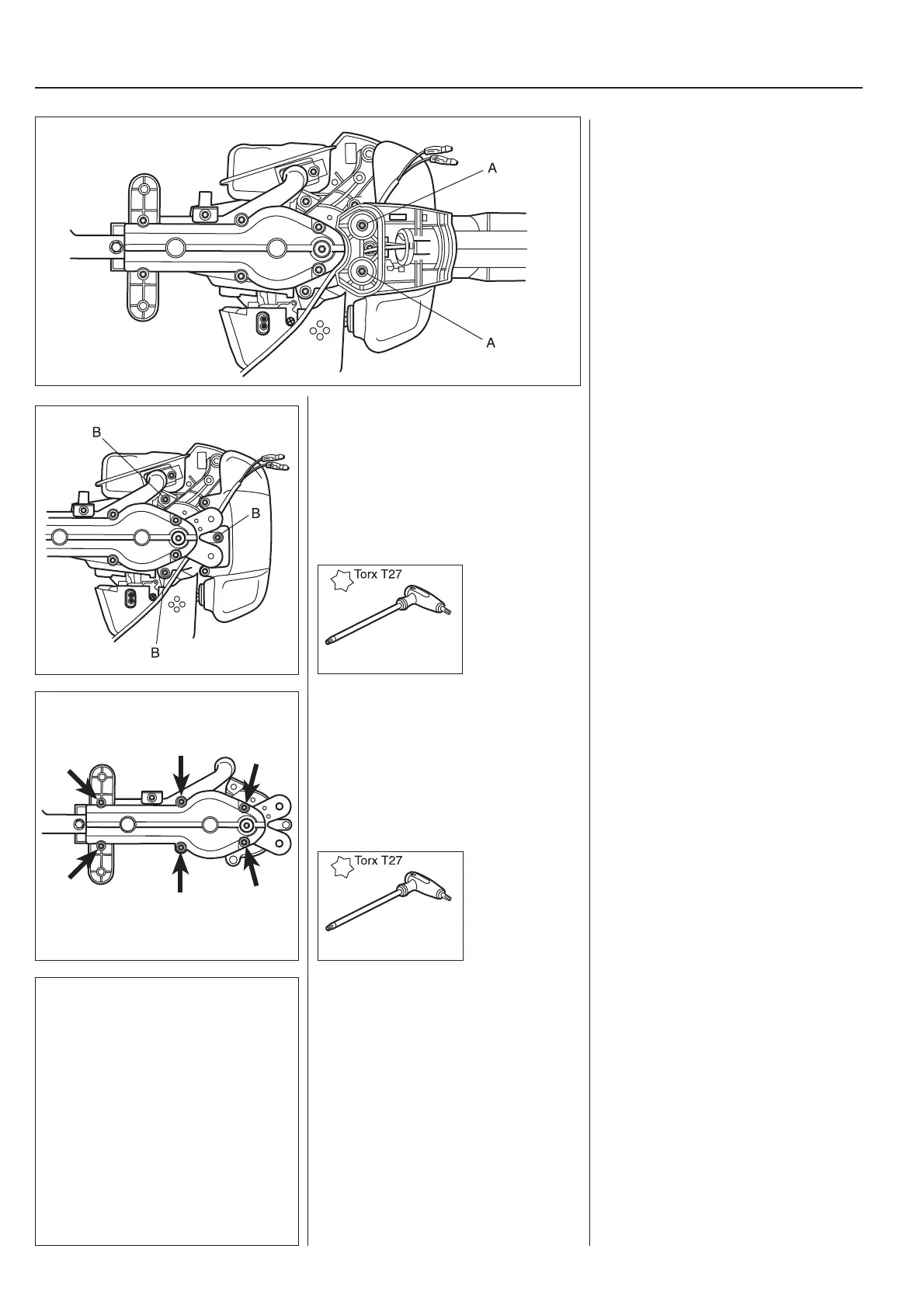

Cutting deck
Remove the cutting deck from the engine. Remove the three screws (B) and lift out
the cutting deck from the engine.
Note that the exhaust pipe does not have
to be removed.
Remove the knife protector, cutting knives
and the cover over the gear housing.
Remove the 6 screws and lift off the cover
and the gasket.
Carefully prise up if needed the back edge
of the cover with a screwdriver.
Cutting deck
Dismantling
Unscrew the spark plug.
Unhook the throttle cable from the
carburettor and separate the connections
to the short-circuit cable.
Remove the 2 screws holding the front
handle.
Lift out the engine and the fi tted
cutting
deck.
Remove the guard over the muffl er (2
screws). Remove the screws (A) and lift
off the rear handle.
