US-8
EBZ7500/RH

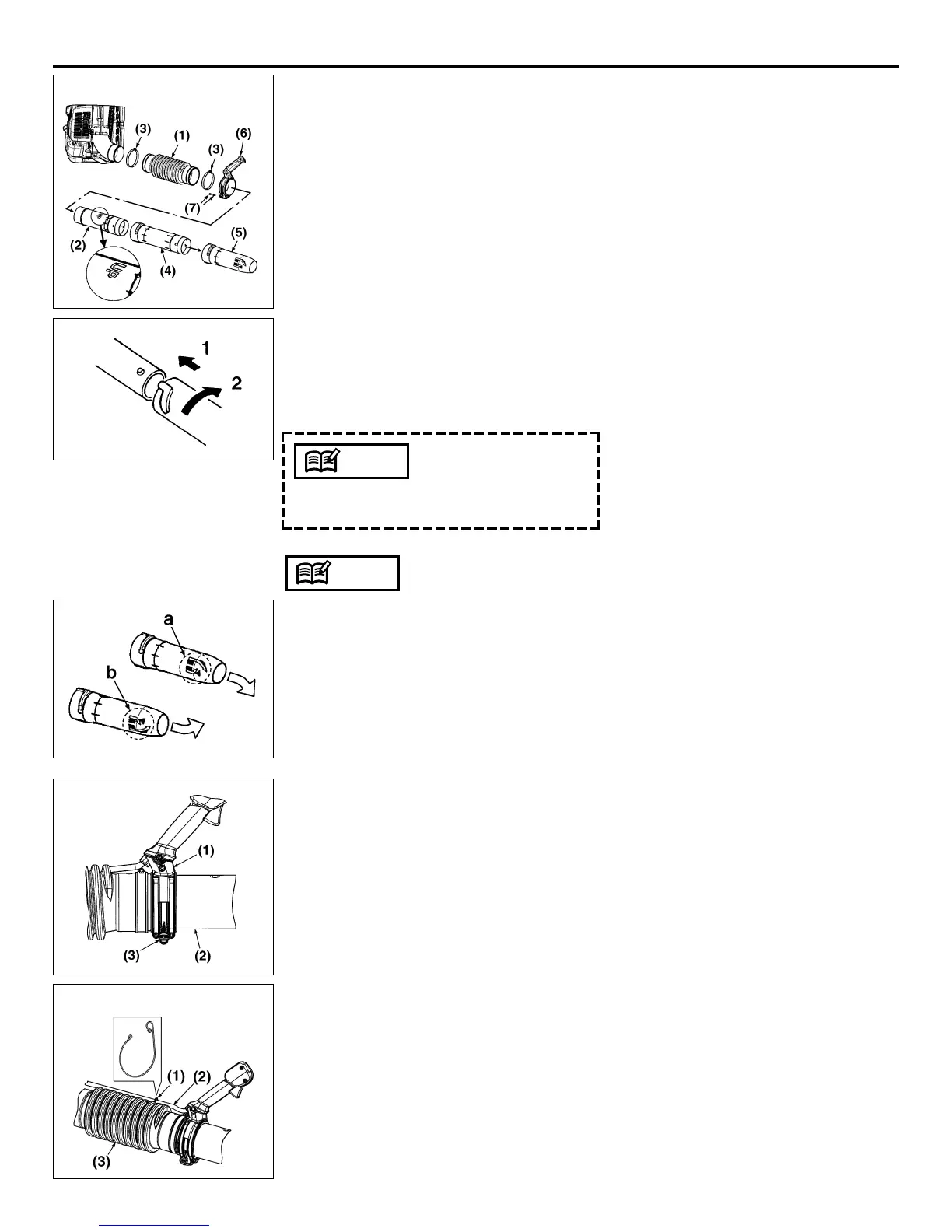

6. Set up
■ BLOWER
1. Connect the blower and pipe with flexible hose.
Clamp both ends of the flexible hose securely
with the hardware supplied with the unit. (F1)
2. When connecting the pipe (2) with flexible hose,
set "UP" mark on the pipe facing upward. (F1)
3. Align the protrusion and the groove provided on
the tube ends and twist the tube until
connection is locked up. (F2)
4. Apply grease to the pipes if necessary.
(1) Flexible hose
(2) Pipe
(3) Clamp
(4) Pipe, straight
(5) Pipe, end
(6) Grip assy [EBZ7500]
(7) Bolt
A light lubricant may be used to ease assembly
of flexible pipe to blower elbow.
"Pipe, end" can be connected with "Pipe, straight"
in two opposing directions, (a & b) as described in
(F3).
a: Operator can feel "Light-weight body" than
usual due to the air stream.
b: Operator can feel "Higher performance" due
to the air stream.
■ THROTTLE LEVER [EBZ7500RH]
• Set up the clamp to the swivel and tighten the
screw on the clamp.
(1) Cruise Control Ignition Switch Lever
(2) Pipe
(3) Knob bolt
■ THROTTLE CABLE [EBZ7500RH]
• Use the clamp to fasten the colgate tube
containing the throttle cable and the power
cable to the hose.
(1) Clamp
(2) Cable
(3) Flexible hose
