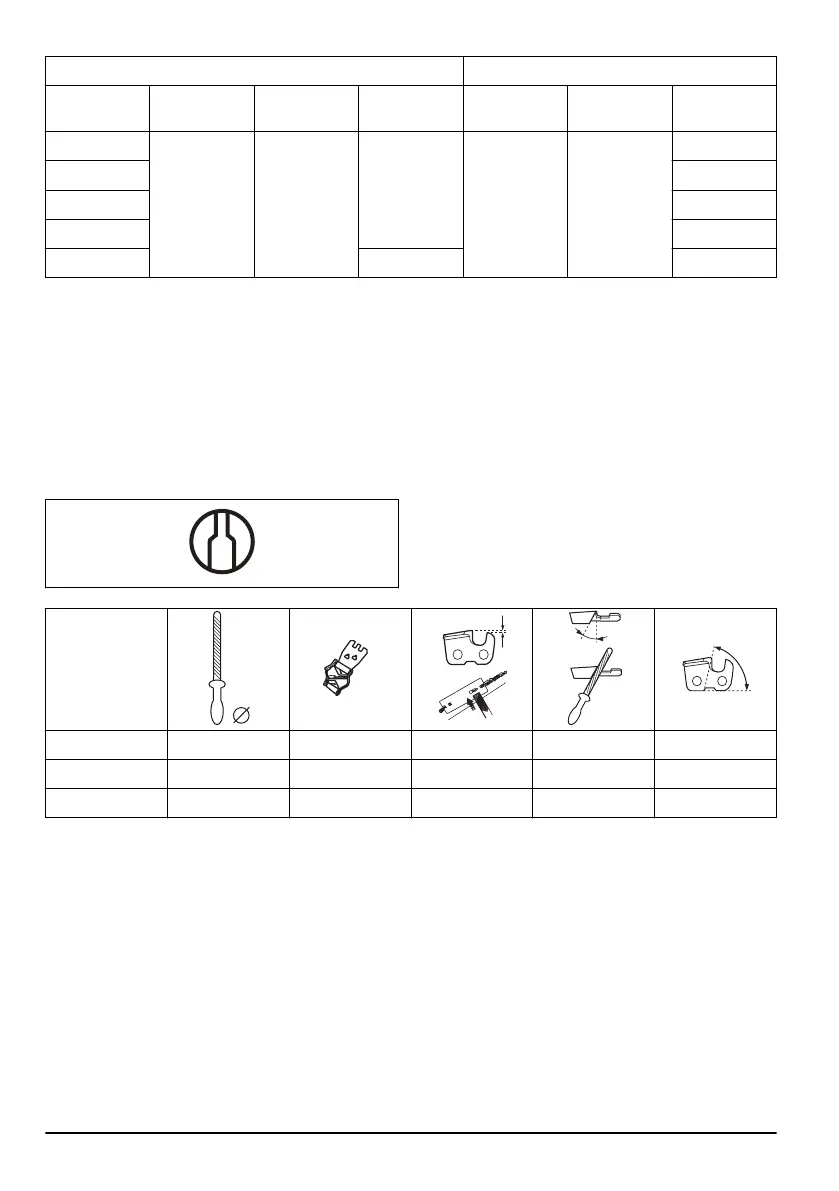

Guide bar Saw chain
Length, in Pitch, in Gauge, in Max. nose ra-
dius
Type Low kickback Length, drive
links (no.)
13 0.325 0.050 10T RedMax H22 Yes 56
15 64
16 66
18 72
20 12T 78/80
*
* For guide bars with nominal length 20”, two different
drive link counts exist. Always check information on the
guide bar to get the correct drive link count for a spare
saw chain.
Pixel
Pixel is a guide bar and saw chain combination that is
more light weight and designated to offer more energy
efficient use by cutting narrow cuts. Both guide bar and
saw chain need to be Pixel to get these benefits. Pixel
cutting equipment is marked with this symbol.
Filing equipment and filing angles
Using RedMax file gauge will give you the correct filing
angles. We recommend you to always use a RedMax
file gauge to restore the sharpness of the saw chain.
The part numbers are given in the table below.
If you are not sure of how to identify what saw chain you
have on your chainsaw, please visit www.redmax.com
for more information.
SP33G 3/16 in 586 93 84-01 0.030 in 30° 80°
H30 3/16 in 505 69 81-08 0.025 in 30° 85°
H25, H22 3/16 in 505 69 81-09 0.025 in 30° 85°
34 1513 - 001 - 25.06.2020
