ATTACHING THE WATER HOSE
EQUIPMENT
AIR AND
WATER OUTLET
APPARATUS
INSTALLING
AIR HOSE
APPARATUS

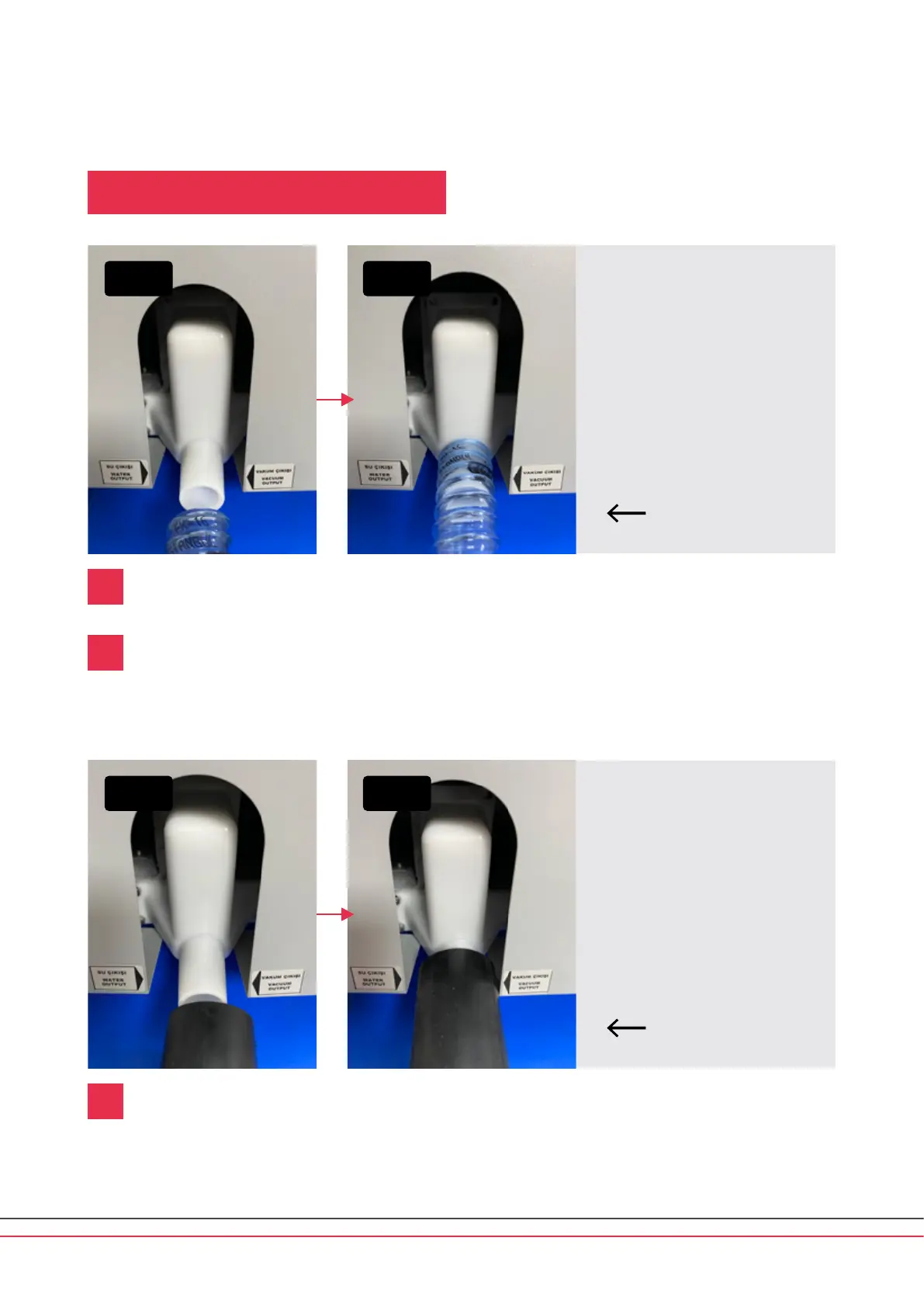

The air and water outlet apparatus has 1 outlet. When you want to work with water, connect the water
hose to this outlet. When you want to work with air, connect the air hose to this outlet.
The air hose apparatus is shown in Figures 3 and 4. This apparatus is used when connecting the vacuum device
to the machine. Aer dry running, the interior of the machine is cleaned by using the vacuum device. If you
want to switch to wet running, the interior of the machine must be thoroughly cleaned before operation.
Position the water hose as shown in gure 1 and aach it as shown in gure 2. When the water process is
complete, press the Auto Air Clean buon under the Utility/Maintenance tab and run the machine in air
cleaning mode for 15 minutes. Aer this operation, wipe the interior of the machine with a dry cloth.
When all of these operations are completed, you can switch to dry running.
1
3
2
Figure 1
Figure 3 Figure 4
Figure 2
