1. Establish position for the riser rail, and
mark the wall for the lower mounting
bracket. Make allowances for the tallest
person likely to use the shower regularly.
2. Remove covers from the wall brackets.
3. Position the top bracket and mark the wall
for the screw xing. Drill, plug the wall and
x the top bracket.
4. Fit the rail into the top bracket. Place the
remaining bracket onto the rail. Ensure
the rail is vertically aligned and mark the
wall. Remove the rail and bracket, then
drill and plug the wall.
5. Slide the height adjuster onto the rail,
release mechanism with push button.
6. Replace the rail assembly into the top
bracket. Ret the bottom bracket, ensuring
the larger rail hole is facing outwards and
x to the wall.
7. Snap covers over both brackets.
8. Firmly attach shorter conical end of exible
hose to shower handset making sure
sealing washer is in place.
NOTE: The adjustable height adjuster grips
the conical ends of the hose, not the handle of
the shower handset.
CAUTION
Check there are no hidden cables or pipes before drilling holes for wall plugs.
Exercise great care when using power tools near water.
The use of a residual current device (RCD) is recommended.

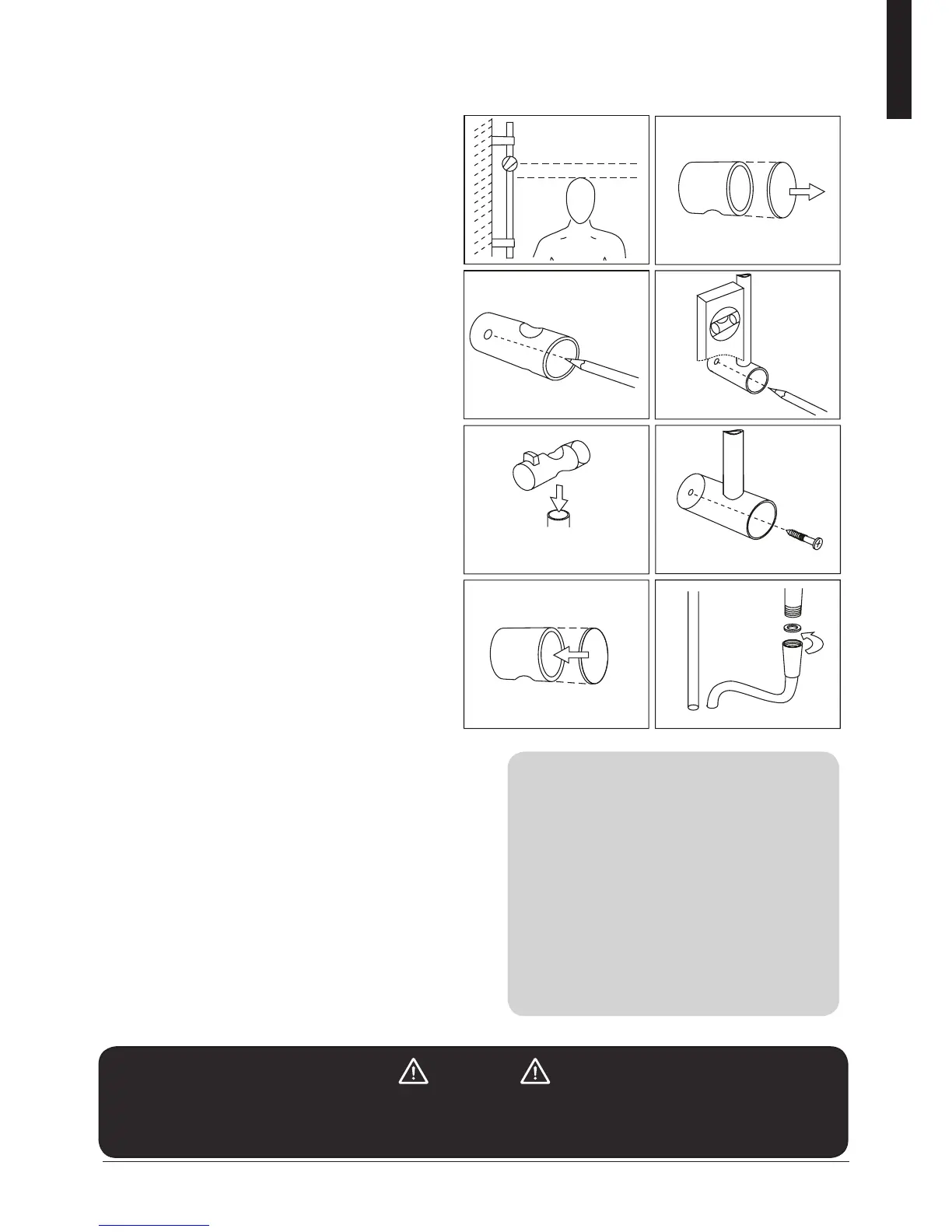

11. Riser Rail Fitting Instructions
1 2
3 4
5 6
7 8
• A piece of insulating or masking tape
applied to the wall before marking out
the fixing holes will help stop the drill
from wandering, particularly on tiled
surfaces.
• When working near a basin or bath,
insert the plug in the waste fitting so
that small parts cannot be lost.
• Take care not to drop accessories or
tools into basin or bath.
TIPS
