The earth continuity conductor of the electrical installation MUST BE effectively connected electrically to all
exposed parts of the appliances and services in the room in which the water heater is to be installed in
conformity with the current BS 7671 (I.E.E. wiring regulations)
Replace the side section along with seal.
Connect flying lead from front cover to PCB. Replace
the front cover and fasten in position with three screws.
d) Commissioning
The unit is supplied in TEMPLOCK mode. It is
recommended that the commissioning be carried out in
NORMAL mode.
Ensure the water and electricity are switched on to the
unit. Press the START/STOP button then change the
temperature setting to number 1 by pressing the
COOLER button 5 times.
Allow the unit to fill and wait for the water to come out of
the handset.
Change setting up to number 6 by pressing the warmer
button, check that the outlet temperature increases to
comfortable temperature and that, when pressing the
flow button the flow does change.
Check for leaks.
Press START/STOP button to switch the unit off.
This completes the commissioning. The unit then
can be set back into TEMPLOCK mode if required.
Demonstrate Operation To User.
Please leave these instructions with user for future
reference.
Changing The Operating Mode Templock/Normal
Warning. Switch Off The Electricity At The Isolating
Switch Before Removing The Cover.
After the unit is commissioned, it can be switched to
temperature lock mode or normal mode. Remove the
front cover taking care not to strain the flying lead.
Change the temp.lock switch from ON to OFF
depending on whether it is required or not.
(see fig. 15 for location). Replace and refasten the
front cover.
Switch on electricity. Check that the unit operates
correctly (see temperature lock operation section).

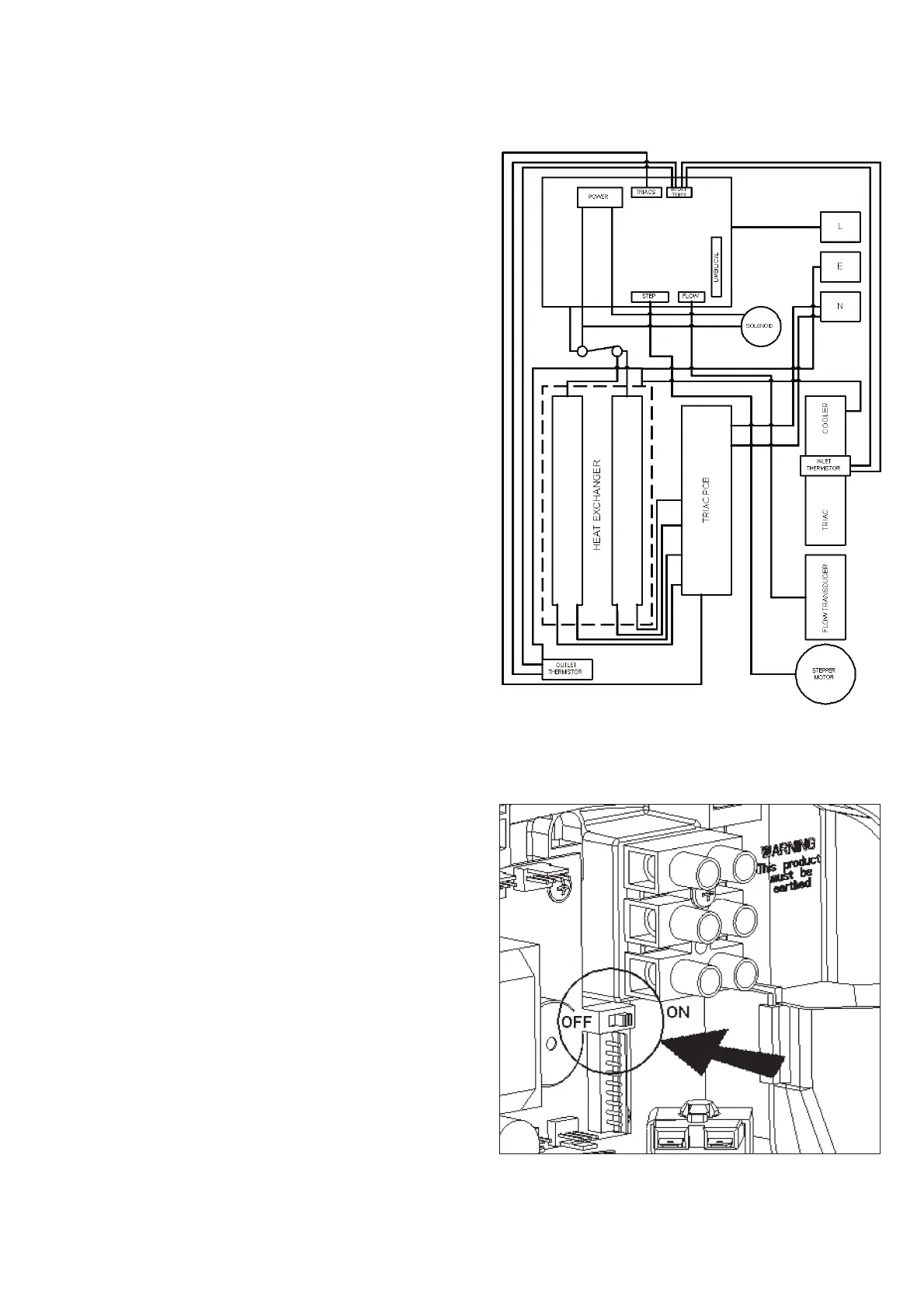

Fig. 14
