Chapter 3 Machine Installation and Directions
3.1 Laser Tube Installation

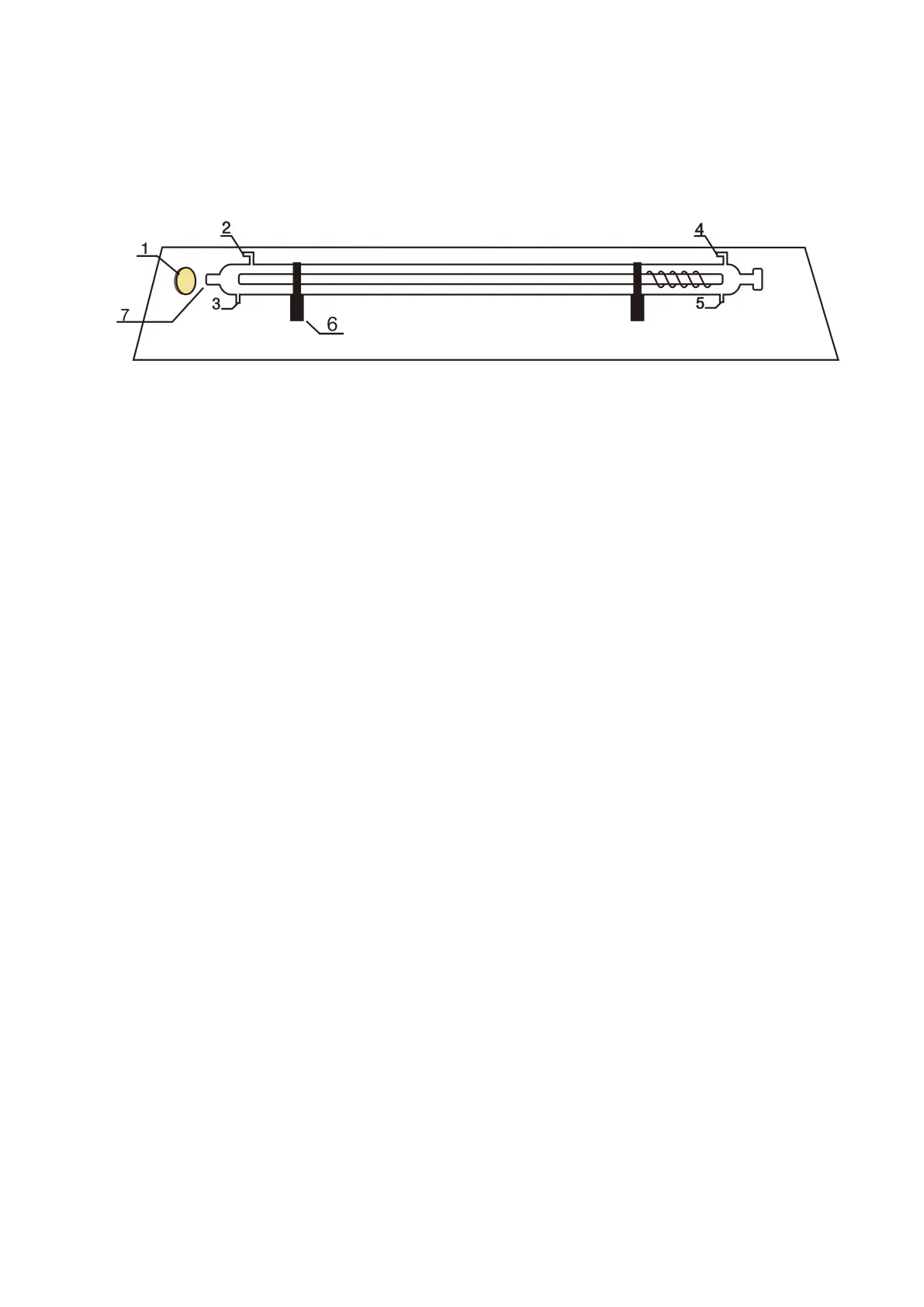

1·Mirror Holder 2·Water outlet 3Cathode- 4·Water in 5·Anode+ 6·Tube holder 7·Laser out
Please refer to the above Figure when you install the laser tube. According to Figure,
solder the anode wire (red/thick), the cathode wire (black/thin) in the correct location of
laser tube.(While soldering, please don’t keep the electric soldering iron touching the
welding point in so long a time in case it burn out the laser tube), poor soldering is not
allowed. After finish soldering, please package the welding point with high voltage tape.
Especially the anode wire must be isolated from the metal parts, otherwise will appear
leakage of electricity and damage the laser tube.
After soldering, connect the in/out water pipe with the entrance/exit on the laser
machine (The connection of laser tube must comply with the principle water come in
from the anode and out from the cathode).
3.2 Water Pump Installation
Fill water into water tank, the water must cover the water pump at least.
