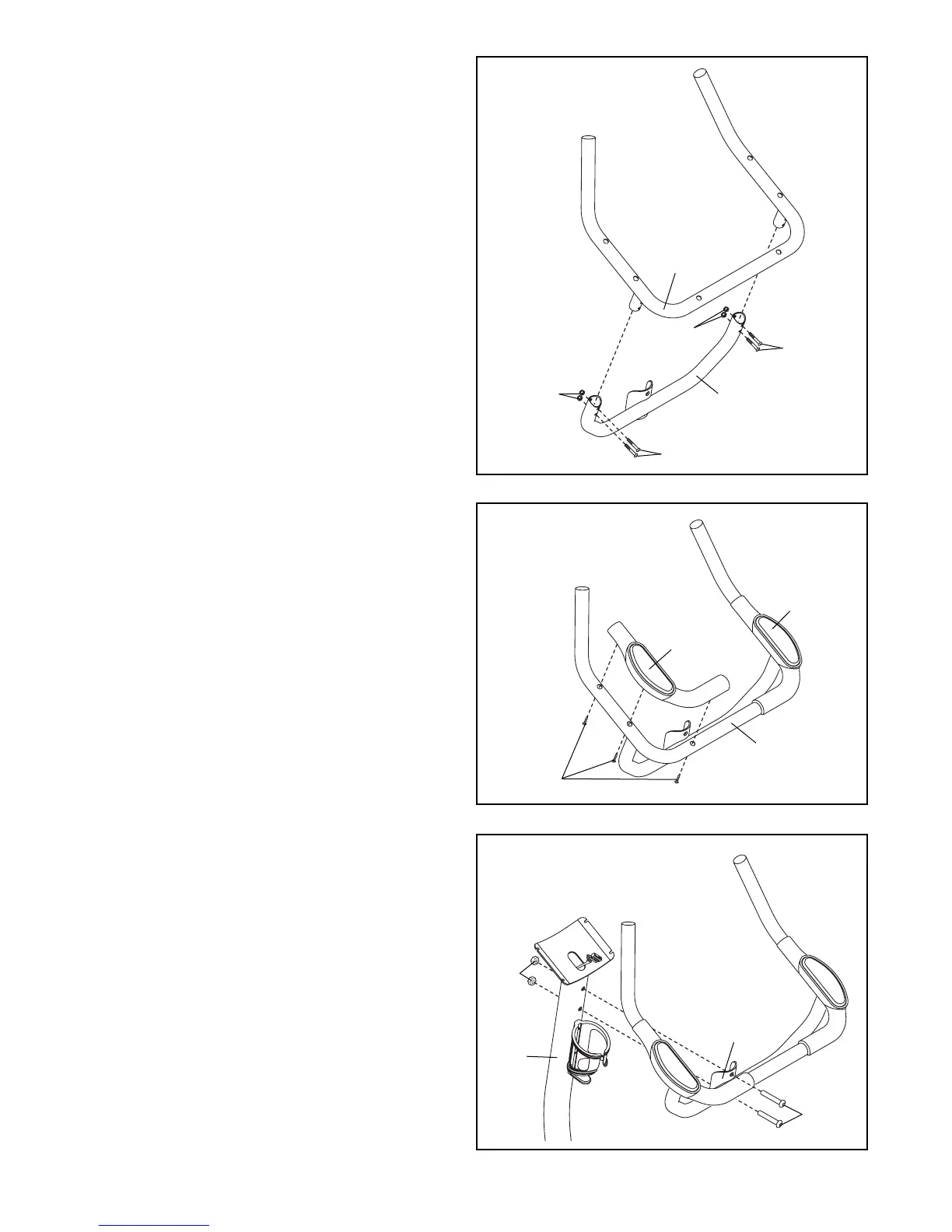

6. Attach the Left Arm Pad (49) to the Handlebar
(47) with three M4 x 25mm Screws (39).
Attach the Right Arm Pad (50) in the same
way.
47
39
50
49
6
7. Attach the Handlebar Bracket (48) to the Upright
(3) with two M10 x 73mm Button Bolts (33) and
two M10 Nylon Locknuts (52).
3
52
33
48
7
5. Attach the Handlebar (47) to the Handlebar
Bracket (48) with four M6 x 40mm Button Bolts
(53) and four M6 Nylon Locknuts (54).
54
53
47
48
53
54
5
To Next Page
