Reebok 51549 - Parts List; Main Hardware; Rim Hardware

22

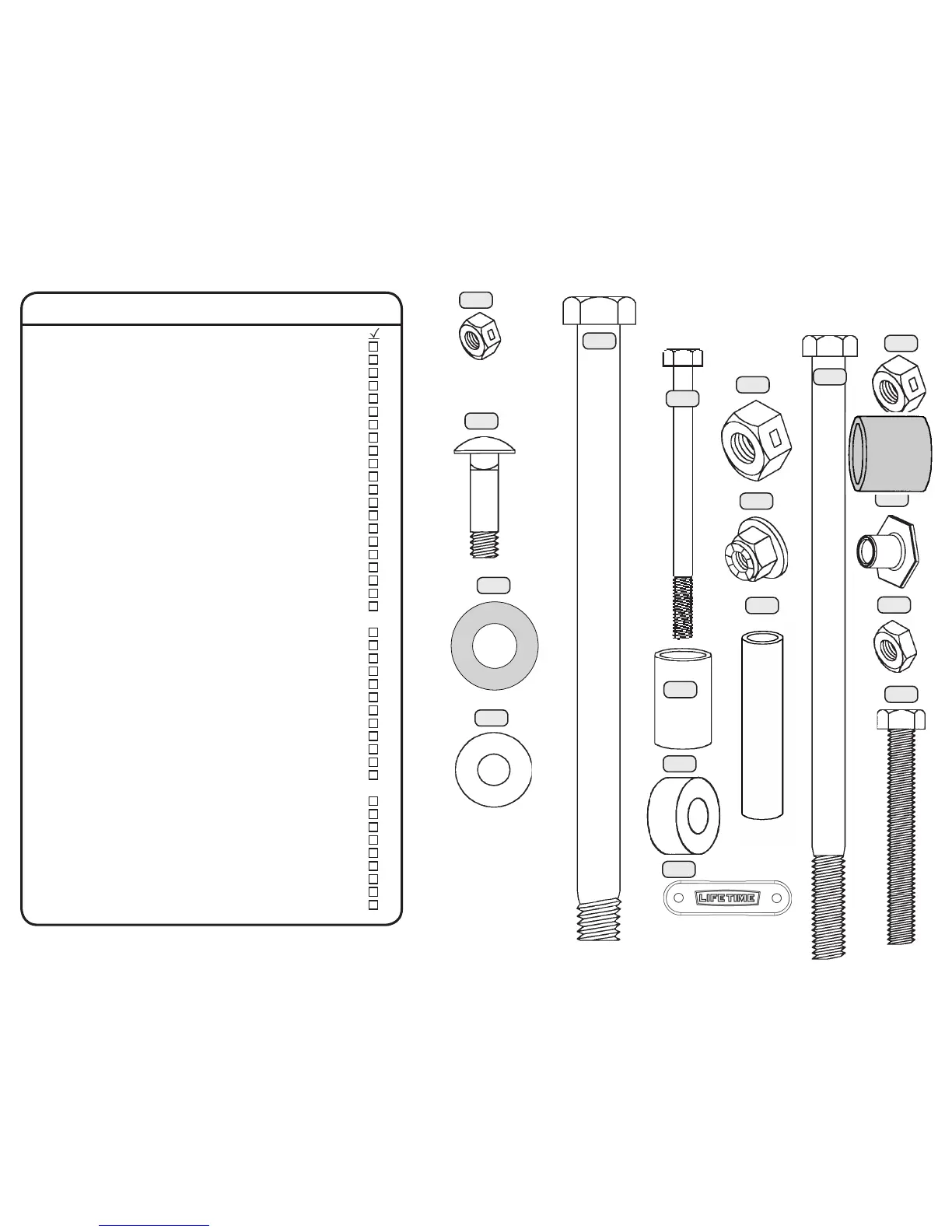

HARDWARE IS
ACTUAL SIZE
(Unless otherwise indicated)
PARTS LIST
ID Part # Description Qty
TP 1030702 Top Pole 1
MP 1030703 Middle Pole 1
BP 1030855 Bottom Pole 1
RB 1030781 Right Backboard Bracket 1
LB 1030762 Left Backboard Bracket 1
AT 1030881 Backboard 1
AA 500096 Pole Cap 1
AB 502005 Net 1
AC 502056 Plastic Guard 1
AD 504068 Counterbalance Spring 2
AE 510025 1/2” x 21 3/4” Axle 1
AF CB01599 Base 1
AG 510022 Wheel 2
AH 510035 Base Cap 1
WS FS16400 Warning Sticker ( one Applied) 2
AI F028010 Height Sticker 1
AJ 1030666 Rim 1
AK 1030669 Short Extension Arm 2
AL 1030670 Long Extension Arm 2
AM 1030674 Pole Brace 2
AN DA03800 Rebook Pole Pad 1
Main Hardware (HD9125B)
HA 300022 1/4” Centerlock Nut 2
HB 300029 1/2” x 7 1/8” Hex Bolt 5
HC 300110 1/4” x 2 3/4” Hex Bolt 2
HD 301008 1/2” Centerlock Nut 5
HE 302005 3/8” x 7” Hex Bolt 1
HF 302008 3/8” Centerlock Nut 1
HG 302011 5/16” x 1 1/4” Carriage Bolt 2
HH 302090 5/16” Nylock Flange Nut 2
HI 500013 9/16” x .592” Poly Spacer 4
HJ 500032 1/2” x 1/8” Spacer 4
HK 500037 1/2” x 1” Poly Spacer 2
HL 800324 1/2” x 2 5/16” Metal Spacer 2
Rim Hardware (1012253)
RA 300066 5/16” Hex T-Nut 2
RK 300128 5/16” Jam Nut 2
RC 302014 5/16” Flat Washer 2
RD 302056 Rubber Washer 2
RE 302060 5/16” x 2 1/2” Tap Bolt 2
RF 1009200 4 1/2” U-Bolt 1
HH 302090 5/16” Nylock Flange Nut 4
RJ 1001137 Compression Spring 2
RI 804033 Spring Retainer Plate 1
HB
HA
HD
HC
HG
HF
HH
HI
HJ
RC
RA
RE
RK
RD
RI
(Not actual size)
HL
HK
HE
