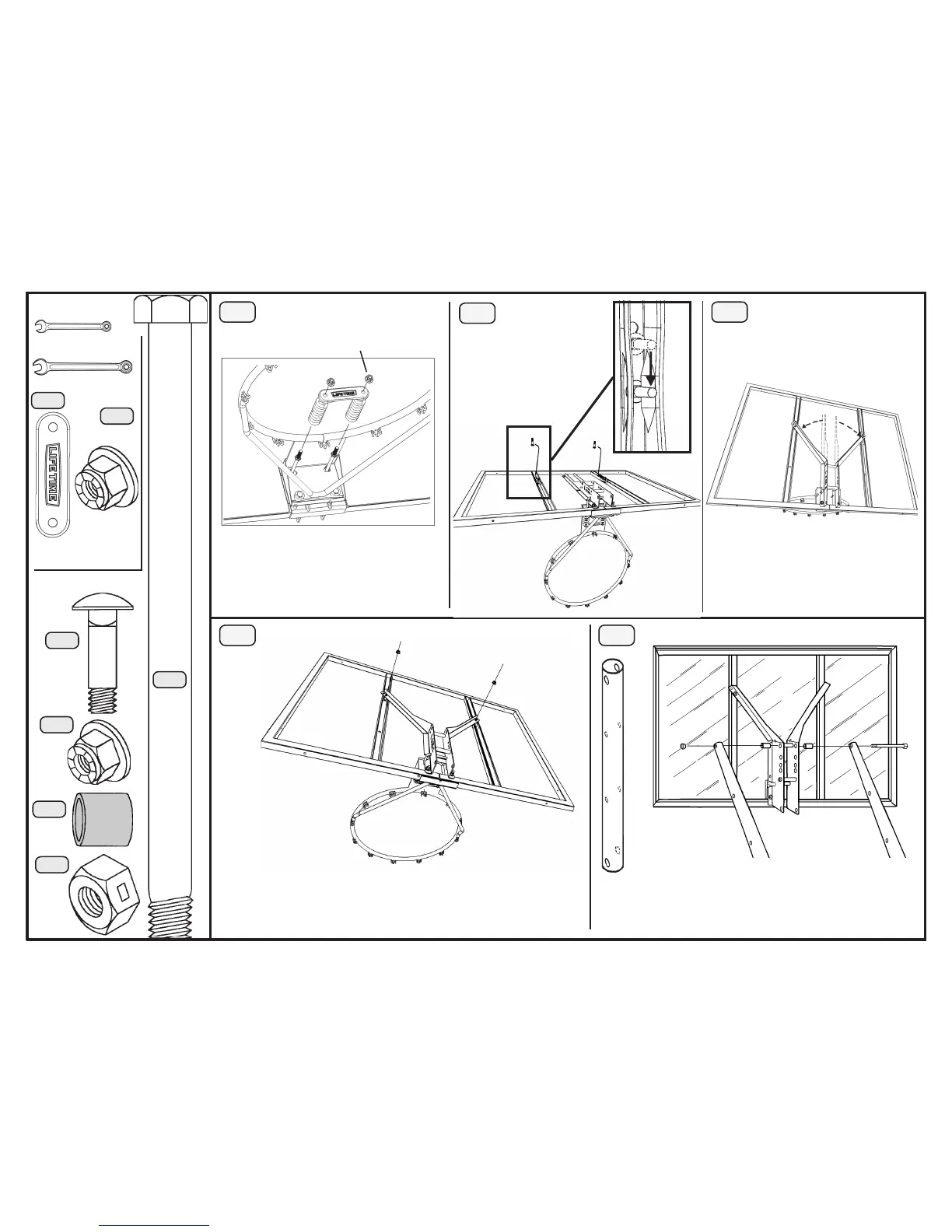

Reebok 51549 - Page 9

9
HD9125B
(2)
(1)
HH
RI
1012253
RJ
RI
HH
15
Only hand tighten
the Nuts (HH).
Tightening these Nuts later will adjust
the Rim tension.
HG
16
HG
HG
HG
The lower holes should go
over the Carriage Bolts.
Bend the Backboard Brackets (LB
& RB) out.
LB
RB
(Not actual size)
HH
HH
Do not overtighten
the Nuts (HH).
Completely tighten
all Rim hardware.
1/2” Wrenches
17
18
(2)
HH
(2)
19
HD
HI
(1)
(2)
HD
HI
AK
Tighten the Nut until it
is ush with the Bolt.
HI
HB
AK
AK
HB
(1)
3/4” Wrenches
