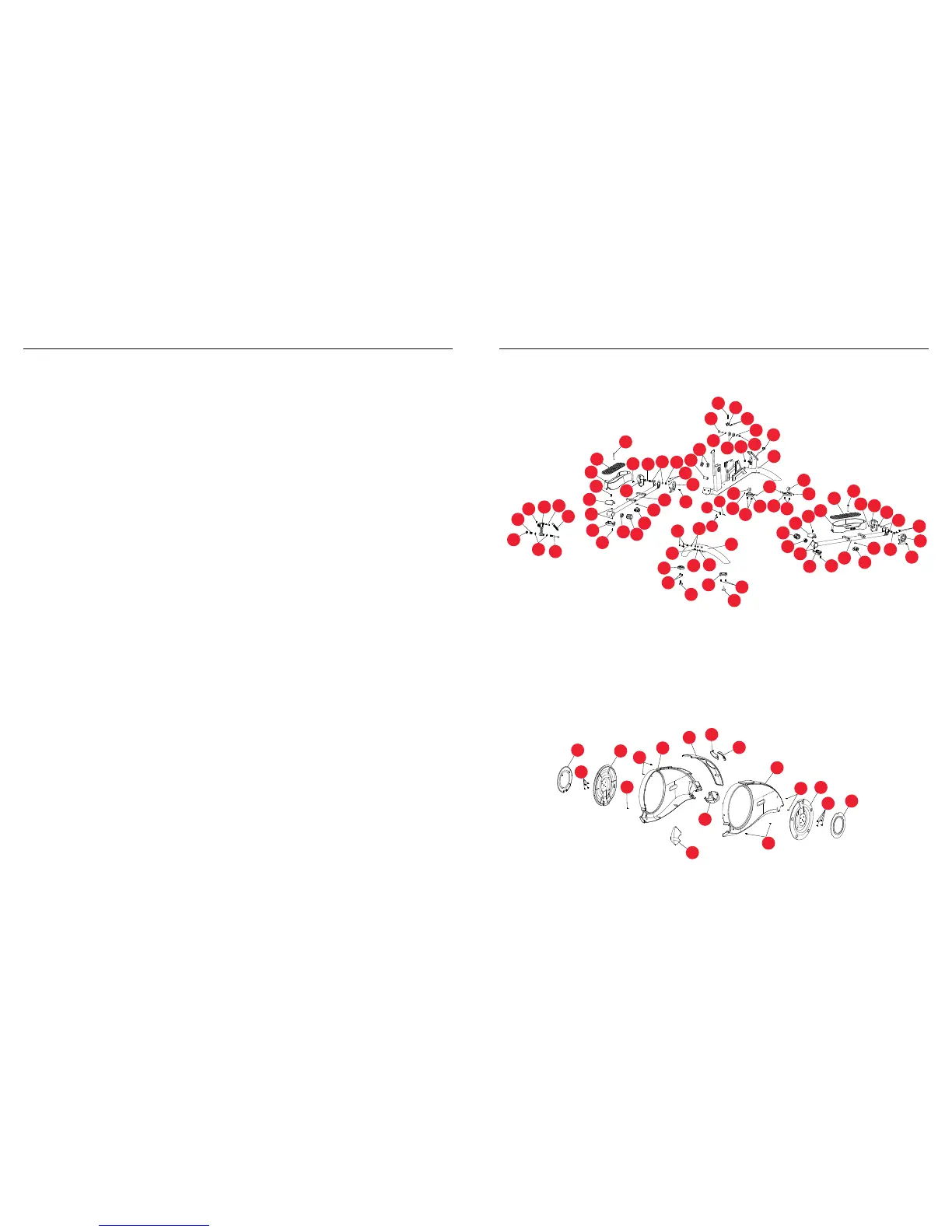

Parts ID
Diagram 3
IT S-373 8x17x1.5 Washer x 11
IT S-103 Rear Stability Tube x 1
IT S-814 8.5x20.5x2 Curve Washer x 10
IT S-213 Action Handlebar – Upper – Left x 1
IT S-301 Side Cover – Outside x 2
IT S-302 Crank Disc x 2
IT S-352 Chain Cover – Upper x 1
IT S-304 Main Chain Cover – Left x 1
IT S-349 Main Chain Cover – Right x 1
IT S-346 Upright Lower Cover – Left x 1
IT S-344 Upright Lower Cover – Right x 1
IT S-382 Plastic Insert x 4
IT S-872 4x12 Screw x 8
IT S-364 Rear Stability Tube Cover – Inner x 1
IT S-340 Rear Stability Tube Cover – Outer x 1
IT S-565 M4x45 x 1
IT S-566 Tension Bracket Adjustment Base x 1
IT S-815 M10x39 x 1
IT S-567 10x20x1.5 Washer x 6
IT S-510 6300 Bearing x 2
IT S-539 M10x78 Bolt x 1
IT S-568 M5x8 Screw x 2
IT S-601 10x26x2 Washer x 2
IT S-602 Ø 1.5X15X25X5 Spring x 1
IT S-522 Ø 1.8X12X85X22 Spring x 1
IT S-701 Foot Plate Tube – Left x 1
IT S-702 Foot Plate Tube – Right x 1
IT S-703 Foot Plate – Left x 1
IT S-821 M10x67 x 2
IT S-422 M10 Nut x 3
IT S-707 Foot Plate – Right x 1
IT S-708 Foot Plate Tube Bushing x 2
IT S-709 2203 Bearing x 2
IT S-710 Rear Foot Plate Tube Rear Cover – Lower x 2
IT S-711 Rear Foot Plate Tube Rear Cover – Upper x 2
IT S-712 Front Foot Plate Tube Front Cover – Left x 2
IT S-713 Front Foot Plate Tube Rear Cover – Right x 2
IT S-714 Foot Plate Fix Bolt M8x65 x 2
IT S-715 Foot Plate Fix Knob x 2
IT S-842 Console Housing Upper Cover x 1
Diagram 4
IT S-802 4x15 Screw x 19
IT S-301 Side Cover – Outside x 2
IT S-302 Crank Disc x 2
IT S-352 Chain Cover – Upper x 1
IT S-304 Main Chain Cover – Left x 1
IT S-349 Main Chain Cover – Right x 1
IT S-346 Upright Lower Cover – Left x 1
IT S-307 Upright Lower Cover – Right x 1
IT S-382 Plastic Insert x 4
IT S-872 4x12 Screw x 8
IT S-364 Rear Stability Tube Cover – Inner x 1
IT S-340 Rear Stability Tube Cover – Outer x 1
