03

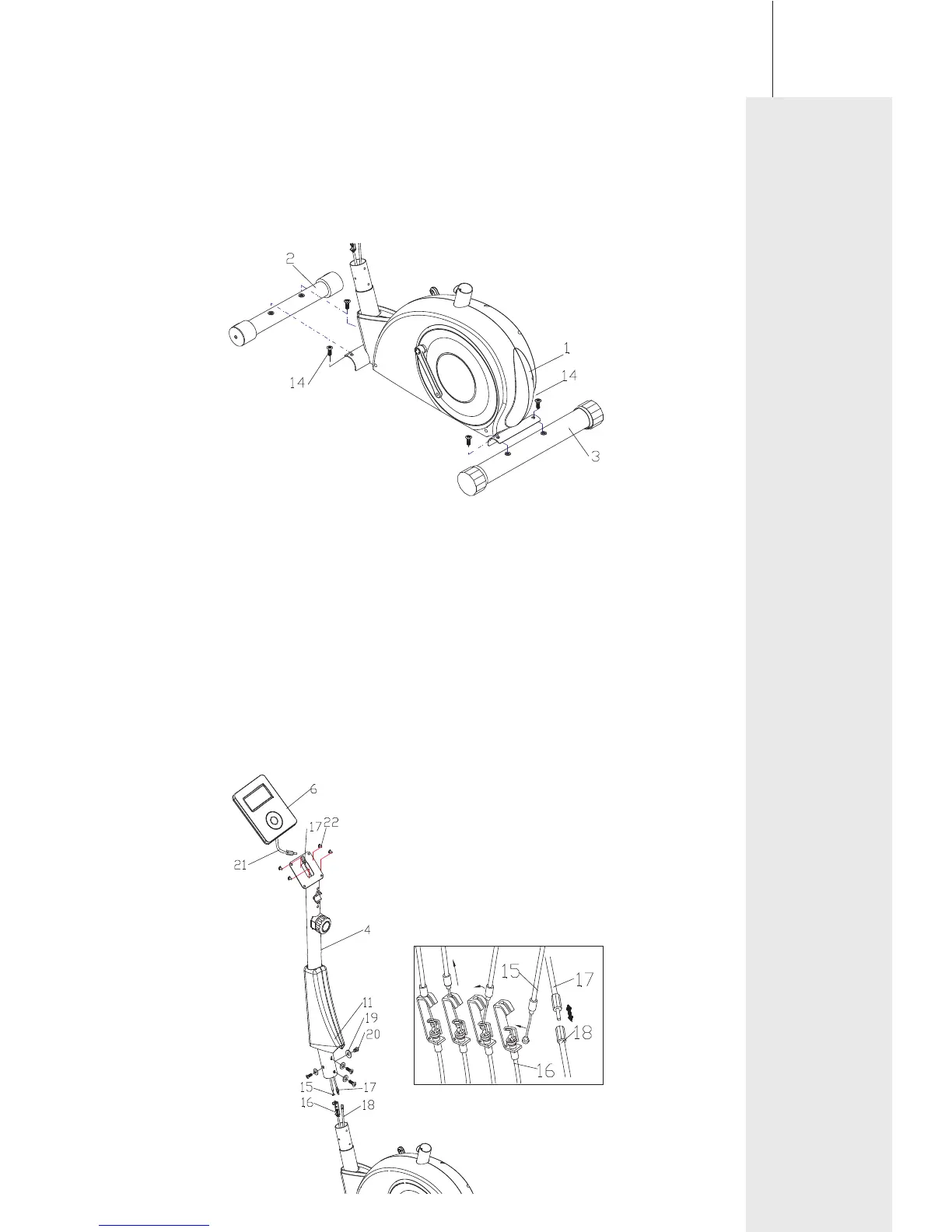

Step 1:
1-1: Attach Rear Stabilizer (3) to Main frame (1), fasten with Allen
Head Bolts (14), tighten with Allen Key.
1-2: Attach Front Stabilizer (2) to Main frame (1), fasten with Allen
Head Bolts (14), tighten with Allen Key.
ASSEMBLY STEPS
Step 2:
2-1:
2-2: Connect Middle Computer Wire (17) with Lower Computer Wire
(18).
2-3: Connect the Upper Tension Wire (15) with Lower Tension Wire
(16).
2-4: Insert Front Post (4) into Main frame (1), fasten with Allen Head
Bolt (20) and Arch Washers (19) tighen with Allen Key.
2-5: Connect the computer Wire(21) with the Middle computer wire(17).
Slide Front Post Cover (11) onto Front Post (4).( Lift it to the
position as the picture shown.)
Place the Front Post Cover (11) onto Main Frame (1).
Install Computer (6) onto Front Post (4) fasten by Screws (22) tightly
as shown.
To Next Page
