Reebok PURE - Assembly Steps - Part 2; Step 3: Handlebar and Cover Installation; Step 4: Seat Post and Seat Assembly

04

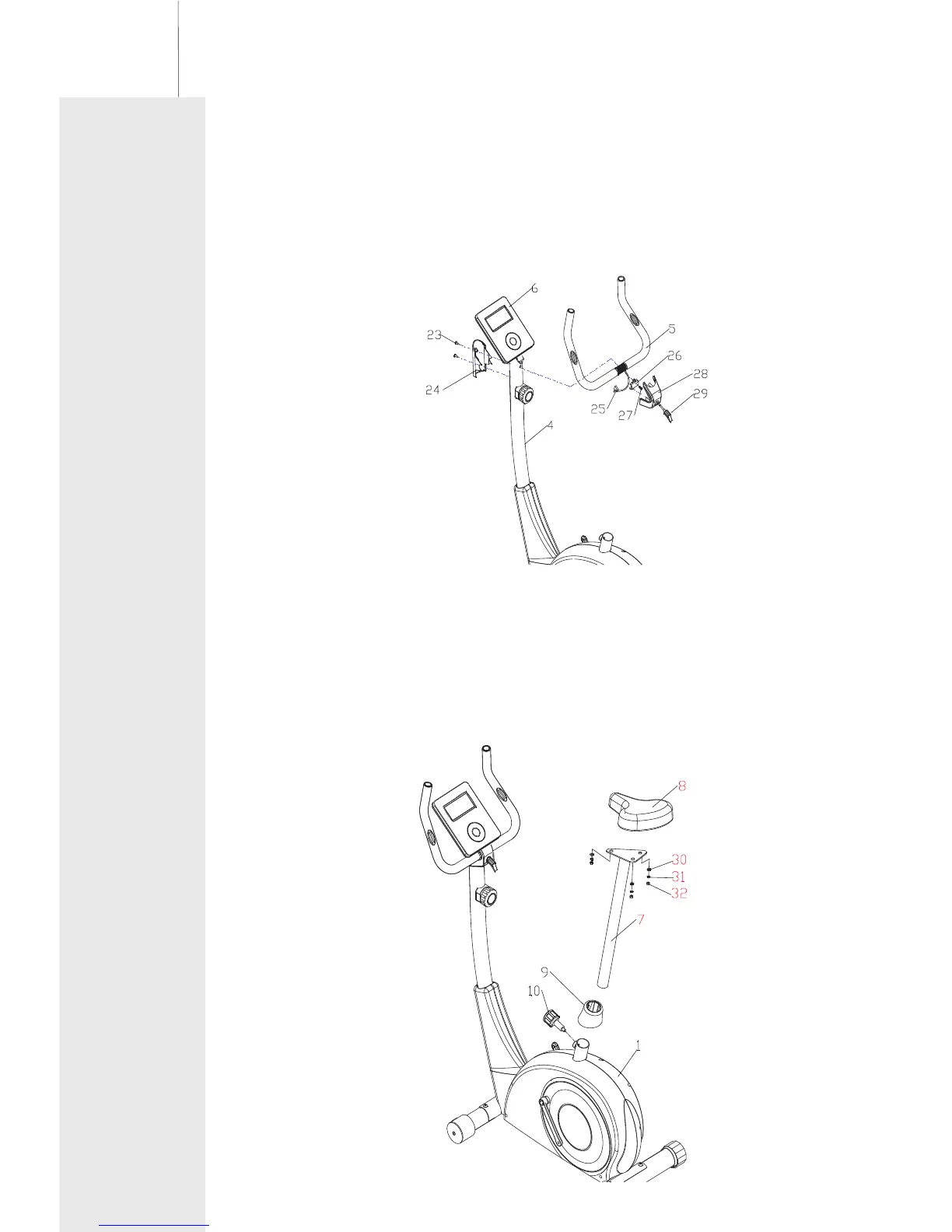

Step 3:
3-1: Secured Handlebar (5) onto Front Post (4), with Bracket (26),
fasten with Allen Head Bolt (27).
3-3: Plug the pulse sensor wire(25) to the back hold of the computer(6)
as shown below.
3-2:
with L shape Knob (29).Now fix Rear Bracket Cover (24) on the other side
and fasten with Screws(23).
Fix Front Bracket Cover (28) onto Handlebar (5), fasten to Handlebar (5)
Step 4:
4-1: Attach Seat (8) to Seat Post (7), fasten with Flat Washer (30),
Spring Washer (31), Nylon Nut (32).
4-2: the Quick Release Knob (10) from the Main Frame(1).
Place the Seat Post Cover (9) onto the Main Frame (1) as the
picture shown.
4-3: Insert Seat Post (7)into Main Frame(1), then line up the hole
and secure the seat in position with Quick Release Knob (10).
Remove
