9

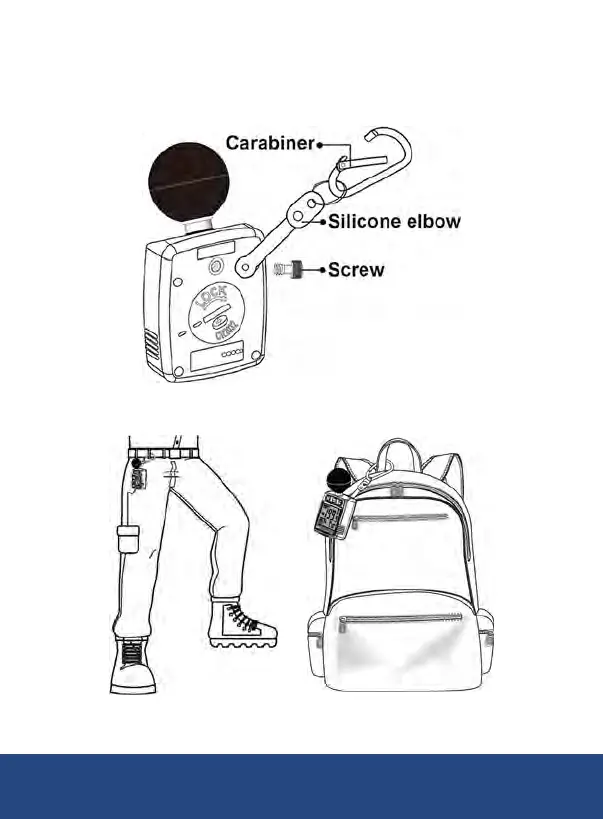

To hang the R6210, start by attaching the silicone elbow to the meter with
the included fastening screw into the mount located on the back of the
meter as shown in Figure 3. When attached, the meter can now be
fastened to the user's waist or backpack as shown in Figure 4 and 5.
Figure 3
Figure 5Figure 4
continued...
