REED 00 MODEL: C50SS
TRAILER CONCRETE PUMP
OPER.
PAGE 03
CONTROL FAMILIARIZATION

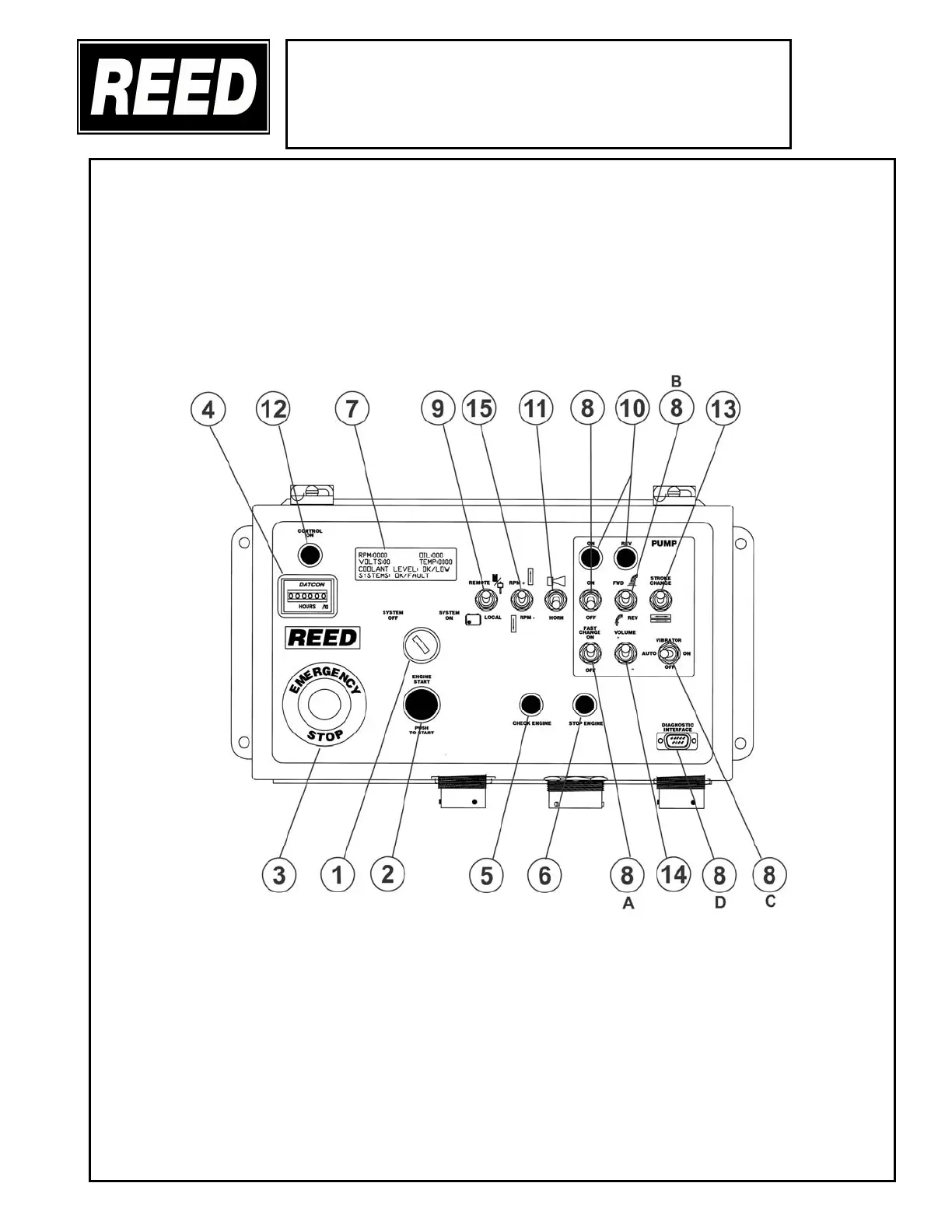

The controls for operation of the 00 MODEL C50SS can be found and are located on the
right (curb) side of the machine. A control box is provided and contains all the main
function instruments, switches, and indicators. Hydraulic gauges and throttle control are
on lower portion of hydraulic tank. The volume control is adjacent to the main control.
Each location or panel is dedicated to the operation of certain functions. These are noted
herein:
1. SYSTEM POWER SWITCH
This is a two (2) position key switch and is used to control the engine. Turn key to
SYSTEM ON position to energize electrical circuit. Shut down engine by turning key
to SYSTEM OFF position.
2. ENGINE START SWITCH
The GREEN BUTTON is a pushbutton switch. By pushing the button, along with the
key switch in the SYSTEM ON position, will start the engine.
REVISION:
