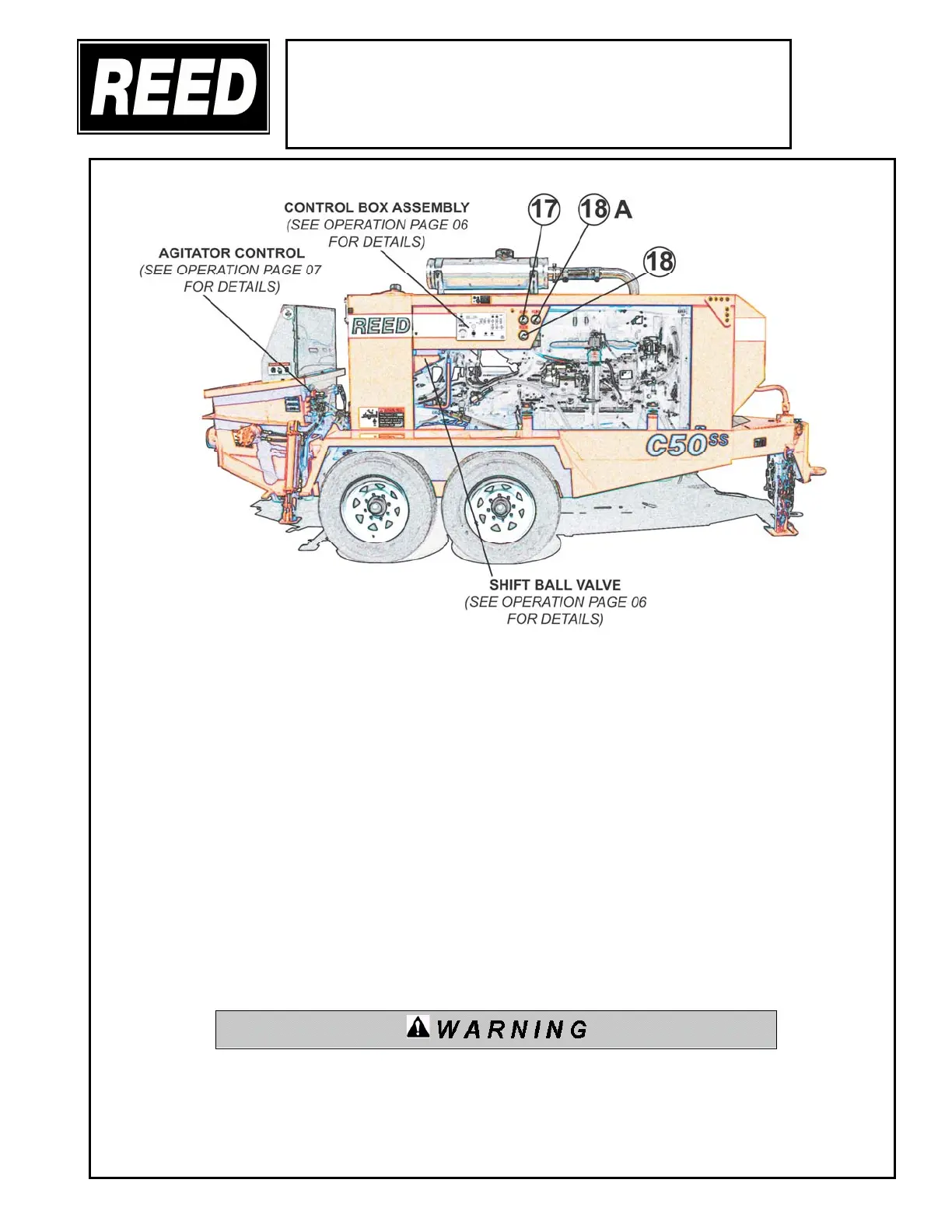

17. PRESSURE GAUGE – 6000 PSI
This hydraulic pressure gauge is used to indicate the main system hydraulic pressure
being applied to the hydraulic cylinder pistons of CYL A OR CYL B on the forward
stroke.
18A. PRESSURE GAUGE – 600 PSI
This hydraulic pressure gauge is used to indicate the hydraulic pressure of the main
pump charge system.
18. PRESSURE GAUGE – 3000 PSI
This hydraulic pressure gauge is used to indicate the hydraulic pressure of the swing
tube shift accumulator circuit.
DO NOT VARY THE PUMP OUTPUT BY VARYING ENGINE SPEED.
