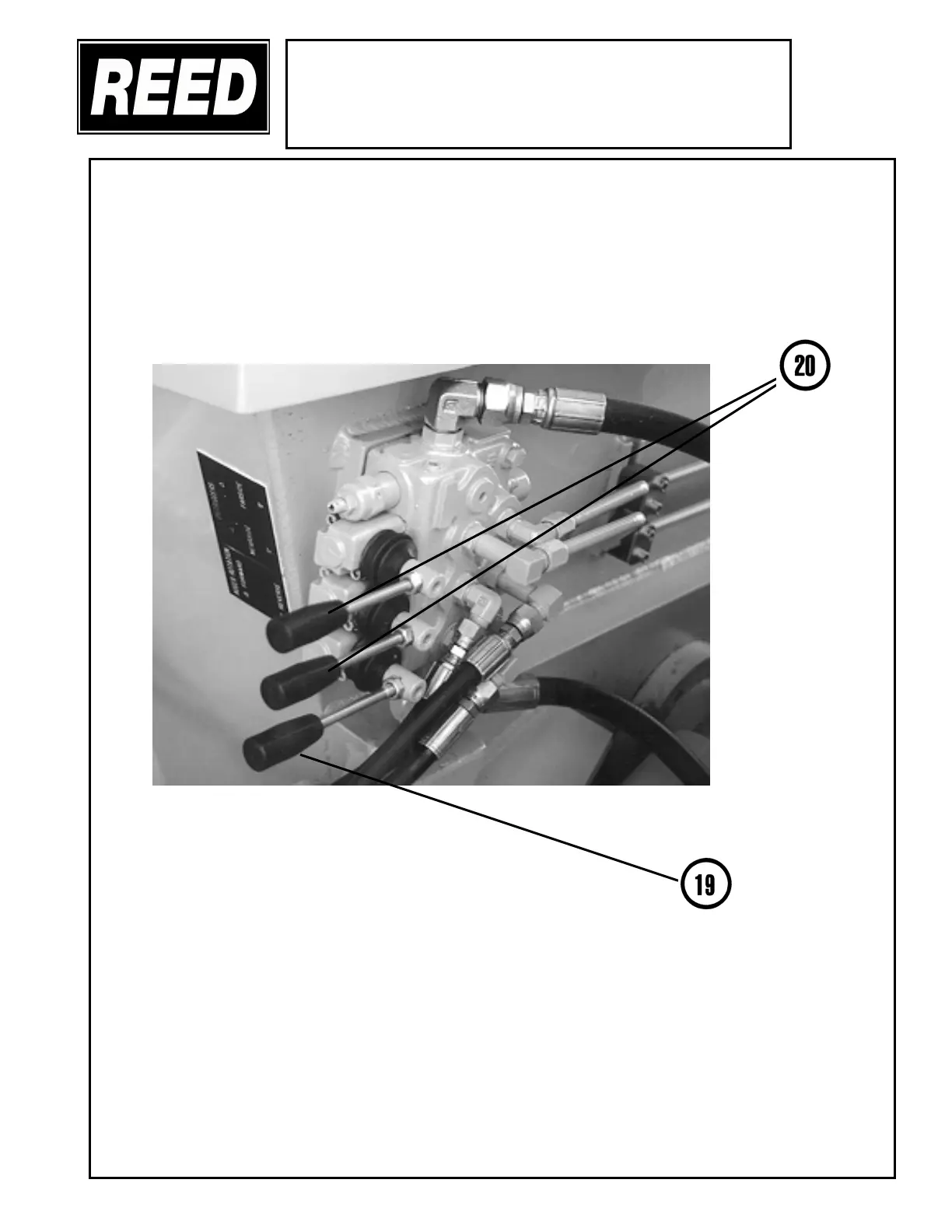

19. AGITATOR CONTROL
The agitator or remixer function is controlled by a manually operated single spool
directional control valve. The valve is used to control ON-OFF function as well
as the rotation direction of the hydraulic motor. With lever in CENTER position, the
hydraulic flow to the motor is OFF.
20. OUTRIGGER CONTROL (IF EQUIPPED)
As part of the same valve bank as the agitator, the two (2) additional valve sections
are used to control the outriggers. One lever controls the right outrigger; the other
controls the left outrigger. Lever in CENTER position, the flow is OFF.
