Storage Humidity: <80%
Operating Altitude: 7000ft. (2000 meters) maximum
Weight: 0.753lb (342g) includind holster
Size : 7.36” x 3.2” x 2.0” (187 x 81 x 50mm)
(includes holster)
Safety: This meter is intended for origin of installation
use and protected, against the users, by double
insulation per EN61010-1 and IEC61010-1 2nd
Edition (2001) to Category IV 600V & Category
III 1000V; Pollution Degree 2. The meter
also meets UL 61010-1, 2nd Edition (2004),
CAN/CSA C22.2 No. 61010-1 2nd Edition
(2004), & UL 61010B-2-031, 1st Edition (2003)

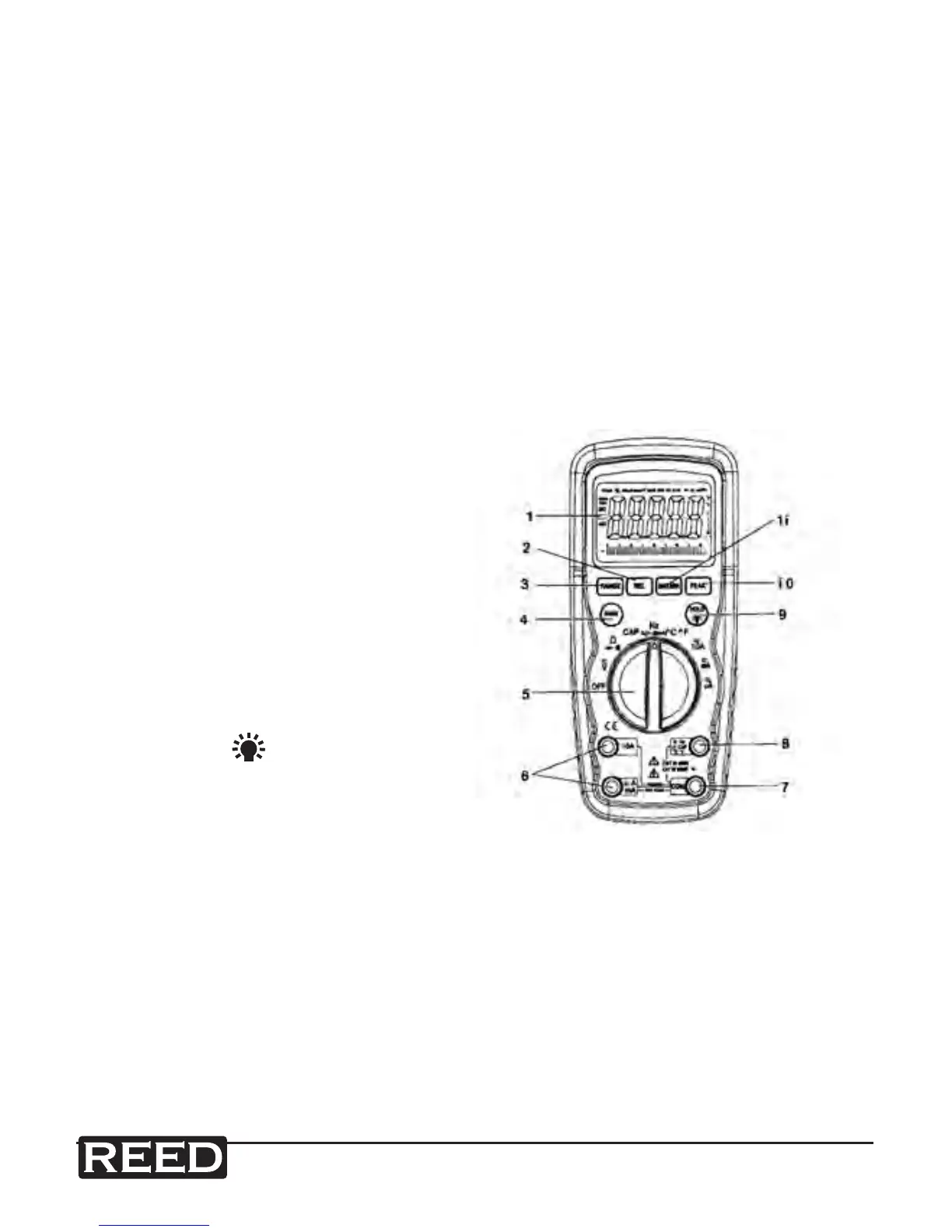

Instrument Description
1 - 40,000 count LCD display
2 - REL button
3 - RANGE button
4 - MODE button
5 - Function switch
6 - mA, µA and 10A input jacks
7 - COM input jack
8 - Positive input jack
9 - HOLD and (Backlight) button
10 - PEAK button
11 - MAX/MIN button
Note: Tilt stand and battery compartment are on back of unit.
