Reel Rollers REVOLUTION 26 - Mower Components and Packaging; Reel Mower General Arrangement; Contents of the Carton

5
(Reel Rollers Superstore – 2333 Peachtree Industrial Blvd, Buford, Georgia 30519 – www.reelrollers.com)
019116 R/MWR MAS 660 RRR H USA BLK- Jan 24

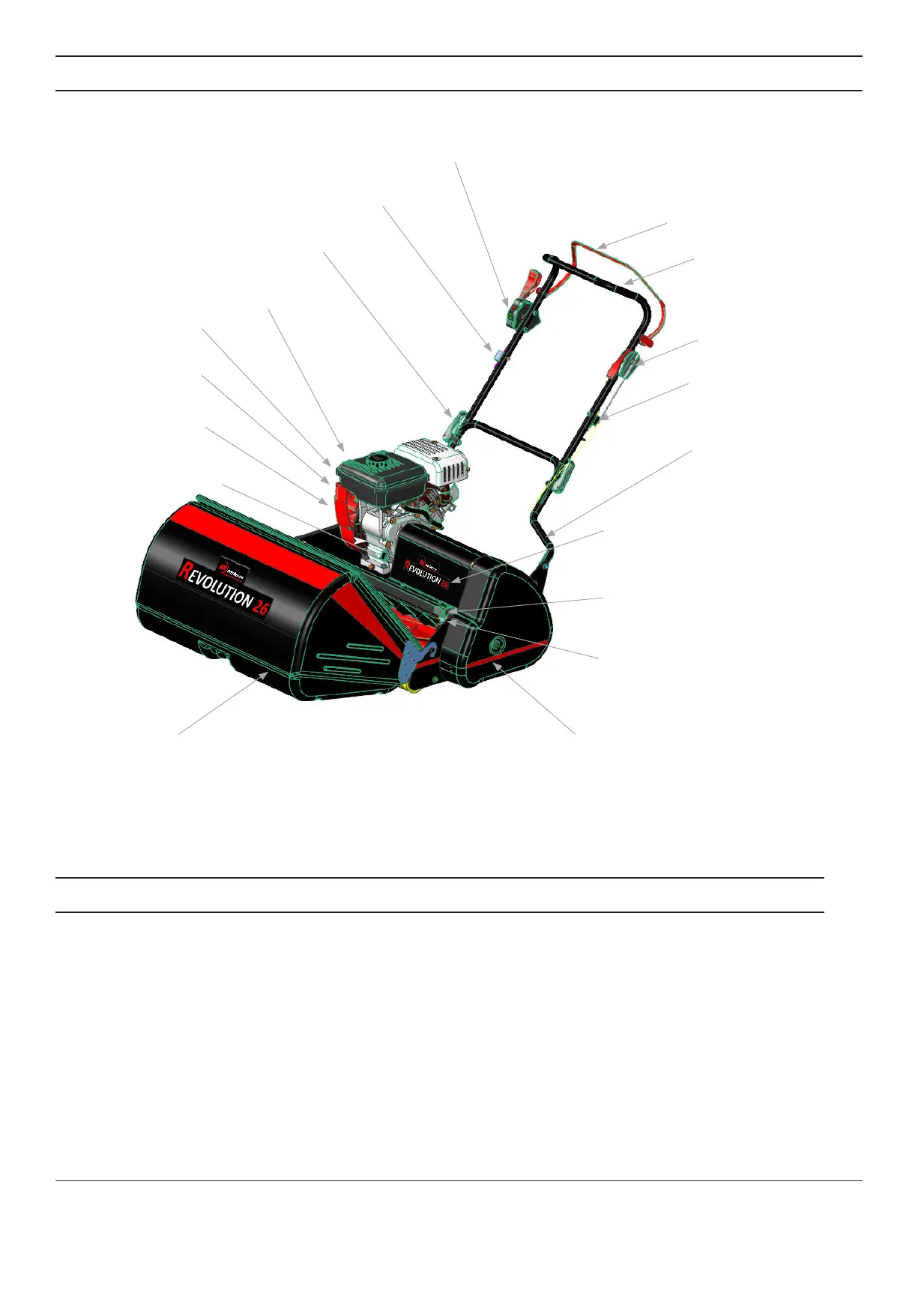

Reel Mower General Arrangement
Cutting Reel clutch lever
Ground Speed lever
Upper handle
Throttle lever
Roller clutch cable
adjuster
Lower handle
Shaft cover
Cutting height
adjustment
knob
Reel to bed knife
adjuster – not visible
Chain cover
Cuttinng Reel clutch cable adjuster
Folding Handlebar lever
Low oil safety switch
- not visible
Choke control
- not visible
Pull start cord
- not visible
Ignition switch
- not visible
Engine oil ller plug
Grass Catcher
Contents of the Carton
In the carton you will nd…
• One reel mower— assembled.
• One grass catcher.
• Upper and lower handle assembly.
• Owner’s Manual— this publication.
• Engine Owner’s Manual.
• The Express Warranty card.
• 4 Plastic cable ties.
• 6mm nuts and bolts for clutch cable adjusters.
