CONTROL UNIT SERIES AUS X
22 8540643 - 26/08/2016 Rev.13

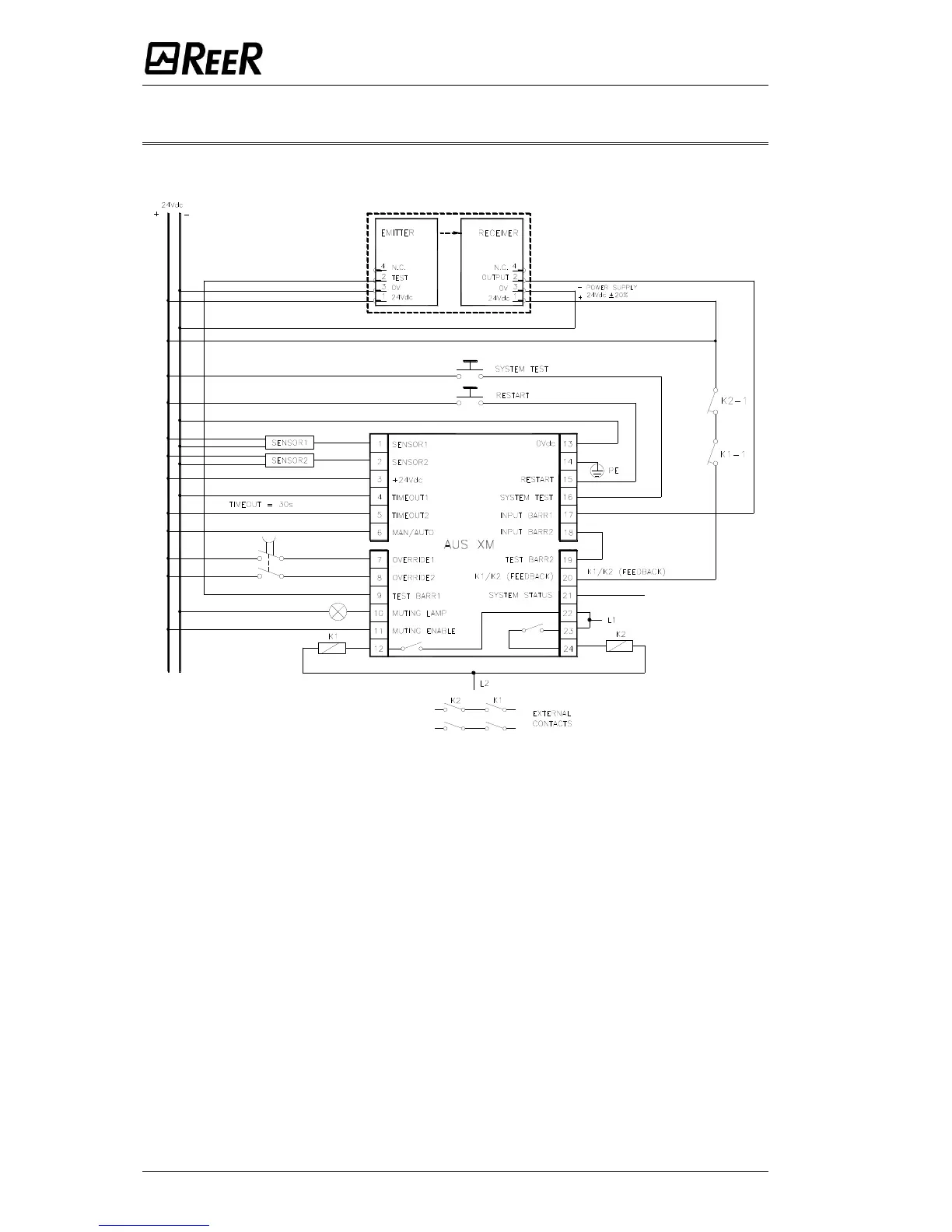

CONNECTION OF AUS XM WITH 1 COUPLE OF ULISSE/ILION PHOTOCELLS
(MANUAL MODE, WITH K1K2 EXTERNAL CONTACTORS, TIMEOUT MUTING = 30s)
Figure 14
