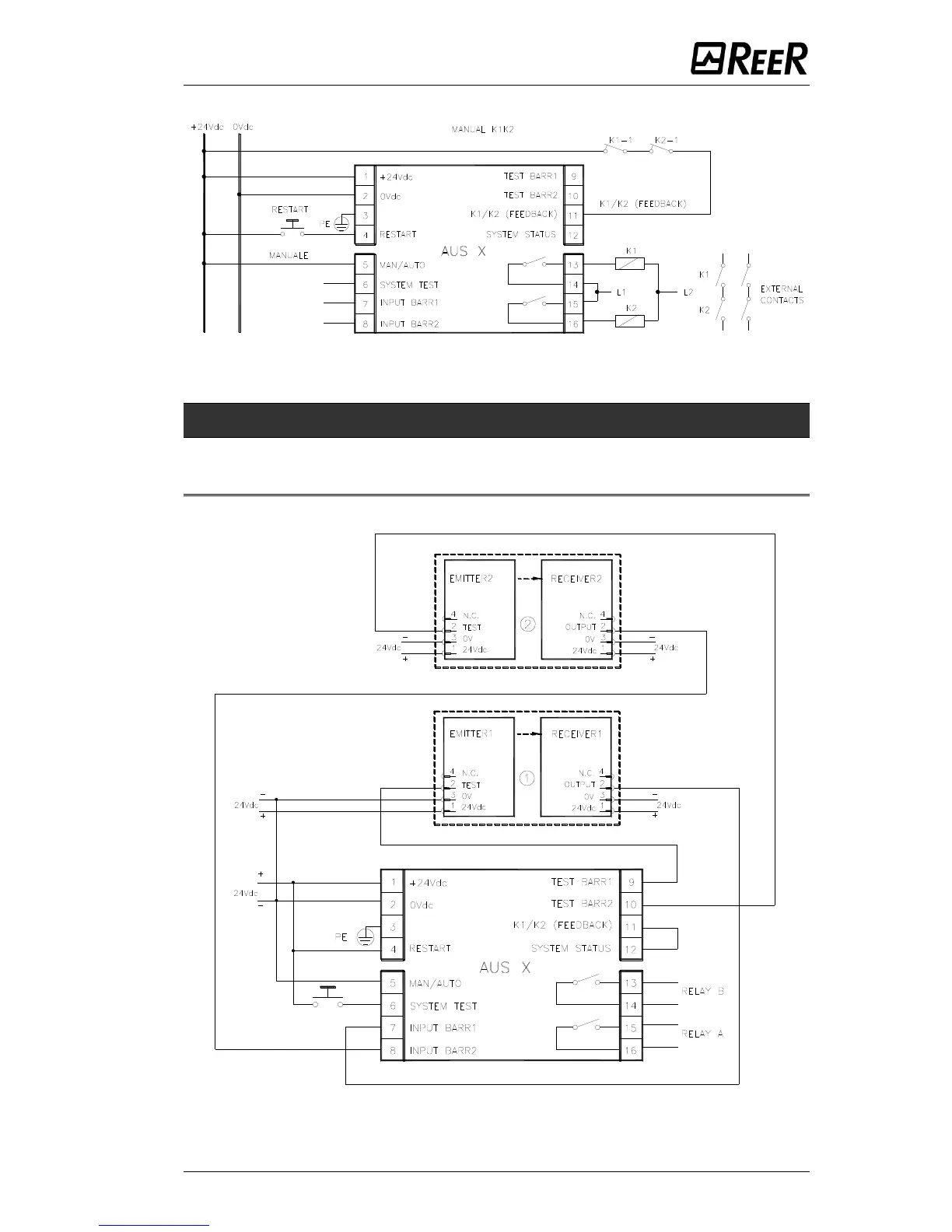

CONTROL UNIT SERIES AUS X
8540643 - 26/08/2016 Rev.13 7
Figure 4
Manual functioning with K1K2 relays
CONNECTON EXAMPLES
CONNECTION OF AUS X WITH 2 COUPLES OF ULISSE/ILION PHOTOCELLS
(WITHOUT K1K2 EXTERNAL CONTACTORS)
Figure 5
