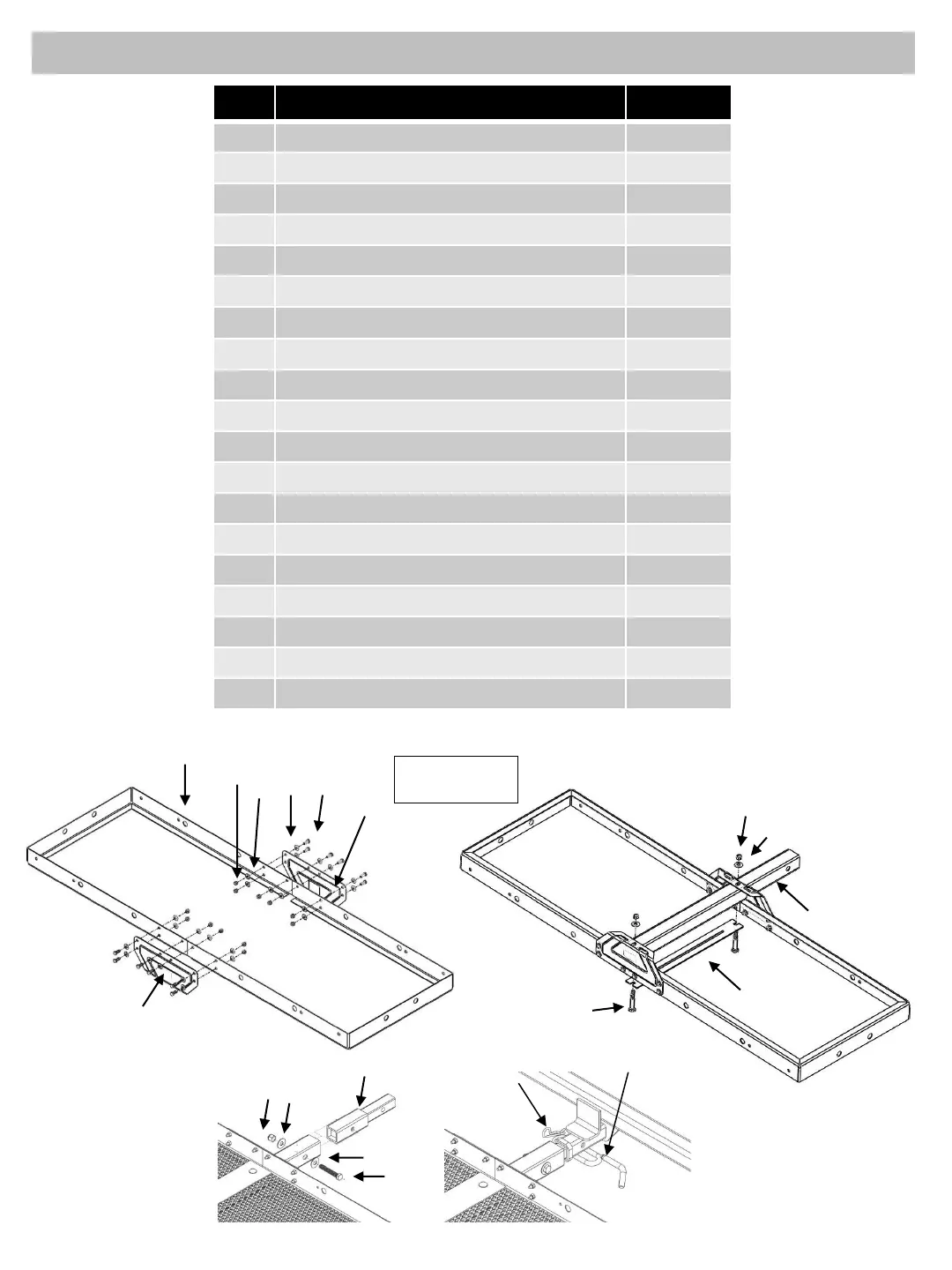

Reese Explore 10415 - Parts List

Parts List
Part
Description Quantity
A
Hex Bolt, 1/4” x 3/4” 12
B
Carriage Bolt, 3/8” x 3” 2
C
Hex Bolt, 1/2” x 3” 1
D
Hex Lock Nut, 1/4” 12
E
Hex Lock Nut, 1/2” 1
F
Hex Nut, 3/8” 2
G
Flat Washer, 1/4” 24
H
Flat Washer, 1/2” 2
I
Flat Washer, 3/8” 2
J
Hitch Pin, 5/8” (Not Shown) 1
K
Hitch Pin, 1/2” 1
L
Clip 2
M
End Plate 1
N
End Plate w/ Shank hole 1
O
Center Plate 1
P
Shank 1
Q
Adaptor 1
R
Basket Frame 2
S
Reflective Tape (Not Shown) 2
R
A G
D
G
N
M
B
F
I
O
P
Mesh removed
for clarity
Q
E
H
H
C
K
L
