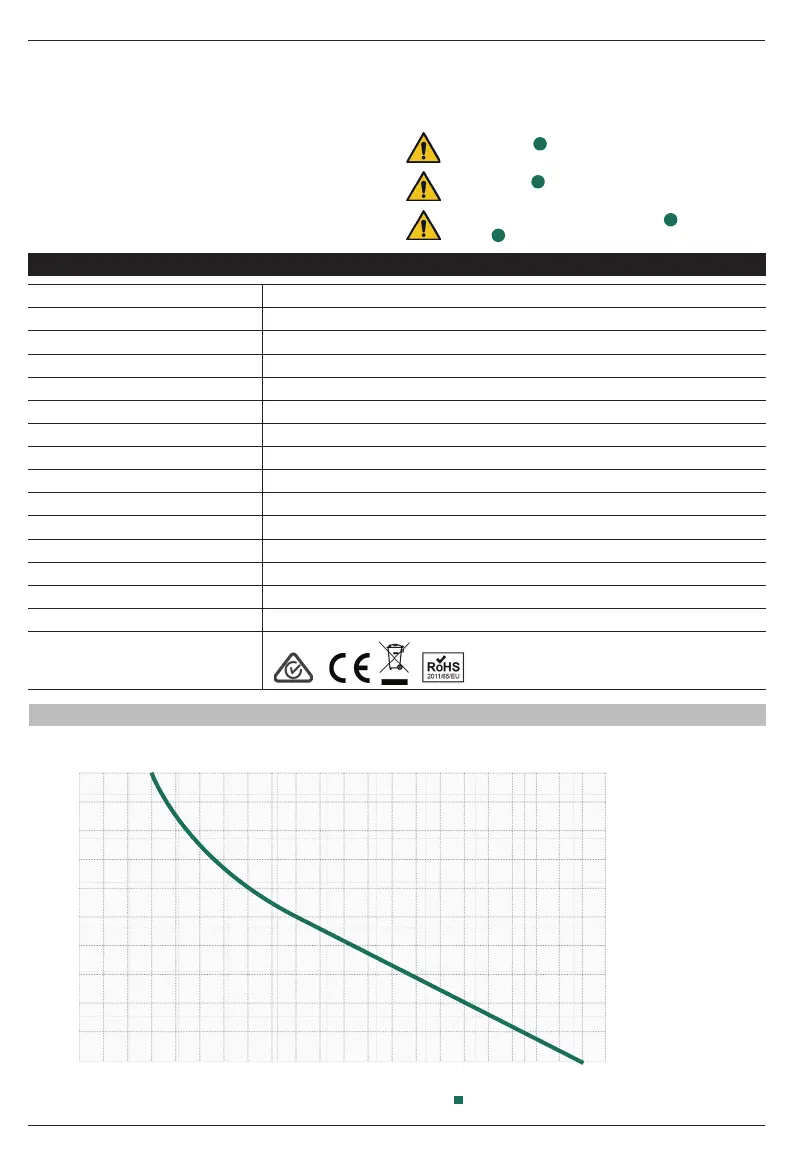

Refco Combi 3004146 - Technical Data

Instruction manual Combi English
3
DO NOT use tools to connect the tubing.
DO NOT operate this product in ambient temperatures below
5 °C (41 °F).
DO NOT operate with incoming water above a temperature of
40 °C (104 °F).
CAUTION: Do not allow any chemicals to come in contact with
this condensate pump. Please remove the pump and water sensor
before using any coil cleaning solutions and other chemicals. Flush
the evaporator coils with water before reinstalling the condensate
pump and water sensor.
Technical data
Maximum󰊠owrate: 42 l/Hr. (11 GPH)
Maximumsuction: 3 m (9.80 ft.) self priming
Maximumhead: 20 m (65.60 ft.)
Maximumhorizontalrun: 100 m (330 ft.) at 0 head and 0 suction
Sound: 20dBAat1mDINENISO3741:2011/DINENISO3744:2010
Voltage: 100 ~ 240 VAC 50/60 Hz auto sensing universal power input
Power: 8W during maximum operation at 110V
Alarmrelay: 10 Amps contacts with integrated replaceable 10A fuse 5 × 20 mm
Weight: 1‘000 g (2.2 lb.)
Dischargestartube: 6.25 mm I.D. (1/4“) × 1 m (3.3 ft.)
Packagingdimensions: 250 x 340 x 54 mm (9.9 x 13.4 x 2.1 inches)
Bulkpackdimensions: 10 Pcs dimensions are 590 x 265 x 365 mm (23.2 x 10.4 x 14.4 inches)
Color: RAL #7040 Grey and RAL #1023 Yellow
Protection: Fully potted, IP-44
Operationtemp: Ambient 5°C to 40°C (41°F to 104°F) / Water 5°C to 40°C (41°F to 104°F)
Compliance:
Power cable
11
must not be entered with a tensile
load.
Alarm cable
12
and power cable must be
completely pressed into the jack.
Only use the original power cable
11
and alarm
cable
12
.
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44
0 1 2 3 4 5 6 7 8 9 10
Capacity l/Hr
Capacity US G/Hr
Vertical lift / head pressure m
20
18
16
14
12
10
8
6
4
2
0
Gobi II & Combi at full power
60
50
40
30
20
10
0
Vertical lift / head pressure ft.
Cappacity
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44
0 1 2 3 4 5 6 7 8 9 10
Capacity l/Hr
Capacity US G/Hr
Vertical lift / head pressure m
20
18
16
14
12
10
8
6
4
2
0
Gobi II & Combi at full power
60
50
40
30
20
10
0
Vertical lift / head pressure ft.
Ensure the evaporator coils are free of chemicals before reinstalla-
tion of the REFCO Combi pump.
CAUTION: This appliance incorporates an earth connection for
functional purposes only.
