Instruction manual Combi English
5

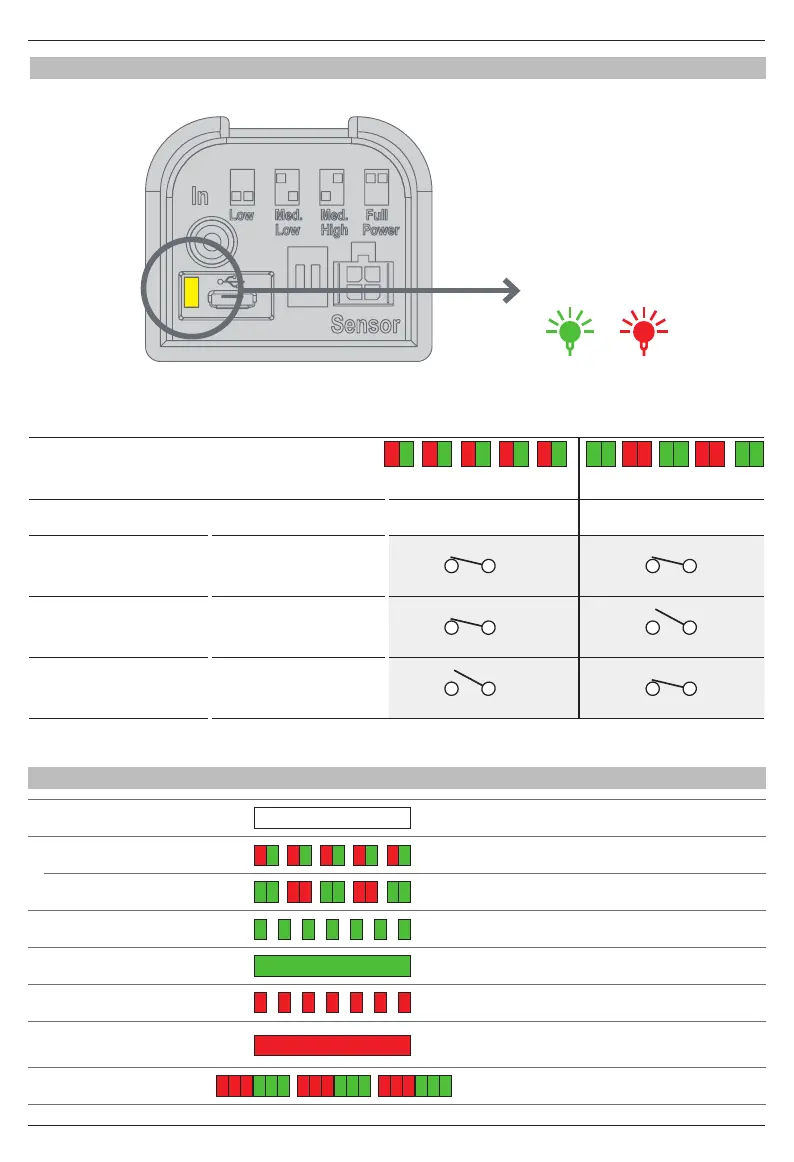

LED alarm relay indications
LED indications in operation
Start up sequence
Pump status Condensate level Default operation Peripheral Mode
Not powered N/A
Powered Below alarm level
Powered Alarm-activated
(normally closed) (normally open)
No power
Pump is miswired or no incoming voltage. Problem
with A/C system or alarm is miswired.
Start up LED sequence
(default mode)
Alternatingred/green󰊠ashes5xonlythenstopsand
goes to standby mode.
Start up LED sequence
(peripheral mode)
Alternatingred/green󰊠ashes5xonlythenstopsand
goes to standby mode.
Standby mode –
waiting for water
Blinking green continuously.
Pumping water
Solid green. Running in low, med low, med high,
orhighpowercon󰊟g.normaloperation.
High water level mode Blinking red. Running above high water level.
Alarm mode –
relay activated
Solid red. Pump cannot keep up with water input. To
preventwaterover󰊠owbreakpowertoA/Cuntilwater
level reduces.
Reconfi gure code
Pumphashad3extralongruncycles,recon󰊟gure
dip- switches for more capacity.
Or
LED alarm relay operation table
❋Alarmrelayoperationisusercon󰊟gurableseepage11❋
NC COM
NC COM
NC COM
NC COM
NC COM NC COM
NC COM
NC COM
NC COM
NC COM
NC COM NC COM
NC COM
NC COM
NC COM
NC COM
NC COM NC COM
