HVAC/R
Service Products
REFCO Manufacturing Ltd. Telefon +41 41 919 72 82
Industriestrasse 11 Telefax +41 41 919 72 83
CH-6285 Hitzkirch (Switzerland) info@refco.ch www.refco.ch
DIGIMON Instruction manual
for the 2-way digital manifold
DIGIMON
Important
Read this manual carefully and familiarise yourself with the specifi-
cations and operation of the REFCO DIGIMON digital manifold prior
to use. These instructions provide important information regarding to
the operation and service of the manifold.
Purpose and use
The manifold has been designed specifically to measure pressure and tem-
perature in refrigeration equipment. For use only by trained technicians.
The manifold must not be used for other than refrigerant applications.
The manifold is not suitable for other liquids or gases except those
indicated on the display.
The manifold must not be used with pressure higher than 60bar /
870psi / 6000kPa / 6MPa.
The manifold cannot be used as a pressure regulator, especially not in
use with nitrogen N2.
The manifold cannot be used with ammonia (NH3 / R717).
Do not expose the manifold to rain or wet conditions.

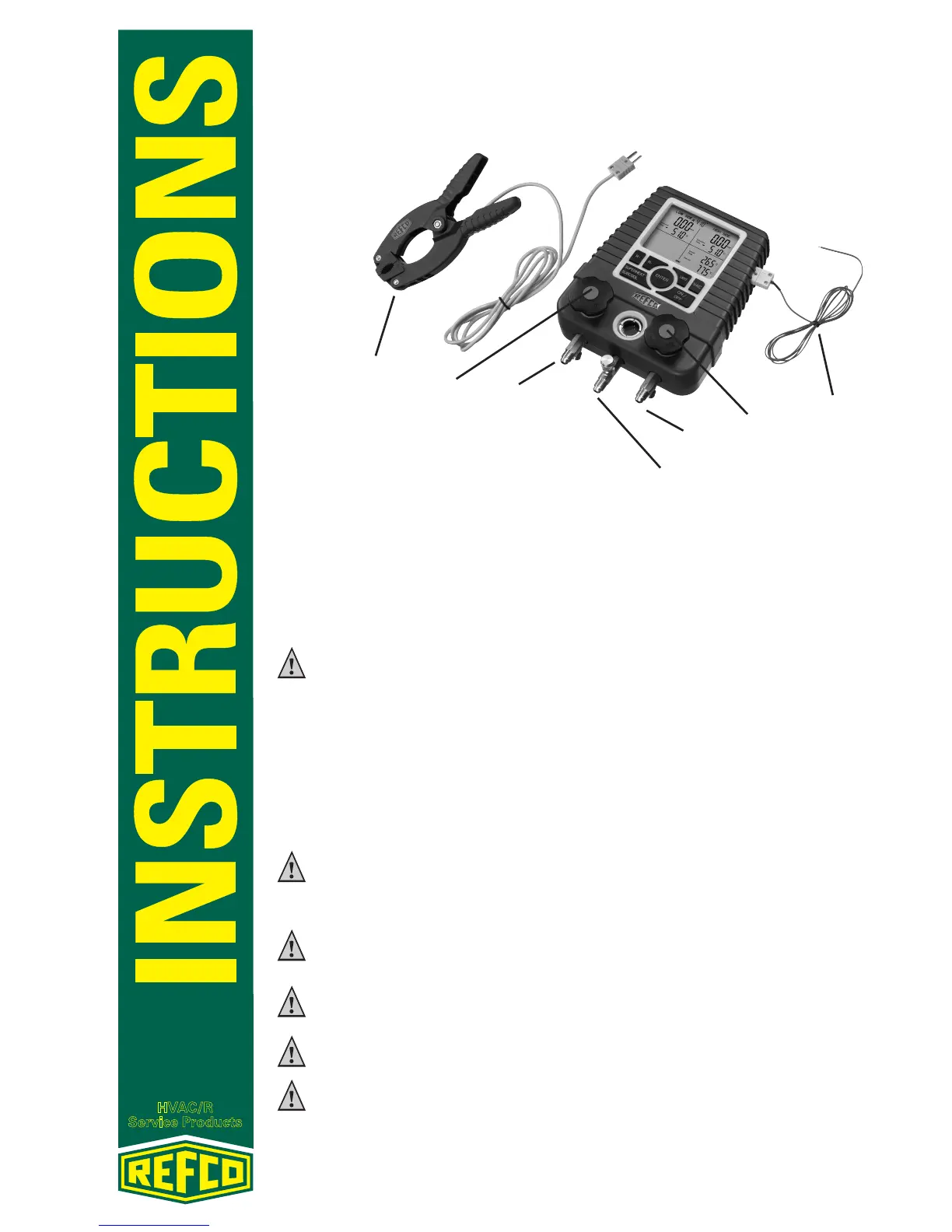

1) Low pressure anchor ¼“ SAE
2) High pressure anchor ¼“ SAE
3) Low pressure valve (blue)
4) High pressure valve (red)
5) Vacuum + refrigerants anchor ¼“ SAE
6) External K-type thermocouple
7) Clamp thermocouple K- type, P/N 4681466 (optional)
