Refco ENVIRO-DUO - Electrical Diagram

English Instruction Manual ENVIRO-DUO
11

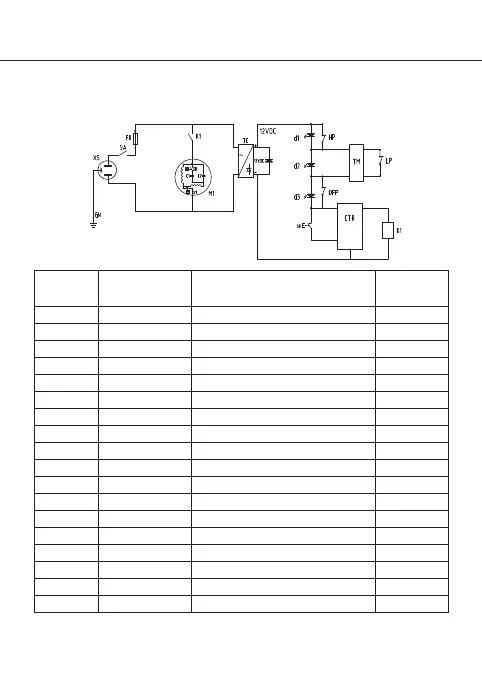

6. Electrical Diagram
ITEM
Graphics
Code
Description
Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
XS
SA
FR
M1
SR
C1
C2
ST
TC
HP
LP
OFP
d1,d3
d2
SC
SB
CTR
K1
Power Outlet
Power Switches
Overload Protection Device
Compressor Motor
Centrifugal Switch
Start Capacitor
Running Capacitor
Motor Thermal Protectors
Electronic Transformer
High Pressure Switch
Low Pressure Switch
80% O.F.P. Switch
Red Indicator
Green Indicator
Option Switch
Start Button
Control Module
Relay
