Reflex GYRO SPRINT-IQ User Manual

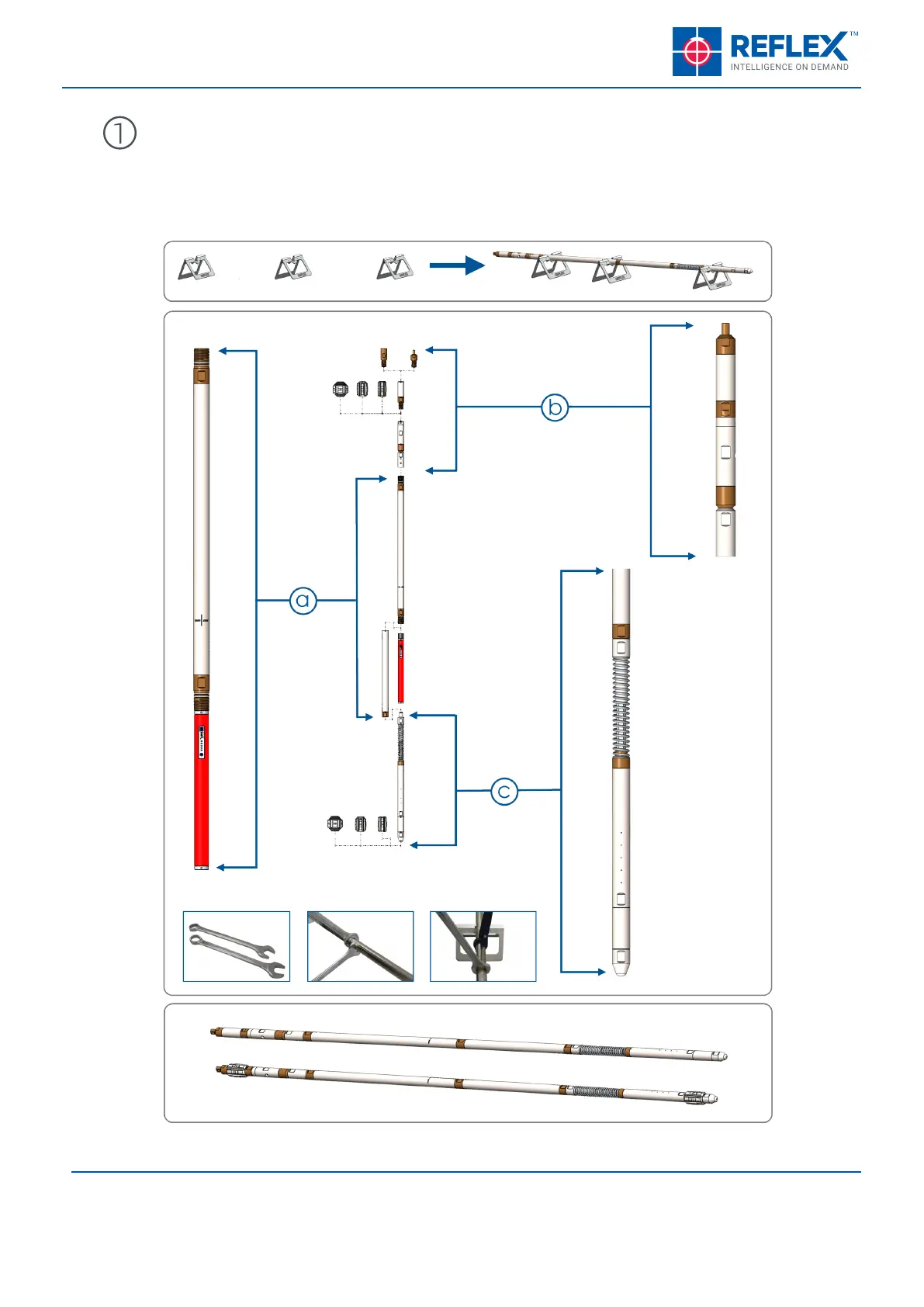

Set up V Stands and assemble as follows:
a. IMU Battery sleeve onto battery
b. Swivel Sub to adaptor (Centraliser optional)
c. Bump Sub to IMU to Swivel Sub, and tighten
The information contained in this document is believed to be accurate at the time of printing; however, Imdex Limited, its subsidiaries, agents, distributors or resellers
assume no responsibility or liability for the accuracy or completeness of, or consequences arising from, such information and the use of such information. Changes,
typos, and technical inaccuracies will be corrected in subsequent publications. This publication is subject to change without notice. Determination of the suitability of
any information or product for use contemplated by any user, and the manner of that use is the sole responsibility of the user. REFLEX GYRO SPRINT-IQ™ REFLEX™
(Undefined variable: Variables.CompanyAddress)
2
© Imdex Limited November 2018
104121 RTI-MAN-0170 V1
REFLEX GYRO
| ASSEMBLY
SPRINT-IQ™

Reflex GYRO SPRINT-IQ Specifications

Operating Environment

operational temperature	0 C to 70 C
depth	3000 m
shock	500 g

Battery

battery type	Ni-MH Rechargeable batteries
operating time	15 hours
field changeable	Yes, 2 batteries supplied per kit

Weight and Dimensions

outer diameter	42.5 mm
length	1400 mm
weight	8 kg
