Reflex GYRO SPRINT-IQ User Manual

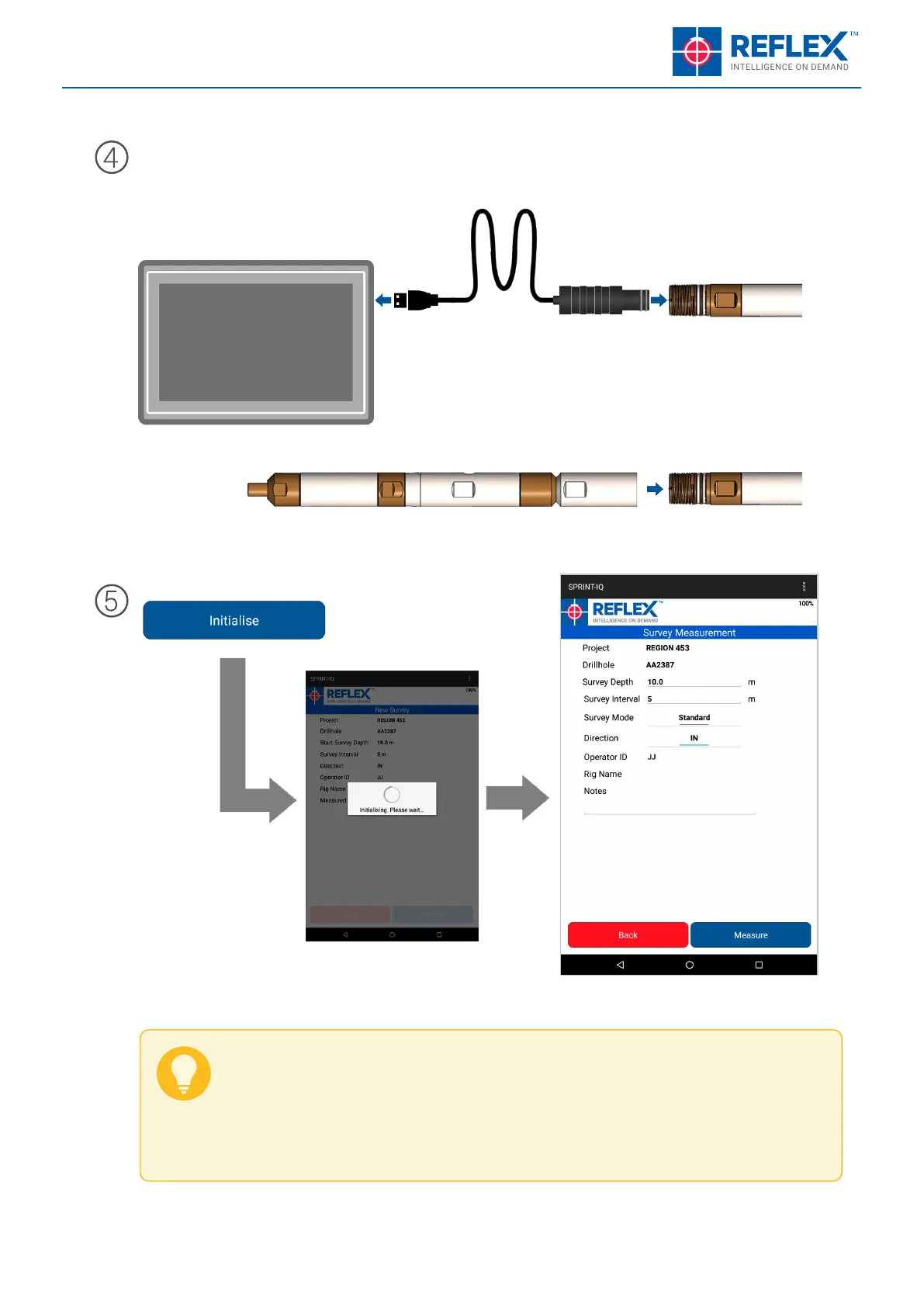

Connect the tablet to the REFLEX GYRO SPRINT-IQ™
Remove the REFLEX GYRO SPRINT-IQ™ swivel sub
Push the HTMS IR Adaptor into the REFLEX GYRO
SPRINT-IQ™
Connect the USB to the tablet
Ensure you have allowed enough time for theREFLEX GYRO SPRINT-IQ™ to be
attached to the swivel and be ready to commence a survey.
If using the ROTA-LOCK OVERSHOT, the battery must be disconnected before
initialising and commencing a new survey.
6
© Imdex Limited November 2018
104121 RTI-MAN-0170 V1
REFLEX GYRO
| INITIALISE
SPRINT-IQ™

Reflex GYRO SPRINT-IQ Specifications

Operating Environment

operational temperature	0 C to 70 C
depth	3000 m
shock	500 g

Battery

battery type	Ni-MH Rechargeable batteries
operating time	15 hours
field changeable	Yes, 2 batteries supplied per kit

Weight and Dimensions

outer diameter	42.5 mm
length	1400 mm
weight	8 kg
