30 REFUsol 08K ... 23K REFU Elektronik GmbH

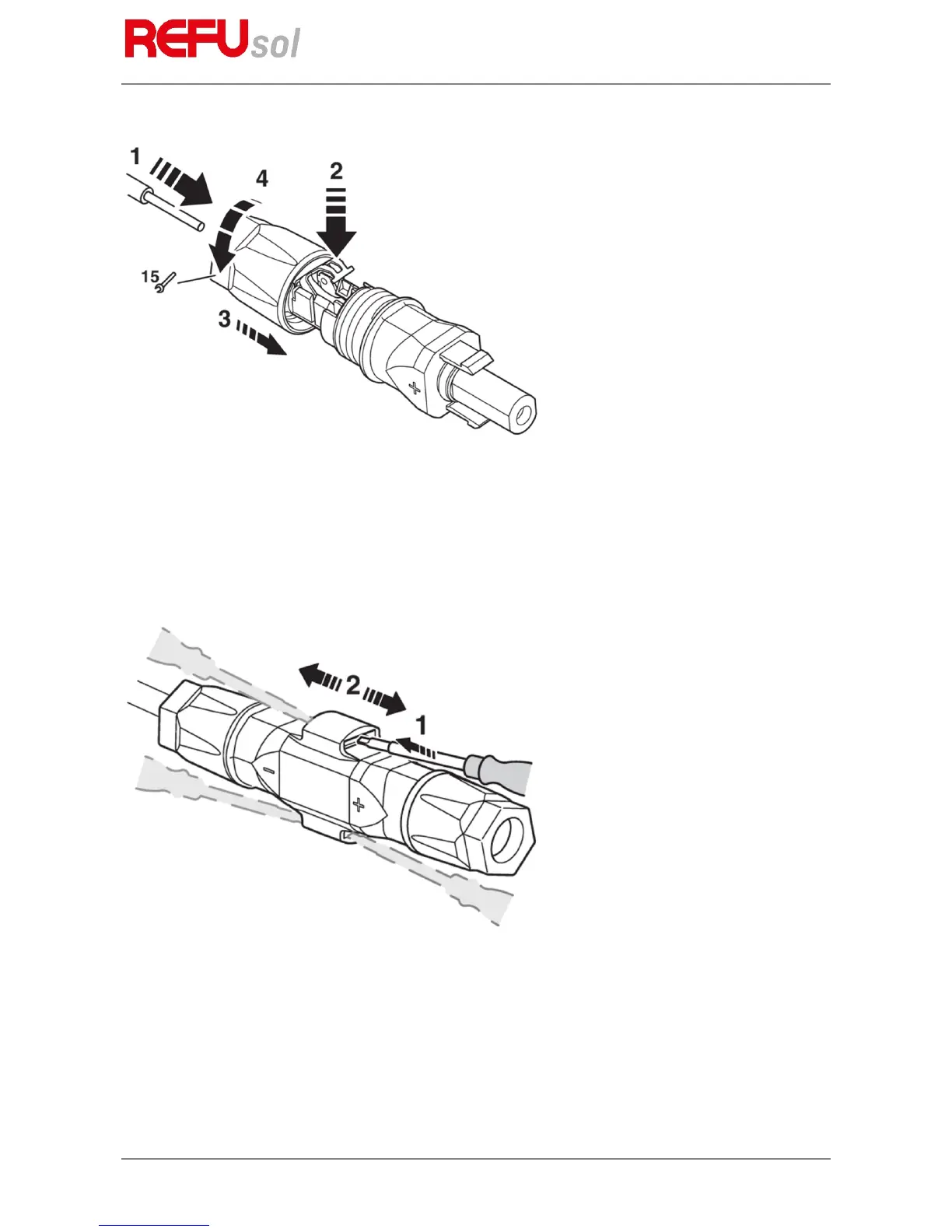

Fig. 14: Connect cable
4.13.2.2
Disconnect connector
A slit screwdriver is required with 3 mm wide blade (e.g. SZF 1-0,6X3,5, 1204517).
1. Enter screwdriver as demonstrated in picture below.
2. Leave screwdriver attached and separate bush and plug from one another.
Fig. 15: Disconnect connector
4.13.2.3
Remove cable
1. Unscrew cable screwing.
2. Enter screwdriver as demonstrated in picture below.
3. Pry open connection and separate barrel and insert from one another.
4. Open spring with screwdriver. Remove cable.
