8.1.3 Assembling of the Sensor Plug
⌀0.16″ – 0.31″
0.6 ft lbs
2 ft lbs
0.79″
AWG 26 – 20
0.47″
1.3″
0.39″
8.1.4 Connection of the Sensor at the Solar Inverter

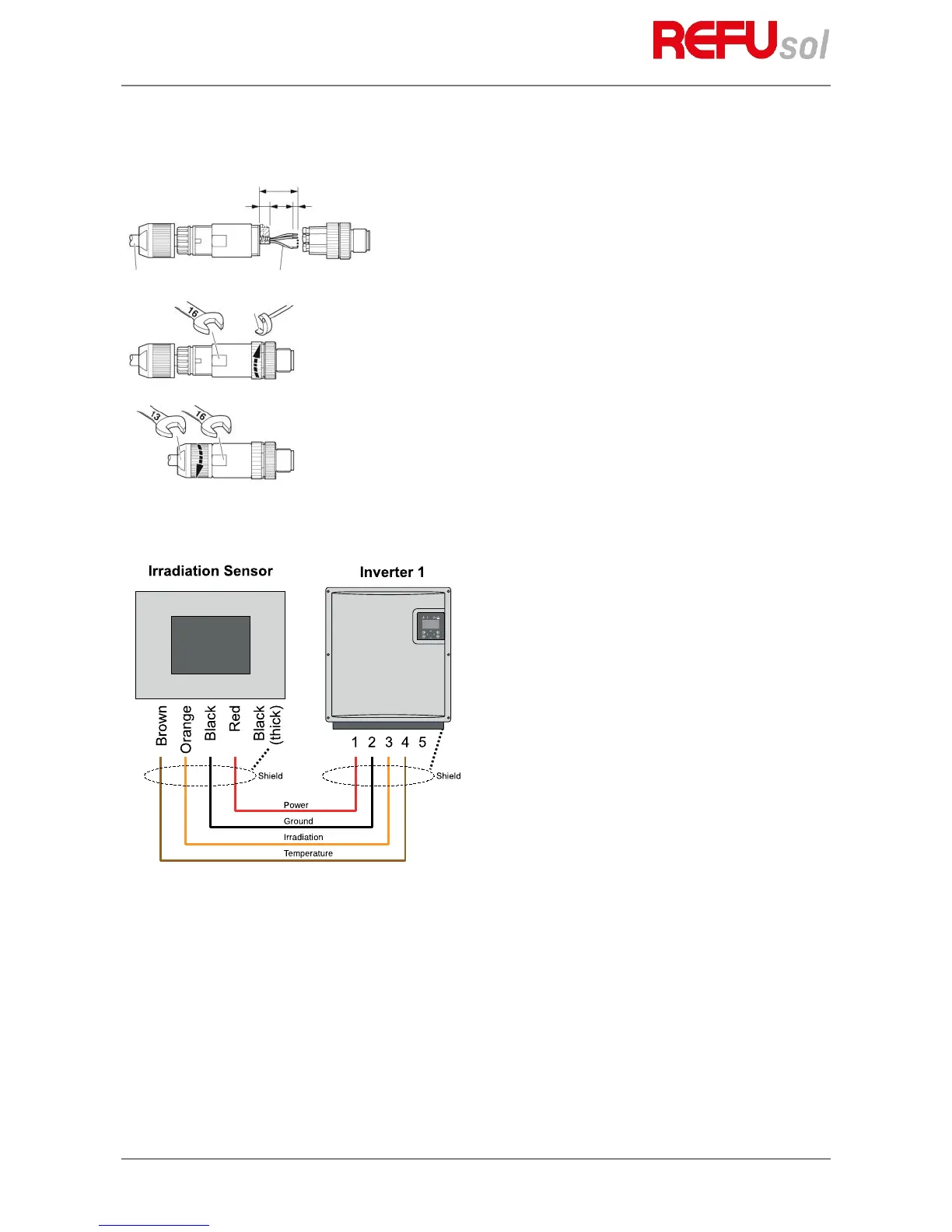

Fig. 27: Standard connection at a solar inverter (not applicable at AFCI variant)
