Indoor Blower Motors
v0.2
ECM 2.3/2.5 ECM 2.0

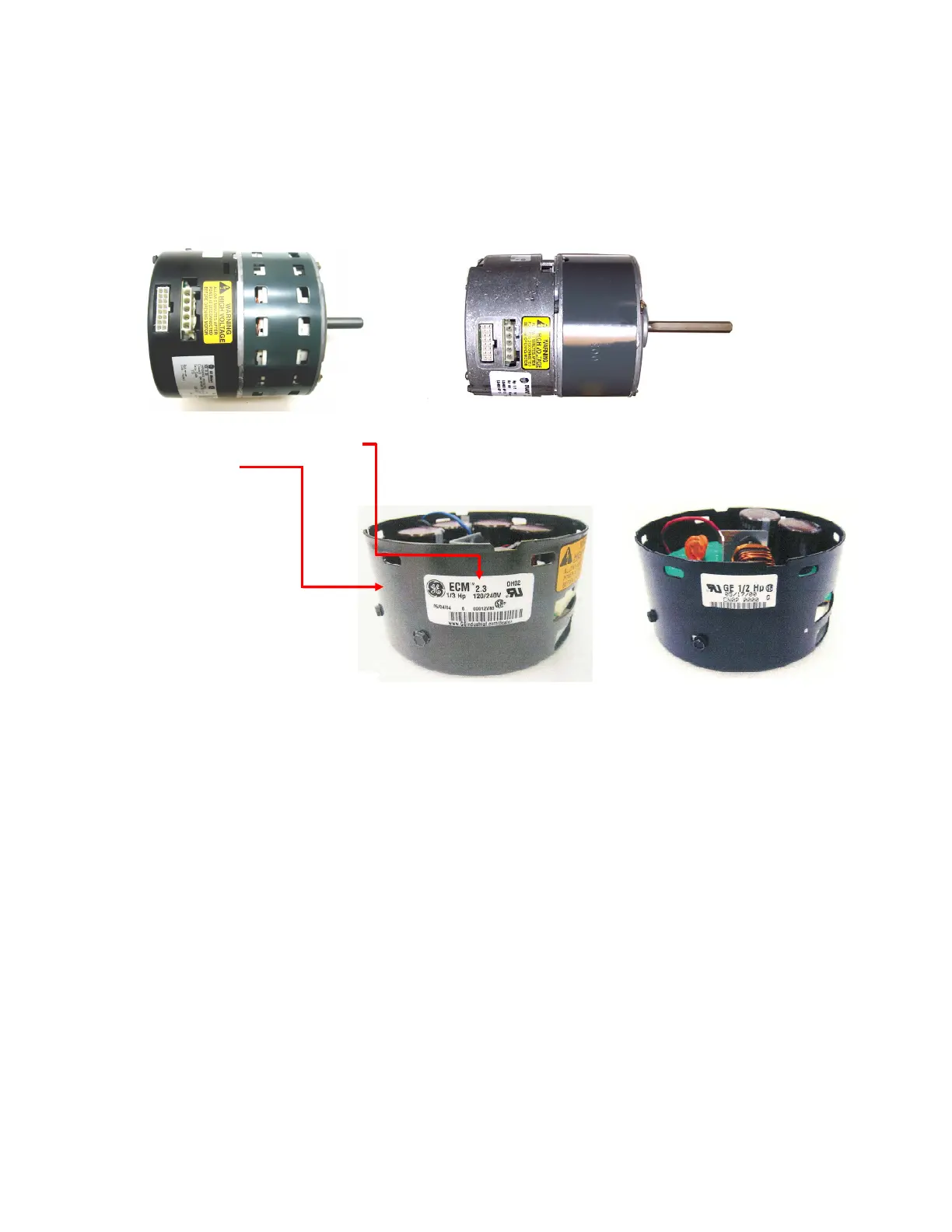

Two changes to the 2.3/2.5 model motors
1. Model ID on the nameplate
2. Gray paint
Early models
All current model 2.3/2.5 motors
are labeled as such.
Model 1.0 and 2.0 motors
are no longer in production.
Model 2.0 motors
were not labeled as such. They are the only motor with a round un-painted motor
Early model 2.3/2.5 motors
were not labeled as such. These motors can be identified as follows:
- 2.3 motors will have 10 or mores wires in the 16-pin connector
- 2.5 motors will have 5 or less wires in the 16-pin connector
control with 5-pin and 16-pin connections.
Current Models
GE ECM
by Regal Beloit
model designations
Motor Identification Chart
Model 1.0 motors
were not labeled as such. They are the only motor with a square motor control.
